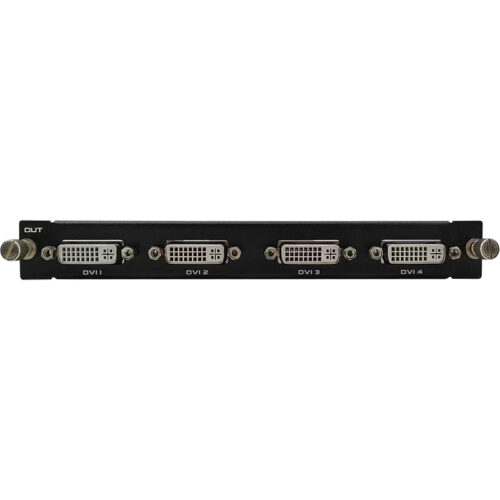

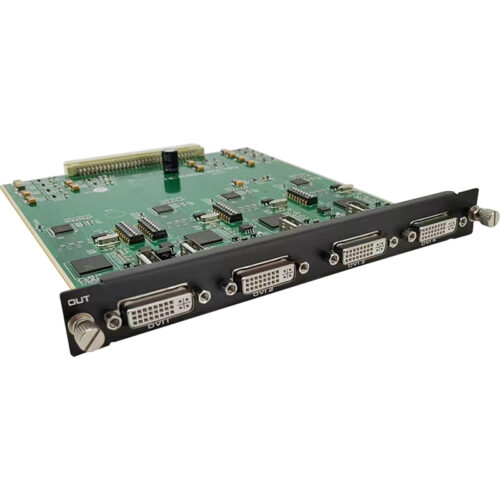

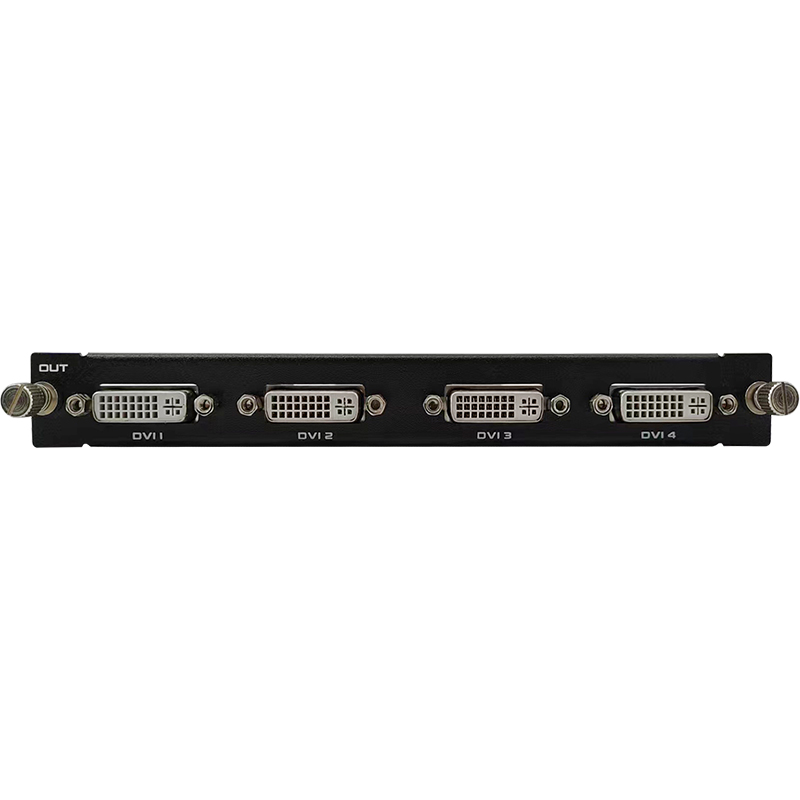

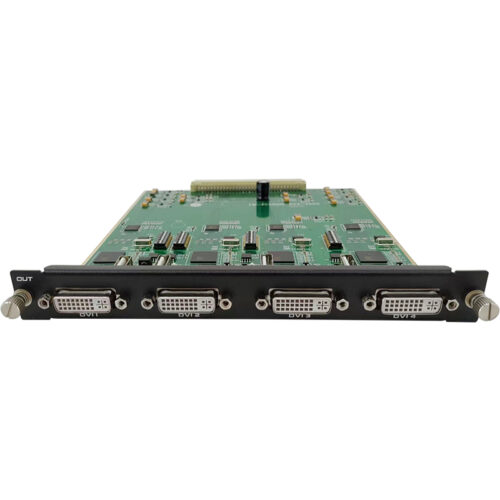

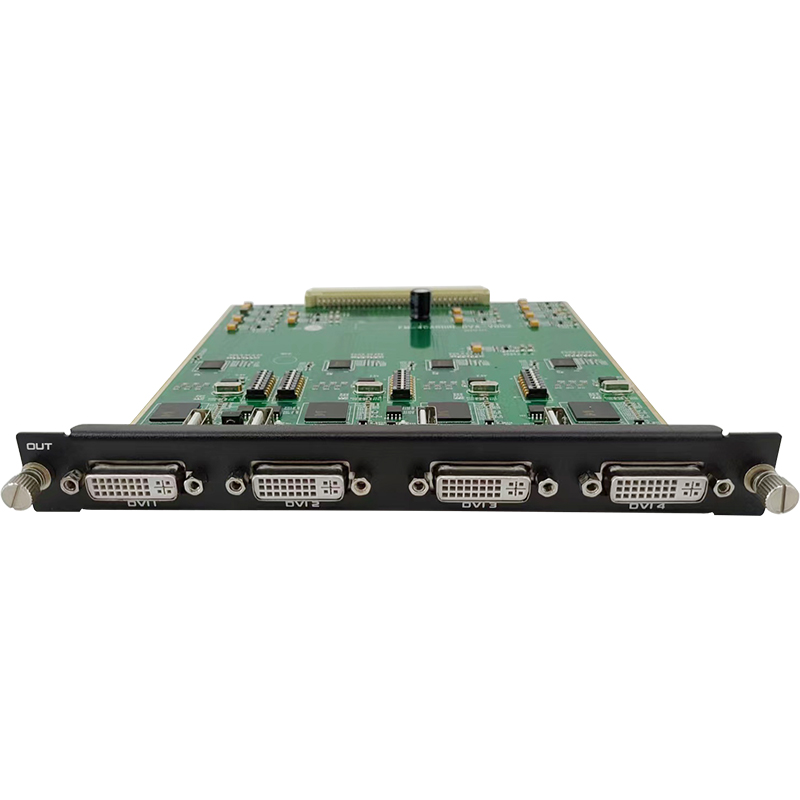

DVI Output Board FT-4ODMUS

The FT-4ODMUS is a 4-channel DVI output board that supports 1080P resolution and includes features like seamless switching, adjustable resolution, and image stitching. It is compatible with HDMI1.3a, HDCP1.4, and DVI1.0 standards, and supports up to 25 meters of output with independent audio and hot-swap functionality.
Categories:
Get Quote
Category Tags , , , ,
Description
  1. FT-4ODMUS is a 4-channel DVI audio and video signal output board that supports digital high-definition 1080P signals. It has a highly integrated board design and can be equipped with any number of boards as needed, which brings great convenience to application and maintenanc
  2. Support 4-channel DVI-D female interface
  3. Support fast and seamless switching, no flicker, no black screen
  4. Support power-off on-site switching memory protection function, unique ESD static protection function
  5. Compatible with HDMI1.3a standard, HDCP1.3 protocol, DVI1.0 protocol
  6. Support line doubling function, maximum resolution supports 1920*1080@60hz
  7. With gain 25 meters long line, with independent audio output
  8. Support adjustable output resolution and support image parameter modification
  9. Support hot-swap, plug and play, extremely convenient
  10. Support image stitching function
Parameter
Protocol HDMI1.3 standard, HDCP1.4 protocol
Gain 0dB
Pixel bandwidth 165MHz, all digital
Interface bandwidth 2.25Gbps, all digital (total 6.75Gbps, each color is 2.25Gbps)
Maximum supported resolution 1920*1200@60hz
Bit clock jitter (Clock Jitter) <0.15Tbit
Rise time <0.3Tbit (20%--80%)
Fall time <0.3Tbit (20%--80%)
Maximum transmission delay 5nS (±1nS)
Interface 4-way DVI-D female interface
Signal strength T.M.D.S.+/-0.4Vpp
Minimum/maximum level T.M.D.S.2.9V/3.3V
Impedance 50Ω
Maximum DC bias error 15mV
Recommended maximum input/output distance output less than 25 meters, at 1600x1200@60 (it is recommended to use certified HDMI dedicated cables, such as Molex TM wire)
Product weight about 0.5KG
Maximum power consumption 15W
