DVI Universal Input Board FT-4IDMUS

The FT-4IDMUS is a 4-channel DVI-I seamless input board supporting various signal formats like CVBS, VGA, and DVI, with resolutions up to 1920x1200@60Hz. It features seamless switching, EDID management, and hot-plug support, ensuring reliability and ease of use. Designed for high compatibility and low latency, it offers flexible input options and robust ESD protection.
Categories:
Get Quote
Category Tags , , , ,
Description

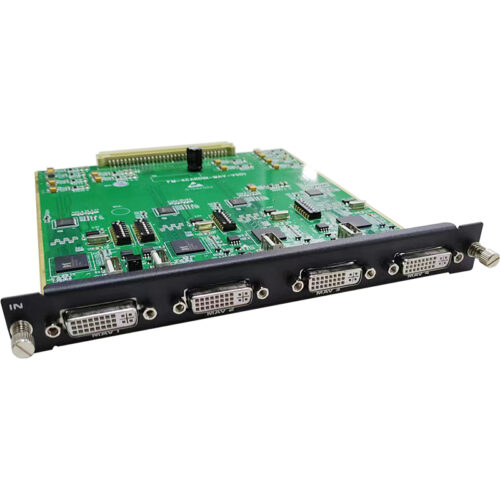

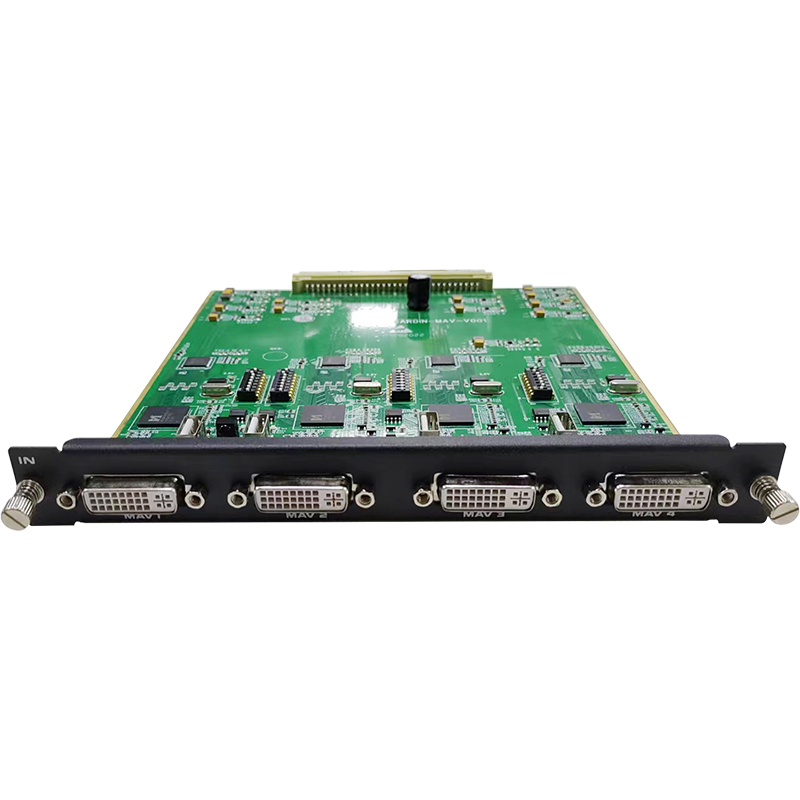

  1. FT-4IDMUS is a DVI-I universal seamless input board with 4 DVI interfaces; supports high-definition CVBS, S-VIDEO, YUV, VGA, DVI signal input in multiple formats; highly integrated board design, the number of boards can be selected as needed, which brings great convenience to application and maintenanc

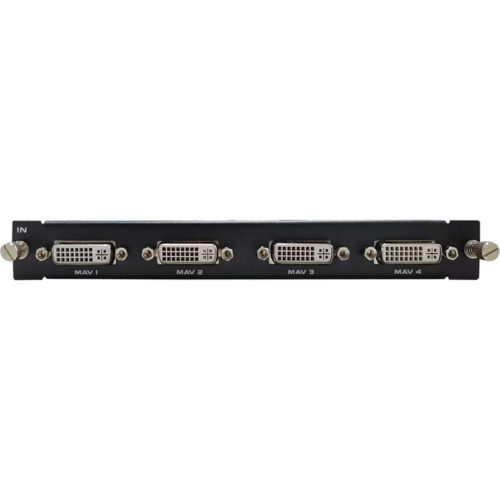

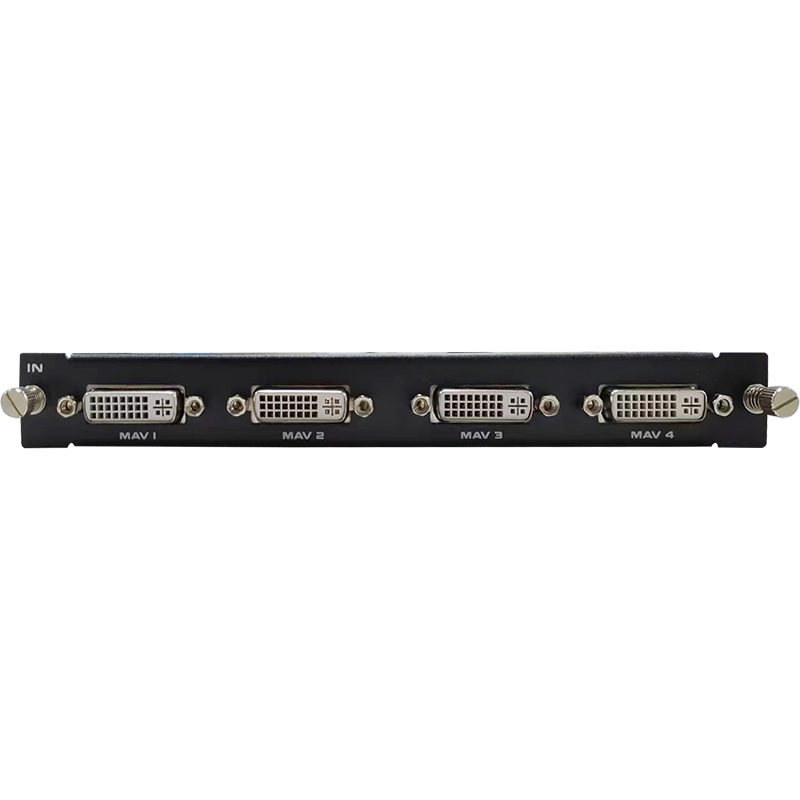

  2. Support 4-way DVI-I female interface
  3. Support fast seamless switching, no flicker, no black screen
  4. Support power-off on-site switching memory protection function, unique ESD static protection function
  5. Support image parameter correction
  6. Compatible with HDMI1.3 and HDCP1.4 standards
  7. The maximum resolution supports 1920x1200@60HZ resolution, with a 20-meter cable length with equalization
  8. Maximum resolution supports 1920x120060HZ ultra-2K resolution, supports high-definition CVBS/S-VIDEO/YUV/VGA/DVI (adapter cable required), and automatically identifies the input signal type
  9. Supports hot plugging, plug and play, extremely convenient
Parameter
Protocol HDMI1.3 standard, HDCP1.4 protocol
Gain 0 dB
Pixel bandwidth 300MHz, all digital
Interface bandwidth 4.5Gbps, all digital (a total of 13.5Gbps, 4.5Gbps for each color)
Maximum supported resolution 1920x1200
Bit clock jitter (Clock Jitter) <0.15 Tbit
Bit rise time (Risetime) <0.3Tbit (20%--80%)
Bit fall time (Falltime) <0.3Tbit (20%--80%)
Maximum transmission delay 5nS (±1nS)
Interface 4-way DVI-I female interface
Signal strength T.M.D.S.+/-0.4Vpp
Minimum/maximum level T.M.D.S.2.9V/3.3V
Impedance 50Ω
EDID Optional default EDID and read function.
Maximum DC bias error 15mV
Recommended maximum input/output distance input less than 20 meters, at 1600x1200@60 (it is recommended to use certified HDMI dedicated cables, such as Molex TM wire)
Product weight about 0.5KG
Maximum power consumption 15W
