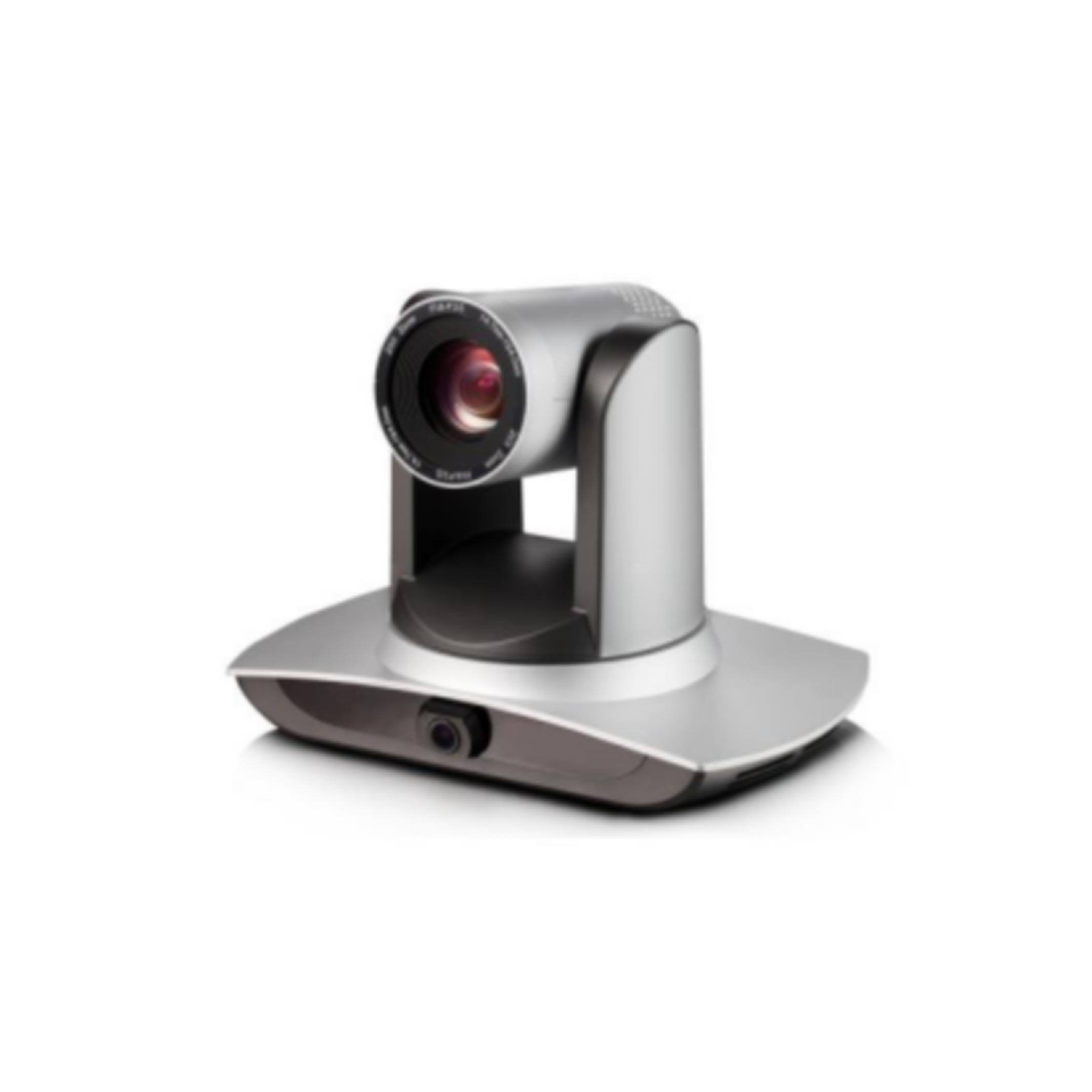

Educational binocular tracking camera FT-ST100

This intelligent camera series provides a comprehensive solution for educational environments, featuring built-in image recognition and tracking algorithms for teachers and students. It supports full-frame image recognition, automatic tracking, and offers multiple video output interfaces. With high-quality CMOS sensors and advanced noise reduction, it ensures clear video and stable performance in various teaching scenarios.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Integrated design: built-in panoramic camera, realizing the integration of panoramic camera and tracking camera
  • Intelligent teaching tracking: built-in leading image recognition and tracking algorithm, without any auxiliary positioning camera or tracking host, it can also achieve fast, stable and accurate tracking of targets
  • Full-frame image recognition: image detection is performed on each frame, and image recognition sensitivity is high. In complex environments, it can accurately distinguish between people and backgrounds, track accurately, and eliminate interference caused by background changes. When there are multiple moving targets, it can still accurately track the correct target with a very low target loss rate
  • Strong anti-interference ability: more and more flexible identification shielding area settings, so that once the tracking target is locked, it will not be affected by interference from other moving targets or projectors
  • Smooth tracking: The motion sensitivity can be adjusted, and small movements of the tracking target and movements such as hands will not cause misoperation of the camera
  • Image adaptation: According to the distance of the tracking target, the tracking camera automatically changes magnification, and the video always maintains the appropriate size and proportion
  • Strong environmental adaptability: The tracking effect is not affected by the size, shape and seat arrangement of the classroom
  • Ultra-wide dynamic exposure function: avoids the problem of darkening of the tracking target under strong light backgrounds such as projectors
  • Multiple tracking modes: support real-time tracking, movie, regional tracking and multiple tracking mode switching
  • Full HD image: using 1/2.8-inch high-quality image sensor, the maximum resolution can reach 1920x 1080, output frame rate up to 60 frames per second
  • Distortion-free lens: 12X/20X optical zoom lens, distortion-free wide viewing angle
  • Low noise and high signal-to-noise ratio: Low noise CMOS effectively guarantees the ultra-high signal-to-noise ratio of the camera video, and keeps the picture clean and clear even in ultra-low illumination conditions
  • Multiple audio and video compression standards: support H.264/H.265 video compression, support AAC, MP3, G.711A audio compression
  • Multiple video output interfaces: support HDMI, SDI, USB3.0 and LAN (100M. multiple interface methods to output video
  • Multiple network protocols: support ONVIF, GB/T28181, RTSP, RTMP protocols; support RTMP push mode, easily connect to streaming media servers (Wowza, FMS.; support RTP multicast mode, support network full command VISCA control protocol
  • Multiple control protocols: support VISCA, PELCO-D, PELCO-P protocols, support automatic identification protocol
  • Support PoE: that is, one network cable can simultaneously transmit power supply, control, and video signals, thereby simplifying wiring installation
  • Super silent PTZ: adopts high-precision stepper motor and precision motor drive controller to ensure smooth and noise-free operation of the PTZ
  • Diversified installation: free choice of installation positioning, the teacher machine supports upright and inverted installation, and the student machine needs upright installation
  • Multiple application places: teaching recording and broadcasting, remote interactive teaching and other application scenarios
    • Parameter
    Image sensor 1/2.8 inch high quality CMOS sensor
    Effective pixels 2.07 million, 16:9
    Video format SDI, HDMI interface video format
    1080P60/50/30/25/59.94/29.97 720P60/50 /59.94
    Lens optical zoom Teacher camera: 12 times f=4.1~49.2mm: Student camera: 20 times f=5~91.5mm
    Viewing angle Teacher: 7.5° (narrow angle)~78.4° (wide angle); Student: 3.9° (narrow angle)~67.4° (wide angle)
    Aperture coefficient Teacher: F1.8~F2.68; Student: F1.8~F2.9
    Digital zoom X10
    Minimum illumination  0.5Lux (F1.8, AGC ON)
    Digital noise reduction 2D & 3D digital noise reduction
    White balance manual / automatic / one-button white balance / 3000K / 3500K / 4000K / 4500K / 5000K / 5500K / 6000K / 6500K / 7000K
    Focus automatic / manual / one-button focus
    Aperture automatic / manual
    Electronic shutter automatic / manual
    Backlight compensation on / off
    Dynamic range off / dynamic level adjustment
    Video adjustment brightness, chroma, saturation, contrast, sharpness, gamma curve
    Signal-to-noise ratio >55dB
    Video compression format H.264, H.265, MJPEG, YUY2, NV12
    Audio compression format AAC, MP3, G.711A
    Network protocol RTSP, RTMP, ONVIF, GB/T28181 and IP VISCA
    Control protocol Protocol: VISCA/Pelco-D/Pelco-P; Baud rate: 115200/38400/9600/4800/2400
    Panoramic camera lens parameters
    Image sensor 1/2.8-inch high-quality CMOS sensor
    Effective pixels 2.07 million
    Lens fixed focus
    Focal length 3.24mm
    Aperture F=2.2
    Field of view (D\H\V) 88°\80°\51°
    PTZ parameters
    Horizontal rotation -170°～+170°
    Pitch rotation -30°～+90°
    Horizontal control speed 0.1 ～100°/sec
    Tilt control speed 0.1～45°/sec
    Preset speed horizontal: 100°/sec, tilt: 45°/sec
    Number of presets Users can set up to 255 presets (10 for remote control)
    Interface function performance
    Video output interface 1 HDMI2.0 interface、1 3G-SDI interface、1 USB3.0 interface
    1 LAN interface 100M network port (10/100 BASE-TX), support POE (802.af)
    Audio input interface 1 dual-channel 3.5mm linear input
    Control interface 1 RS485/RS232: 5pin Phoenix head
    Power interface Input AC110V-AC220V Output DC12V/2.5A
    Power switch support
    Other parameters
    Storage temperature -10℃～+70℃
    Storage humidity  20%～95%
    Working temperature  -10℃～+50℃
    Working humidity  20%～80%
    Dimensions  253.9mmX179mmX144.7mm(width x height x depth)
    Weight  1.50kg
    Usage environment  Indoor
    Donwload
    FT-ST100
    Get Quote

    Your email address will notbe published, Required fields are marked

    Product Related

    4K Ultra HD Camera FT-W25-HB

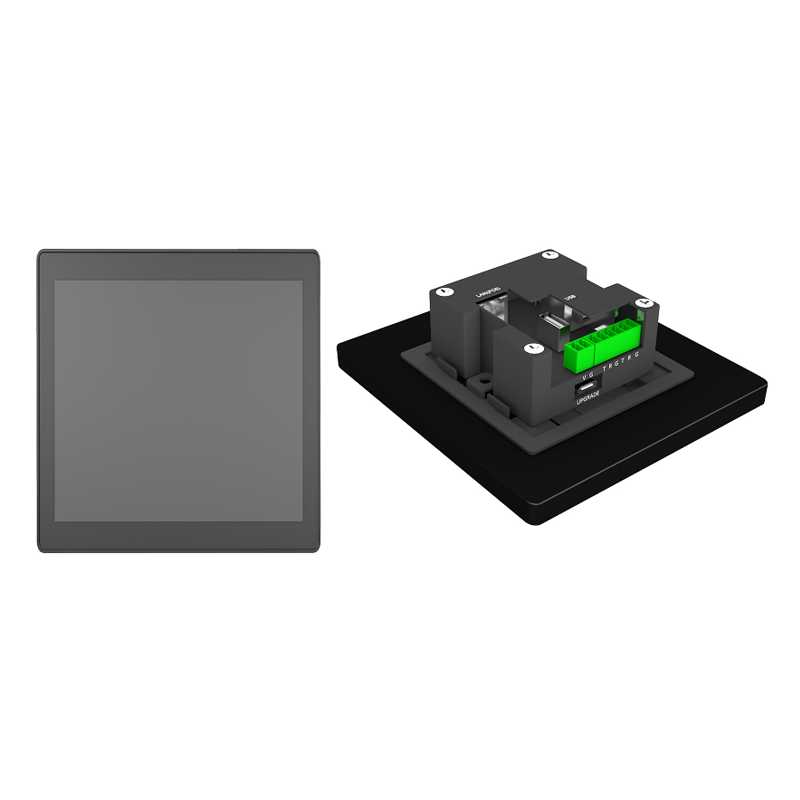

    control Panel FT-DSP-T8U
