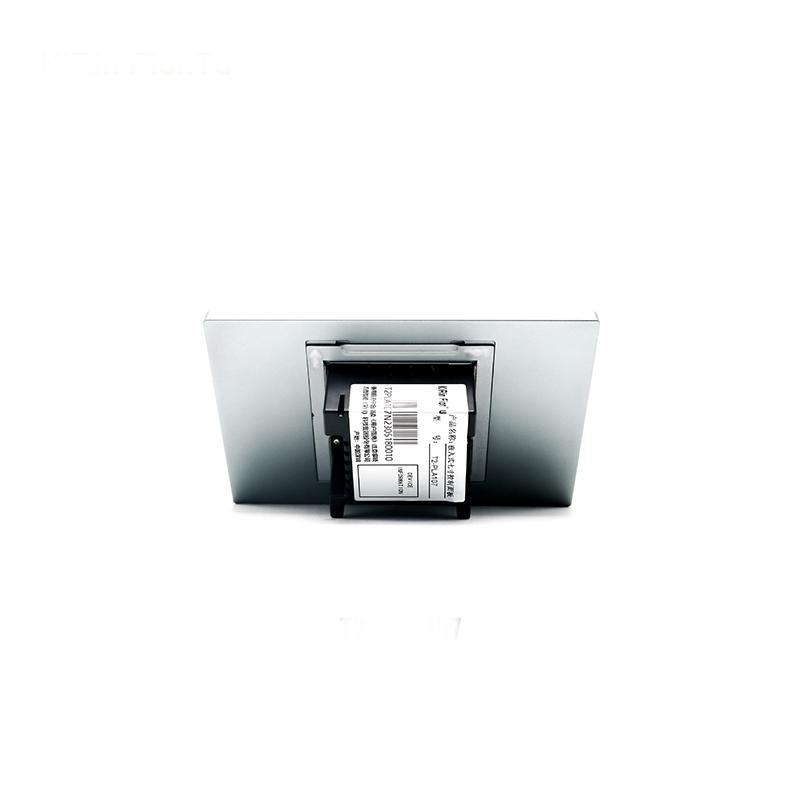

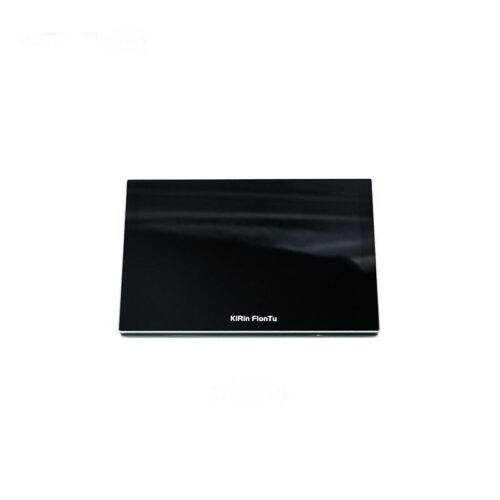

Embedded 7-inch control panel T2-PLA107

This device supports RS-485 communication and features a customizable control interface, programmable for various functions. It has a 1024x600 resolution IPS capacitive touch screen and operates on an ARM Cortex-A7 dual-core CPU. With support for multiple image formats, swipe navigation, and SD card writing, it can function independently or with a central control system.
Categories:
Get Quote
Category Tags , , , ,
Description
  • RS-232/RS-485, TCP/IP communication mode
  • Support TF expansion, built-in buzzer, Linux system
  • Baud rate can be changed
  • Programmable, control interface is completely customized
  • Support multiple formats of pictures (JPG, PNG, etc.）
  • Support multiple controls
  • Support swipe page turning, button page turning
  • SD card writing
  • Editable interface
  • Support independent or coordinated use with central control
  • Standard 87 box installation
    • Parameter
     Resolution  1024*600  CPU  ARM Cortex™-A7
     Dual core  1.2GHz  Screen  IPS Capacitive touch
     Communication method  RS-232, RS-485 optional  Storage space  16M
     Power supply  DC12V1A  Firmware and program  insert SD card for local upgrade
     Device weight  0.4KG  Device size  173.8mm*111.2mm*43mm
     Operating system  No operating system, it can run after power on
    Donwload
    T2-PLA107
