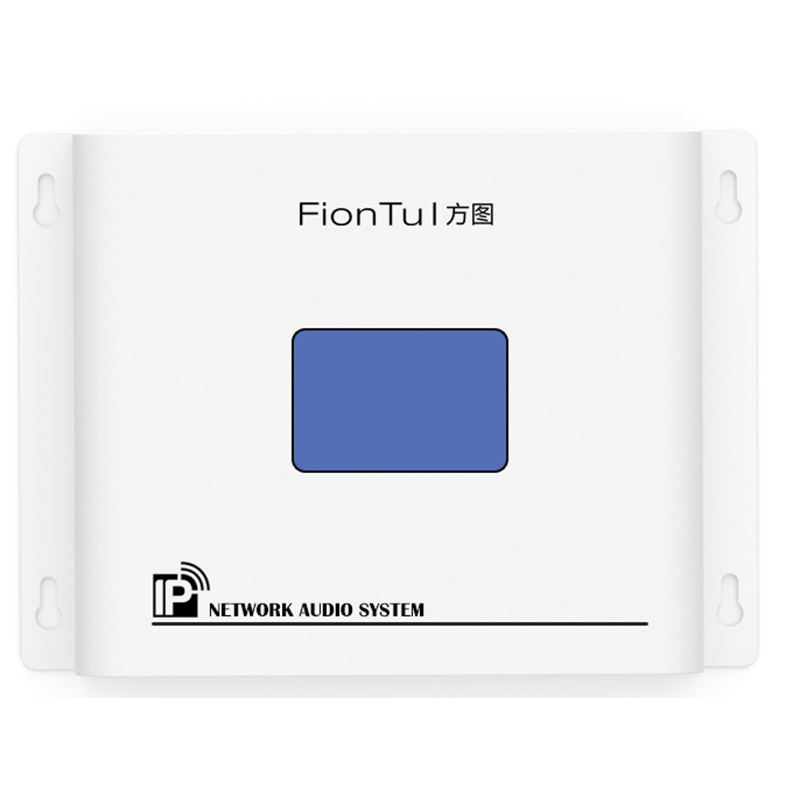

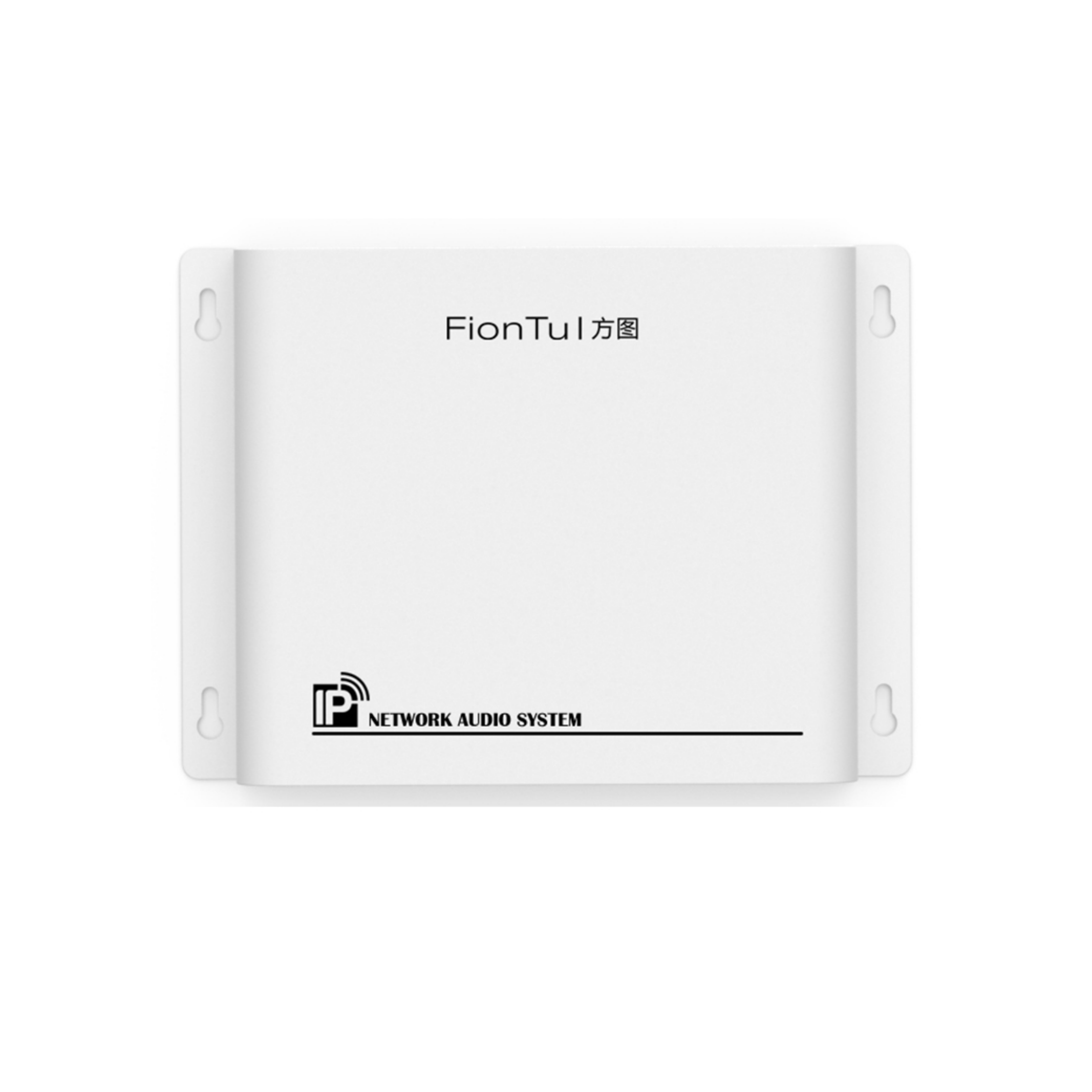

Network Terminal FT-B1100B（Tape backup）

This wall-mounted audio terminal integrates embedded DSP technology for high-quality network audio transmission, supporting TCP/IP, UDP, and IGMP protocols. It features a 2×25W Class D amplifier, multiple audio inputs, USB playback, and automatic backup signal switching for redundancy. The device also supports wireless control, emergency alarms, and customizable audio priorities.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Wall-mounted design, private mold white alloy plastic injection molding, beautiful craftsmanship
  • The terminal adopts embedded technology and DSP audio processing technology
  • Adopting high-speed industrial-grade chips, the startup time is less than 1s
  • Built-in 2×25W fixed resistance output Class D amplifier module, beautiful sound and strong power
  • Built-in network hardware audio decoding module, supporting TCP/IP, UDP, IGMP (multicast. protocols
  • Realize network transmission of 16-bit stereo CD-quality audio signals
  • Stereo audio output, can be connected to an external power amplifier or active speakers
  • 1 stereo line input, 1 microphone input, with independent volume adjustment switch
  • 1 USB input interface, can realize local USB playback function
  • Built-in analog audio signal backup module, support constant voltage 70V/100V signal input
  • When the device detects that there is no network signal input or power failure, it automatically switches to input constant voltage signal amplification to achieve dual line redundancy
  • 1 short-circuit signal input, which can be connected to the linkage trigger signal, and can trigger the terminal alarm in an emergency
  • 1 short-distance signal output, which can be linked to trigger other devices in an emergency
  • Support intelligent voice prompt function when registering new terminal configuration (if the device is connected.
  • With 1000-level custom audio priority silent control function
  • With server unified authorization operation management function, unified configuration management user and password
  • With digital audio time-lapse breakpoint playback function to ensure broadcast synchronization effect
  • With PSTN telephone broadcast, support SMS voice broadcast function
  • With mobile phone WIFI on-demand, support wireless remote control on-demand function
  • Support DHCP, compatible with routers, switches, bridge gateways, Modem, Internet, 2G, 3G, 4G, multicast, unicast and other network structures
    • Parameter
    Network interface standard RJ45 input
    Support protocols TCP/IP, UDP, IGMP (multicast)
    Audio format MP3/MP2
    Output power 2×25W fixed resistance
    Frequency response 50Hz~18KHz
    Sampling rate 8K～48KHz
    Transmission rate 100Mbps
    Audio mode 16-bit stereo CD quality
    Harmonic distortion ≤0.3%
    Signal-to-noise ratio ＞70dB
    Audio source output level 1000mV industrial standard crimping terminal
    Audio source output impedance 470Ω
    Ambient temperature 5℃～40℃
    Ambient humidity 20%～80% relative humidity
    Power consumption ≤36W
    Input power ~220V 50Hz
    Dimensions 220×160×43mm
    Weight 1.28Kg
    Donwload
    FT-B1100B（带备份）
    Get Quote

    Your email address will notbe published, Required fields are marked

    Product Related

    Network terminal (with 2.4G microphone) FT-B1300GB（Tape backup）

    Network terminal (with 2.4G microphone) FT-B1300B（Tape backup）

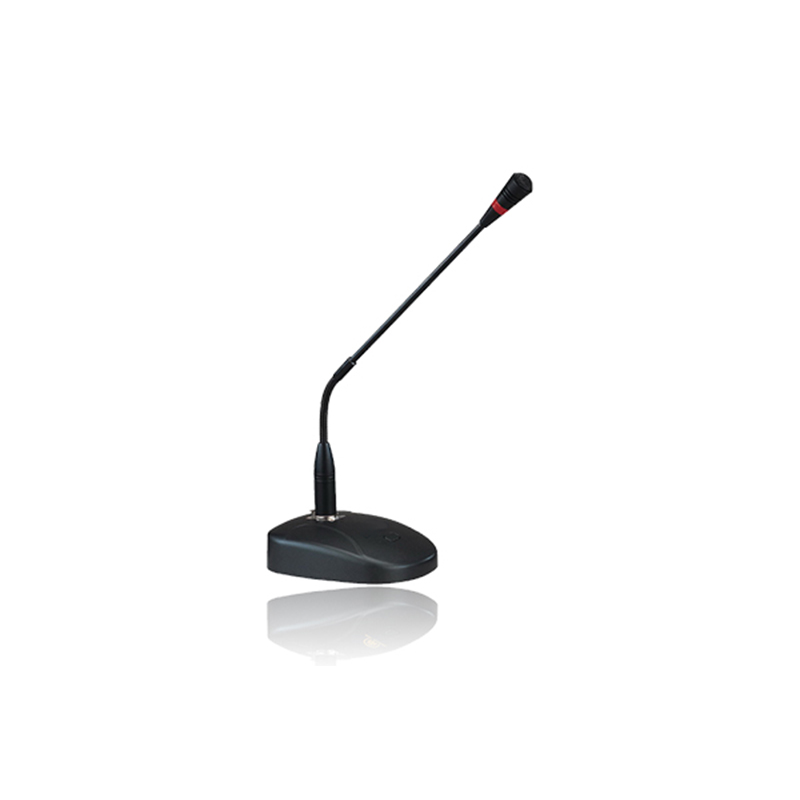

    Four-tone prelude microphone FT-B301MC
