Digital IP Network Amplifier-260W FT-B2260NL

This audio system features a 2U aluminum panel, embedded computer and DSP audio processing technologies, and high-speed industrial-grade chips. It supports multiple input types and outputs in both constant voltage and constant resistance modes, with intelligent control features and built-in 4G memory. The system is designed for easy network integration, supporting multiple protocols and network structures for flexible and reliable audio broadcasting.
Categories:
Get Quote
Category Tags , , , ,
Description

  • High-grade aluminum 2U black brushed panel, cabinet installation, beautiful and generous
  • The equipment is designed with embedded computer technology and DSP audio processing technology
  • High-speed industrial-grade chips are used, and the startup time is less than 1s
  • Equipped with 100V, 70V constant voltage output and 4~16Ω constant resistance output
  • Five-way signal input (three-way microphone, two-way line.
  • 1-way audio signal auxiliary output interface, which can be expanded to an external power amplifier
  • Each channel volume is independently adjustable, with treble and bass adjustment
  • MIC1 automatic mute has an adjustment switch, and the adjustable range is:0 to -30dB
  • It has a 5-unit LED level indicator for easy observation of the signal output status
  • MIC1 automatic mute has an adjustment switch, and the adjustable range is:0 to -30dB
  • Three-wire audio control forced output interface, unlimited number of audio controls
  • Built-in DC24V power output, used to force the 4-wire audio controller
  • 1 group of short-circuit signal input, which can trigger the alarm of this machine through software setting
  • 1 group of short-circuit signal trigger output, used to drive other linkage devices
  • Built-in 1-channel network hardware audio decoding module, supporting TCP/IP, UDP, IGMP (multicast. protocols
  • Realize network transmission of 16-bit stereo CD quality audio signals
  • It has the function of actively taking over tasks when the network and server are disconnected, and can realize automatic playback when the terminal is disconnected
  • It has a built-in 4G large-capacity memory, and the program is transmitted to the SD card for storage through the network
  • Built-in high-precision timing digital clock chip, the power-off timing is not less than 3 years, and it has network synchronization function
  • The power of the power amplifier module is automatically managed, and the power of the power amplifier can also be manually forced to turn on to meet the use of local sound sources
  • Support 1000-level custom audio priority silent control
  • Support PSTN telephone broadcasting, support SMS voice broadcasting
  • Support mobile WIFI on-demand, support wireless remote control on-demand
  • Support server unified authorization operation management function, unified configuration management users and passwords
  • Support DHCP, compatible with any network structure such as routers, switches, bridge gateways, Modems, Internet, 2G, 3G, 4G, multicast, unicast, etc.
  • Support intelligent voice prompt function when registering new terminal configuration (if the device is connected.
  • Support 15KVESD protection, built-in network isolation lightning protection circuit
  • 1-way PC download IP address serial port, used to modify the IP address of the network decoding module
  • Digital network product, easy to expand, not restricted by geographical location, no need to add computer room management equipment
  • Adopt the design concept of common network free line construction, easy to install
  • The cooling fan is started with intelligent temperature control
  • It has perfect output short circuit protection and over-temperature protection functions
Parameter
Rated power 260W
Network interface RJ45
Transmission rate 100Mbps
Support protocol TCP/IP, UDP, IGMP (multicast)
Audio format MP3/MP2
Audio mode 16-bit stereo CD quality
Sampling rate 8K~48K
Bit rate 8K~512Kbps
LINE OUT output level 775mV, 2-digit lotus seat
LINE OUT output impedance 470 Ω
AUX input sensitivity 70mV (unbalanced)
MIC input sensitivity 5~10mV (unbalanced)
Treble boost, attenuation ±12dB
Bass boost, attenuation ±12dB
Power consumption 350W
Standby power consumption <3W
Frequency response 60Hz~18KHz
Harmonic distortion THD≤0.5%
Signal-to-noise ratio ≥75dB
Output mode 4~16Ω fixed resistance output, 70V/100V constant voltage output
Protection circuit DC output, overload, overtemperature, short circuit protection circuit
Ambient temperature 5℃～40℃
Ambient humidity 20%～80% relative humidity
Input power ~220V/50Hz
Dimensions 485x365x89mm
Weight 13.68kg
Donwload
FT-B2260NL
Get Quote

Your email address will notbe published, Required fields are marked

Product Related

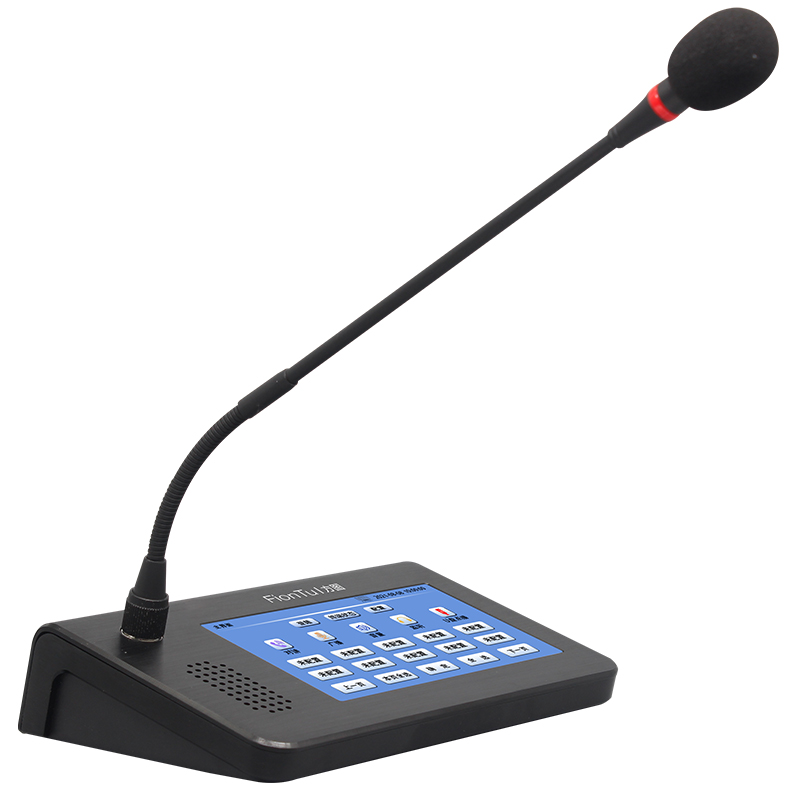

Network terminal (with 2.4G microphone) FT-B1300
