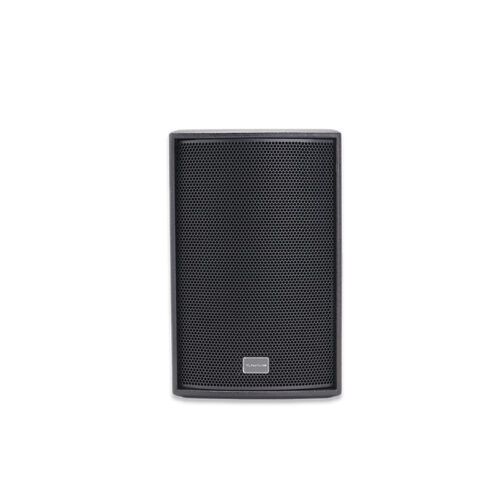

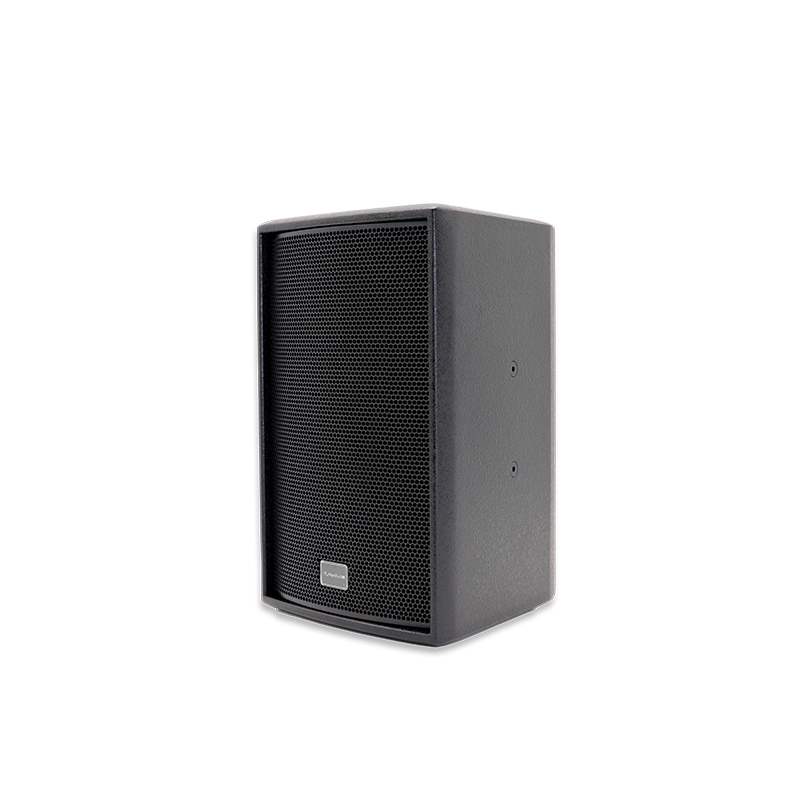

Full Range speaker FT-M08F

This 1x8-inch two-way full-range speaker is designed for medium-sized spaces like conference rooms and auditoriums. It features a frequency range of 70Hz-18kHz, 93dB sensitivity, and a maximum sound pressure level of 116dB. Its H80° x V50° coverage makes it ideal for focused sound distribution in fixed installations.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Full-range speaker consisting of two-way 8-inch low-frequency drive unit and 1.35-inch (Φ34mm) compression drive unit.
  • Tailor-made for fixed installation places such as conference rooms.
  • Suitable for medium-sized conference rooms, multi-function halls, churches, auditoriums, sound supplement and stage, sound image, stage lip.
    • Parameter
    System type  1X8-inch two-way full-range speaker
    Frequency range  70Hz-18KHz
    Sensitivity  93dB
    Input Impedance  8Ω
    Rated power  200W
    Maximum sound pressure level  116dB
    Woofer  1X8 inch 50mm core 120 magnet
    Tweeter  1X1 inch throat 34mm core 100 magnet
    Coverage  H80°XV50°

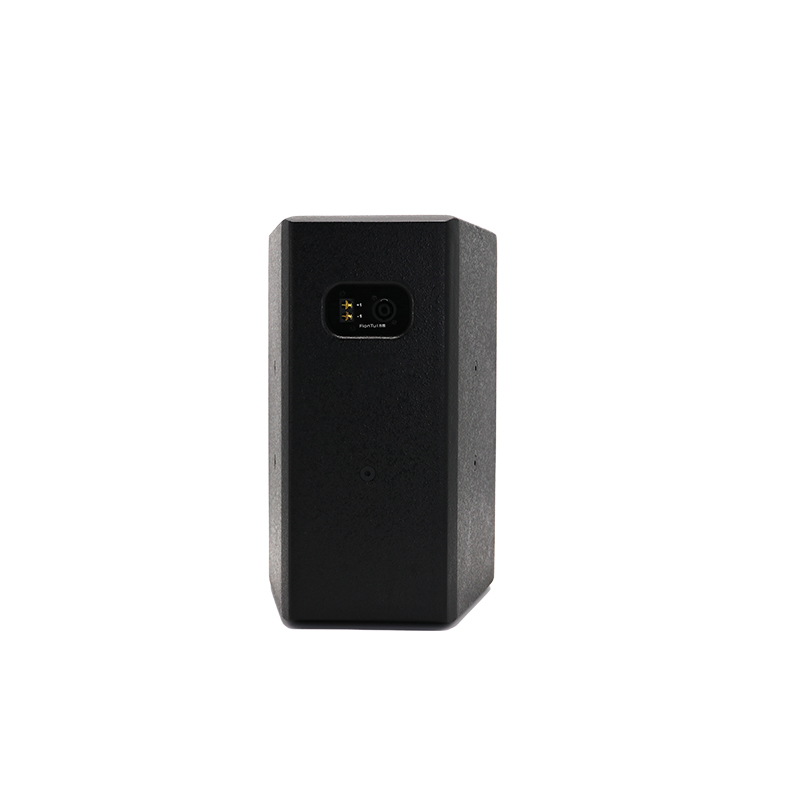

    Input interface  1×SpeakonNL4, 1x terminal block (1+1-)
    Dimensions HxWxD  410×258×255mm
    Net weight  9.5KG
    Donwload
    FT-M08F
