Full Range speaker Quantum 2 L2

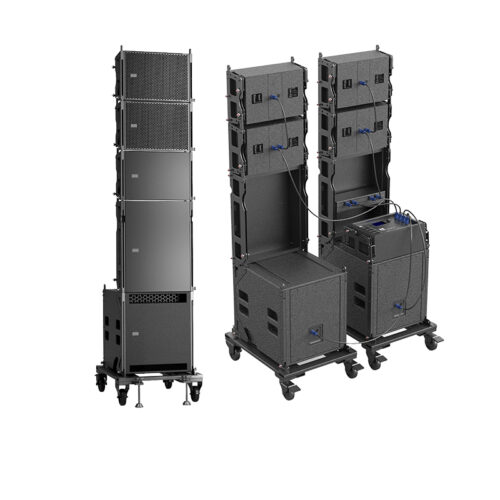

This compact, lightweight speaker features a 4x5” bass and 2x44mm compression tweeter setup, offering high sound pressure levels of up to 136dB. It has an adjustable vertical coverage of 0° to 10° and horizontal coverage of 100°. The speaker is designed for easy single-person assembly and utilizes durable nylon fiber-reinforced materials.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Compact and exquisite cabinet
  • Ultra-light and thin, single-person assembly design
  • Ultra-short path tweeter waveguide
  • Extremely high sound pressure/volume ratio
  • Performance-level sound pressure and power
  • EASE Focus gll data file has been created
Parameter
Dimensions (WxHxD)  448x296x156mm
Power (AES)  Hi 80W Lo 400W
Unit structure  4 x 5″ paper cone bass, 2 x 44mm compression tweeter
Coverage angle  horizontal (H) 100°, vertical (V) 0~10° adjustable
Nominal impedance  Hi 16Ω Lo 16Ω
Frequency response range (-10dB)  100Hz~17kHz
Maximum sound pressure level SPL  Hi 136dB SPL peak, Lo 130dB SPL peak
Box  Nylon fiber reinforced material, mold pressing
Weight  13.8kg/30.4lbs
Donwload
L2
