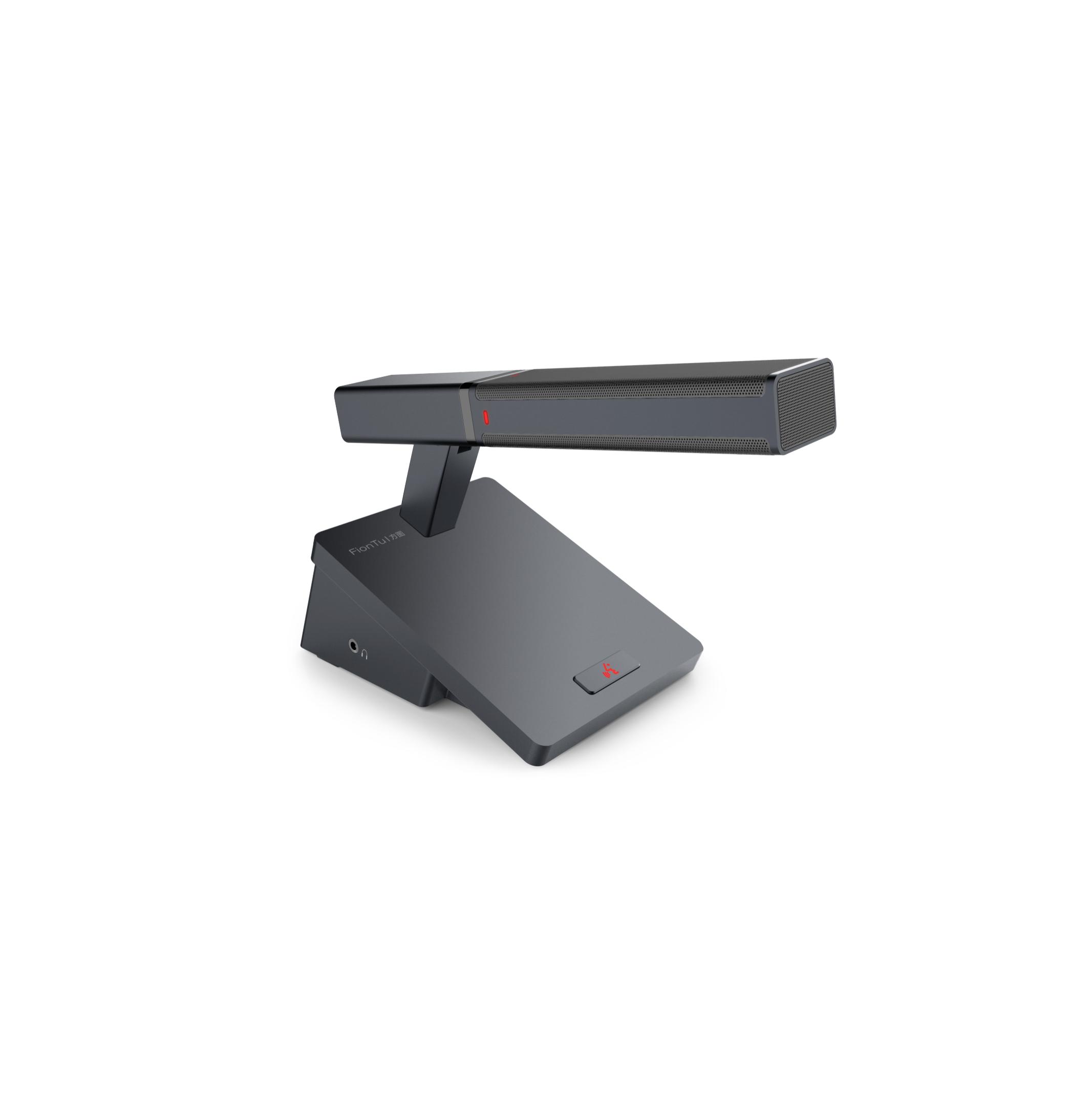

Fully digital conference unit G10 E-L

The system features all-digital audio transmission with 24bit/48KHz sound quality, built-in DSP for optimized audio, and flexible configurations like dynamic ID allocation and customizable functions (e.g., recording, language selection, and camera tracking). It supports high-end conferences with robust build quality, adjustable microphones, and headphone connectivity, ensuring professional-grade performance and scalability.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Network-based all-digital audio transmission technology
  • All-digital audio transmission technology is used between conference units and between conference units and the host, with 24bit/48KHz sound quality standard and uncompressed transmission based on the network
  • Built-in high-performance DSP audio chip, which can independently adjust the microphone gain, optimize the audio signal, restore the human voice, and have excellent sound quality
  • Support dynamic allocation of unit ID, high system flexibility
  • Diverse software modules can realize multiple working modes, custom chairman/VIP, channel language selection, audio input/output, unit/host equalizer, recording, camera tracking and other functions, which is very forward-looking and can easily expand new functions in the future
  • 3.5mm stereo headphone jack can connect headphones
  • The microphone can be adjusted from -50° to 45° (horizontal
  • The system has an automatic repair function and supports hot plugging of lines
  • Made of zinc/aluminum alloy and anodized, it is mainly used in professional occasions such as high-end conferences and lecture halls
    • Parameter
    Frequency response 20Hz-20KHz
    Maximum power consumption 1.5W
    Headphone load >16Ω
    Headphone volume 10mW
    Headphone output interface Ø3.5mm stereo jack
    Connection method dedicated 6-core cable
    Connector 6P-DIN+clip
    Color Base: brown Microphone rod: black
    Weight 0.95kg
    Dimensions (length * width * height mm) Base: 138*98*54 Microphone rod: 200*34.5*23
    Microphone parameters
    Microphone capsule 14mm diameter gold-plated capacitor capsule
    Directional characteristics supercardioid
    Sensitivity -28dB
    Frequency response 20Hz-20KHz
    Input impedance 2.2KΩ
    Maximum sound pressure level 130dB (THD<3%)
    Equivalent noise 25dB-A
    Donwload
    G10 E-L
    Get Quote

    Your email address will notbe published, Required fields are marked

    Product Related

    Charging box FT-A-TBR

    Digital infrared transmitter host FT-A-TSC8

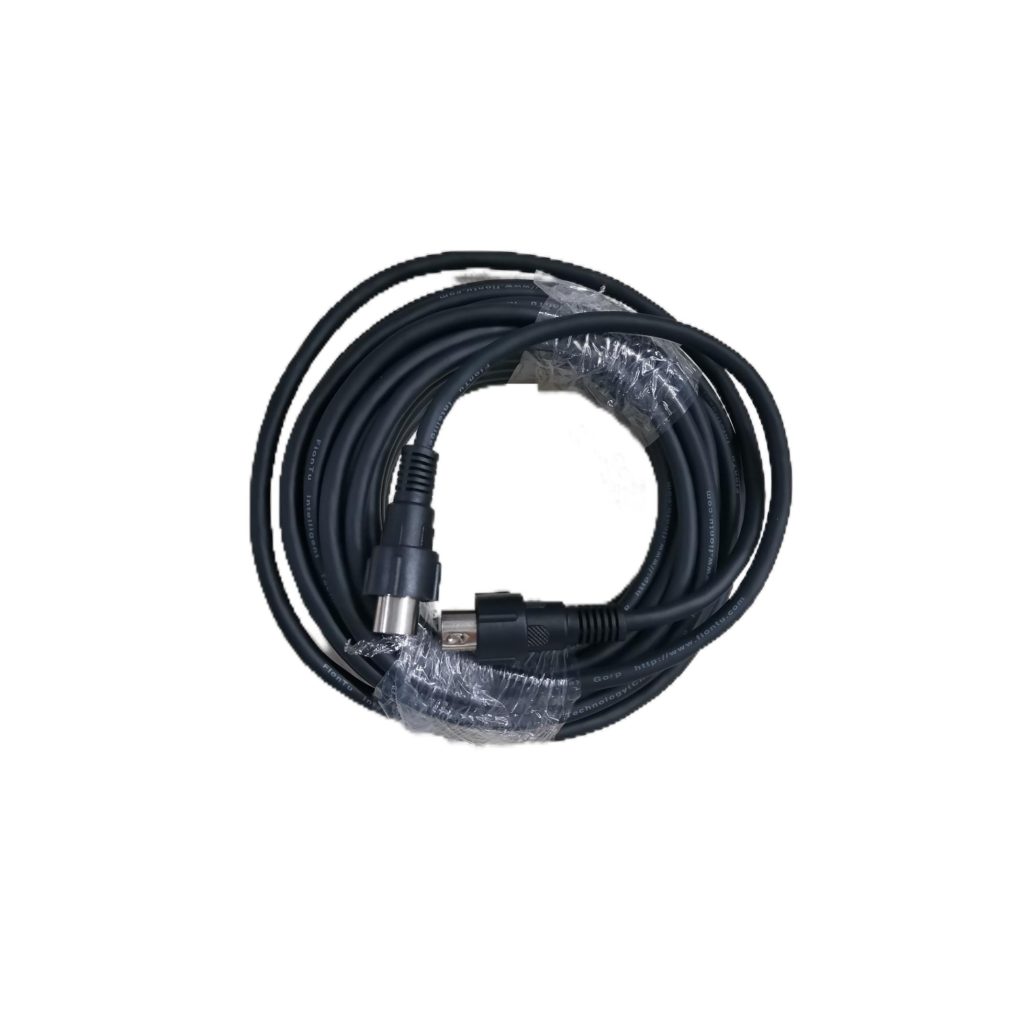

    Fully digital conference system male-female 50m main cable DX50-6P
