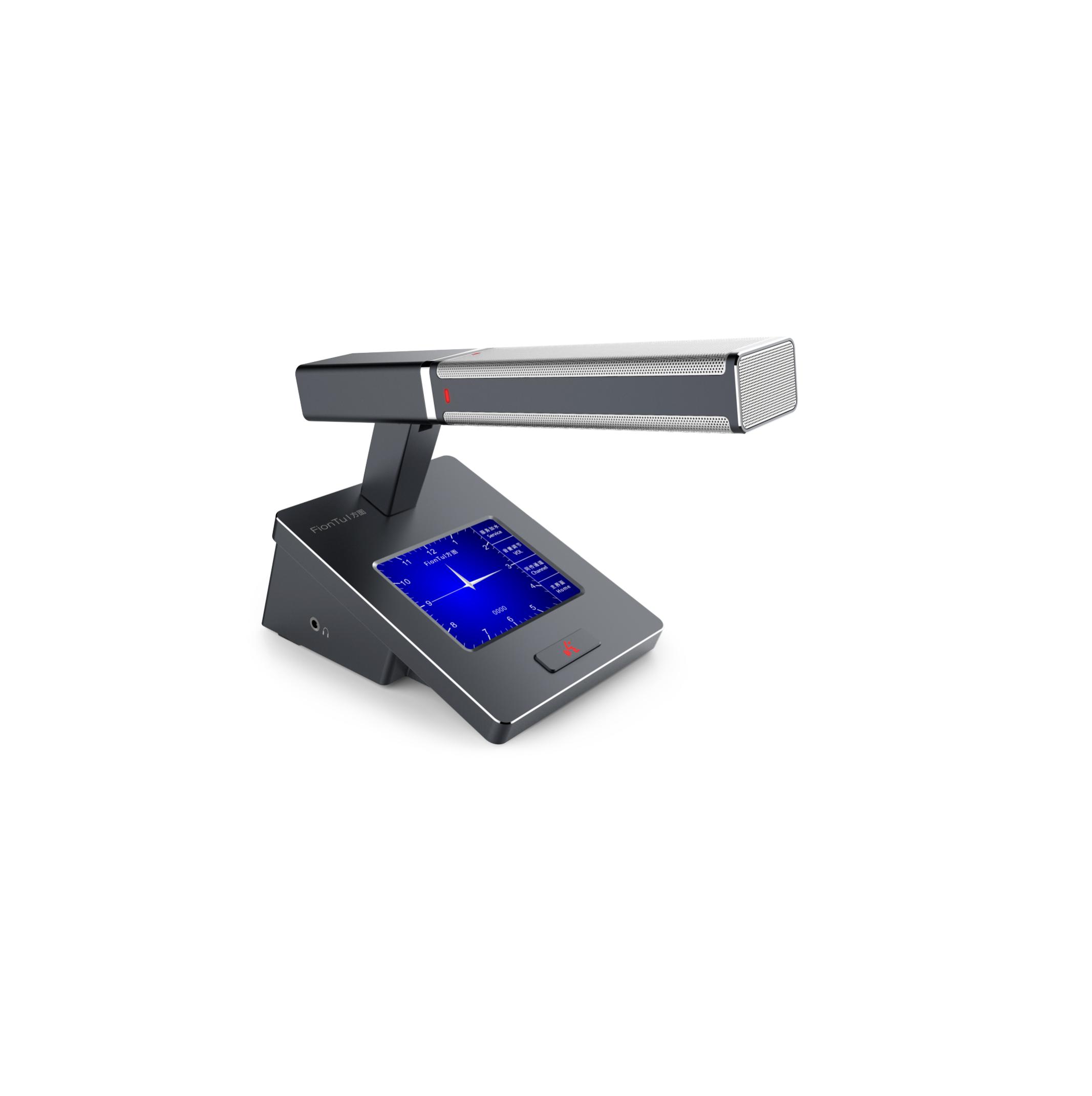

Fully digital conference unit G10 S

The system employs network-based all-digital audio transmission with 24bit/48KHz sound quality, built-in DSP for optimized audio, and support for wired simultaneous interpretation. It features a high-resolution 3.5-inch touch screen for dynamic control, customizable functions, and robust zinc/aluminum alloy construction for professional use in high-end conferences.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Network-based all-digital audio transmission technology, with wired simultaneous interpretation function, simultaneous interpretation channels can be selected through the screen
  • All-digital audio transmission technology is used between conference units and between conference units and host, 24bit/48KHz sound quality standard, based on network uncompressed transmission
  • Built-in high-performance DSP audio chip, can independently adjust microphone gain, optimize audio signals, restore human voice, excellent sound quality
  • Support dynamic allocation of unit ID, high system flexibility
  • High-resolution display touch screen: support dynamic clock display, simultaneous interpretation channel, call service, receive messages, display pictures, adjust volume, customize interface and other functions
  • Diverse software modules, can realize multiple working modes, custom chairman/VIP, channel language selection, audio input/output, unit/host equalizer, recording, camera tracking, picture setting and other functions, which is very forward-looking and can easily expand new functions in the future
  • 3.5mm stereo headphone jack can connect headphones
  • Microphone adjustable elevation angle -50° to 45° (horizontal
  • The system has an automatic repair function and supports hot plugging of lines
  • Made of zinc/aluminum alloy, anodized, CNC precision processed with high-gloss edges, it is mainly used in high-end conferences, lecture halls and other professional occasions
    • Parameter
    Frequency response  20Hz-20KHz
    Maximum power consumption  2.3W
    Screen  square 3.5-inch capacitive touch screen
    Screen resolution  600*480
    Storage  TF card
    Headphone output interface  Ø3.5mm stereo jack
    Headphone load  >16Ω
    Headphone volume  10mW
    Shell material  zinc/aluminum alloy
    Connection method  dedicated 6-core cable
    Connector  6P-DIN+clip
    Color Base: Qiang color Microphone rod: silver (customizable black)
    Weight  0.95kg
    Dimensions (length*width*height mm) Base: 138*98*54 Microphone rod: 200*34.5*23
    Microphone parameters
    Microphone capsule  14mm diameter gold-plated capacitor capsule
    Directional characteristics  supercardioid
    Sensitivity  -28dB
    Frequency response  20Hz-20KHz
    Input impedance  2.2KΩ
    Maximum sound pressure level  130dB (THD<3%)
    Equivalent noise  25dB-A
