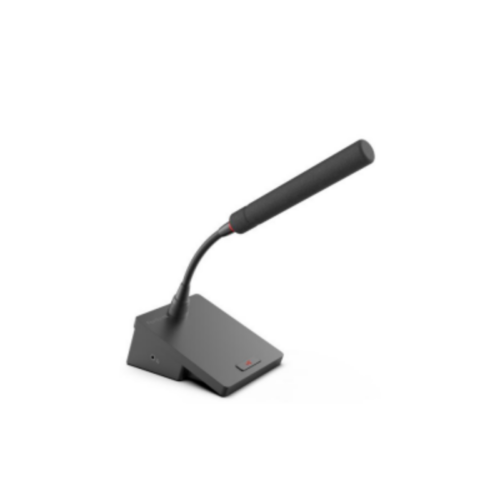

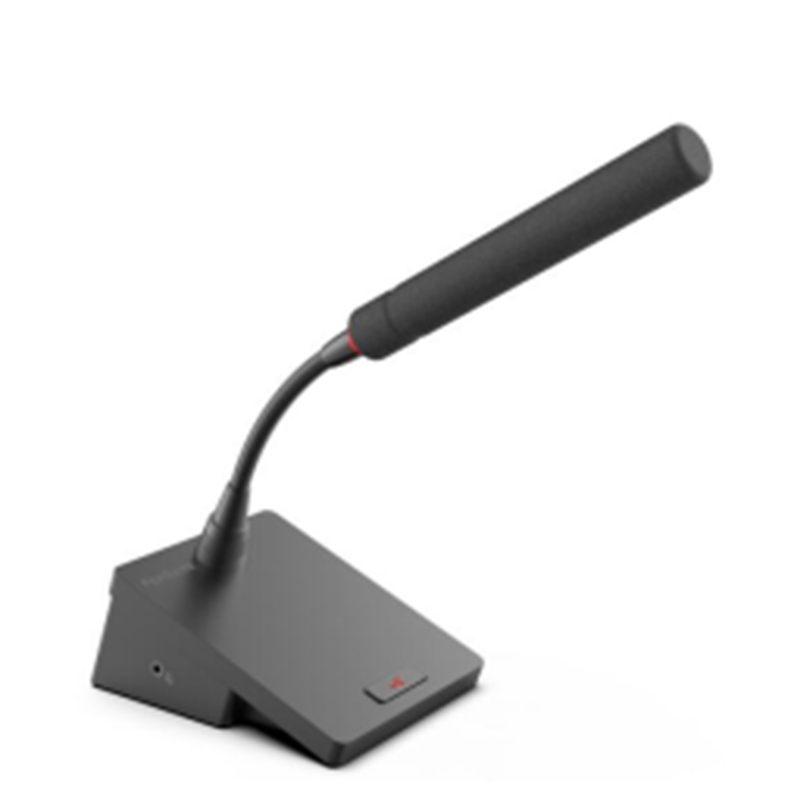

Gooseneck conference unit E40 PRO

This microphone features high stability and shock resistance with a zinc alloy die-cast body, built-in high-performance CPU for superior sound quality, and a one-button on/off switch for easy operation. It supports customized chairman unit configuration, automatic camera tracking with video switcher, and has a sleek design with LED indicators.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Designed based on the principle of acoustic interference
  • Made of zinc alloy die-casting, it has good stability and shock resistance. The bottom is equipped with shockproof pads to effectively prevent noise caused by desktop vibration
  • One-button switch on and off the microphone, convenient and atmospheric, very suitable for use in lectures, teaching, meetings, reports and other occasions
  • Built-in high-performance CPU, faster processing speed and better sound quality
  • Customized chairman machine configuration function, you can temporarily define any unit as the chairman unit according to the needs of the site, and there is no limit on the number of chairman units
  • With the video switcher and camera, the camera automatic tracking function can be realized after using the computer preset
  • The shockproof microphone is coated with low-reflective and frosted Qiang layer, and is equipped with a XLR mother seat as the microphone insertion end. The back is a FionTu conference six-core dedicated connection cable, as a microphone
  • Signal output end and communication channel, both ends of the socket are nickel-plated for power connection
  • The simple and elegant appearance design of the microphone, the microphone pole pickup end is decorated with LED indicator lights, making the microphone show a simple and solemn conference equipment style
    • Parameter
    Output frequency response 20-20KHz
    Signal-to-noise ratio >78 dB
    Working voltage 24V DC
    Total harmonic distortion ≤ 0.05%
    Maximum power consumption 1.5W
    Shell material Zinc/aluminum alloy
    Weight 0.89kg
    Color Base: dark blue ；Microphone rod: black
    Connection method  FionTu conference six-core dedicated connection cable
    Dimensions (length * width * height mm) Base: 138*98*54 Mic rod: φ21.5*294 (without windshield)
    Microphone parameters
    Standard spare parts sponge windshield
    Directional characteristics super directional
    Microphone rod 4-pin XLR female microphone rod(with LED indicator)
    Sensitivity -33 dB
    Frequency response 20-20KHz
    Output impedance 680Ω
    Connection socket between microphone and base M16 aviation female core-4Ppin*1 M16 aviation male core-4Ppin*1
    Donwload
    E40 PRO
