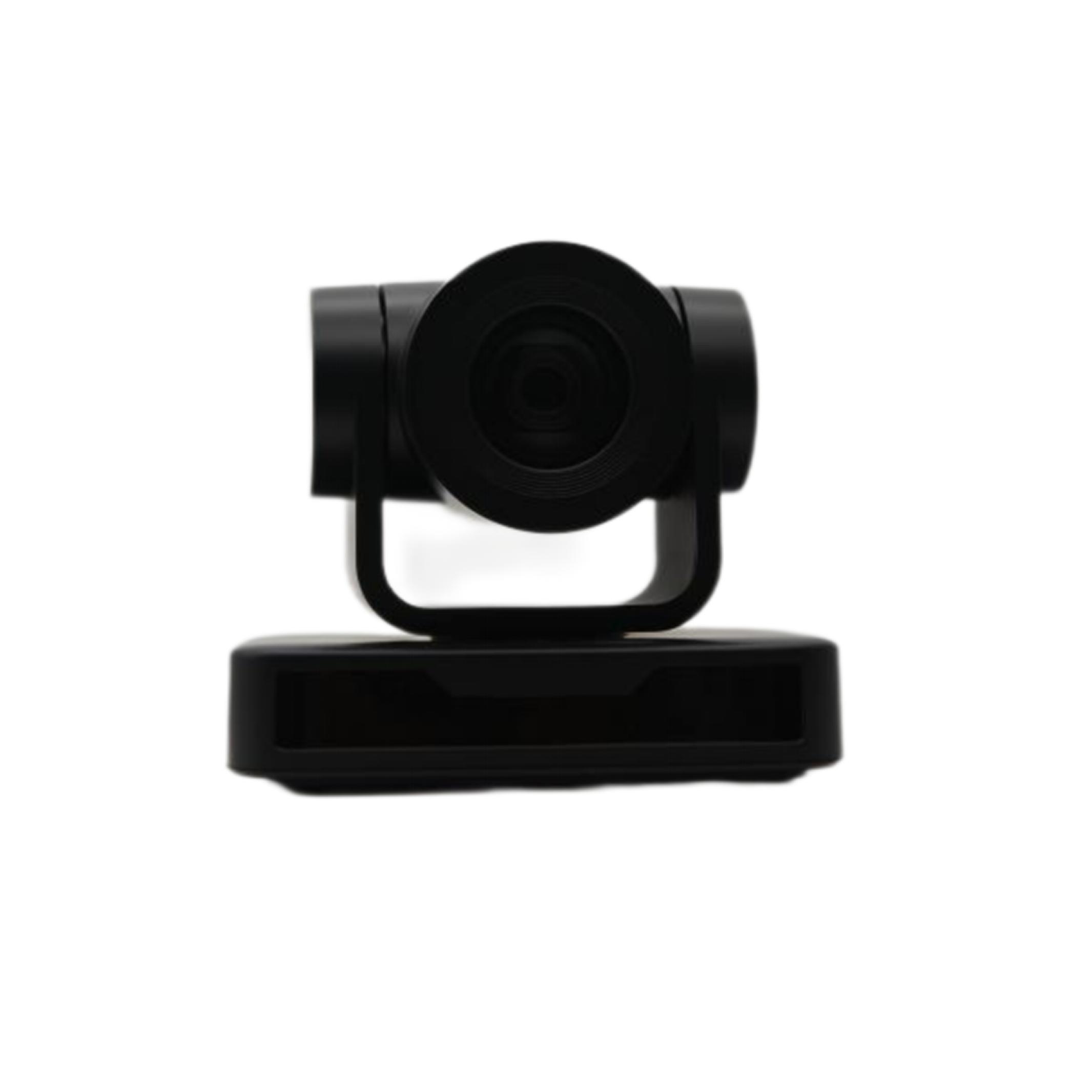

HD Camera FT-S10-HD

This Full HD camera offers 10x optical zoom, advanced autofocus, and low-noise CMOS for clear and stable video. It supports USB2.0 output, multiple control protocols (VISCA, Pelco-D, Pelco-P), and up to 255 presets, making it suitable for conferencing, education, and medical applications. Its compact design and silent PTZ ensure smooth indoor operation.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Full HD image: Adopting 1/2.9-inch 2.07 million pixel high-quality image sensor, the maximum resolution can reach 1920×1080, and the output frame rate is up to 30 frames/second, presenting clear and realistic HD video, vividly showing the expressions and movements of people
  • Optical zoom lens: With 10x optical zoom lens selection
  • Leading autofocus technology: The use of advanced focusing algorithm enables the lens to complete autofocus quickly, accurately and stably
  • Low noise and high signal-to-noise ratio: Low noise CMOS effectively guarantees the ultra-high signal-to-noise ratio of the camera video. The use of advanced 2D and 3D noise reduction technology further reduces the noise while ensuring image clarity
  • Control interface: RS485, RS232; RS232 supports cascading, which is convenient for engineering installation and use
  • Multiple control protocols: support VISCA, PELCO-D, PELCO-P protocols, support automatic identification protocols
  • Super silent PTZ: adopts high-precision stepper motor and precision motor drive controller to ensure smooth and noise-free operation of the PTZ
  • Multiple preset positions: support up to 255 preset positions (the remote control is set to call 10.
  • Multiple application places: conference, education, medical, government affairs, cloud video, collaborative office, multimedia integration, emergency command, broadcasting, justice, public security, military and other system applications
    • Parameter
    Image sensor 1/2.9-inch high-quality CMOS sensor
    Effective pixels 2.07 million, 16:9
    Electronic zoom 10X
    Viewing angle 8.8°～ 66°
    Focal length f=4.34mm～43.4mm
    Aperture F1.85 – F2.43
    Optical zoom 10X
    Minimum illumination 0.5Lux (F1.8, AGC ON)
    Digital noise reduction 2D﹠3D digital noise reduction
    White balance automatic/manual/one-key white balance/specified color temperature (2400K～7100K)
    Focus automatic/manual/one-key focus
    Exposure automatic/manual
    Backlight compensation on/off
    Video adjustment brightness, chroma, saturation, contrast, sharpness, black and white mode, gamma curve
    Signal-to-noise ratio >50dB
    Video signal H264/MJPG: 1920*1080P@30/25/20/15/10/5fps; 1280*720P@30/25/20/15/10/5fps; 960*540@30/25/20/15/10/5fps; 800*600@30/25/20/15/10/5fps; 720*576@30/25/20/15/10/5fps; 720*480@30/25/20/15/10/ 5fps; 640*480@30/25/20/15/10/5fps; 640*360@30/25/20/15/10/5fps; 352*288@30/25/20/15/10/5fps; 320*240@30/25/20/15/10/5fps; YUY2:1920* 1080P@5fps; 1280*720@10/5fps; 1024*576@15/10/5fps; 800*600@2 0/15/10/5fps; 800*448@25/20/15/10/5fps; 640*480@30/25/20/15/10/5fps; 640*360@30/25/20/15/10/5fps; 480*270@30/25/20/15/10/5fps; 320* 180@30/25/20/15/10/5fps; NV12:1280*720@10/5fps; 1024*576@15/ 10/5fps; 800*600@20/15/10/5fps; 800*448@25/20/15/10/5fps; 640*480@30/25/20/15/10/5fps; 640*360@30/25/20/15/10/5fps; 480*270@30/25/20/15/10/5fps; 320*180@30/25/20/15/10/5fps
    Interface function performance
    Video output interface 1-way USB2.0 Interface: Type A port
    Control interface RS232 (loop-through), RS485
    Control protocol VISCA/Pelco-D/Pelco-P
    Power interface HEC3800 power socket (DC12V)
    USB features
    Supported operating systems Windows 7, Windows 8, Windows 10, Mac osx, Linux and other operating systems
    Video compression format YUY2/NV12/MJPG/H.264
    USB communication protocol UVC
    PTZ parameters
    Horizontal rotation -170°～+170°
    Pitch rotation -30°～+30°
    Horizontal control speed 0.1 ～60°/sec
    Tilt control speed 0.1～40°/sec
    Preset speed horizontal: 48°/sec, pitch: 38°/sec
    Number of presets Users can set up to 255 presets (10 for remote control)
    Other parameters
    Working voltage 12V
    Working current 0.42A(max)
    Power consumption 5W(max)
    Storage temperature -40℃～+70℃
    Storage humidity 20%～90%
    Working temperature -10℃～+50℃
    Working humidity 20%～80%
    Dimensions 156.8mm×112.6mm×139.5mm (width×height×depth)
    Weight about 1kg
    Use environment indoor
    Donwload
    FT-S10-HD
