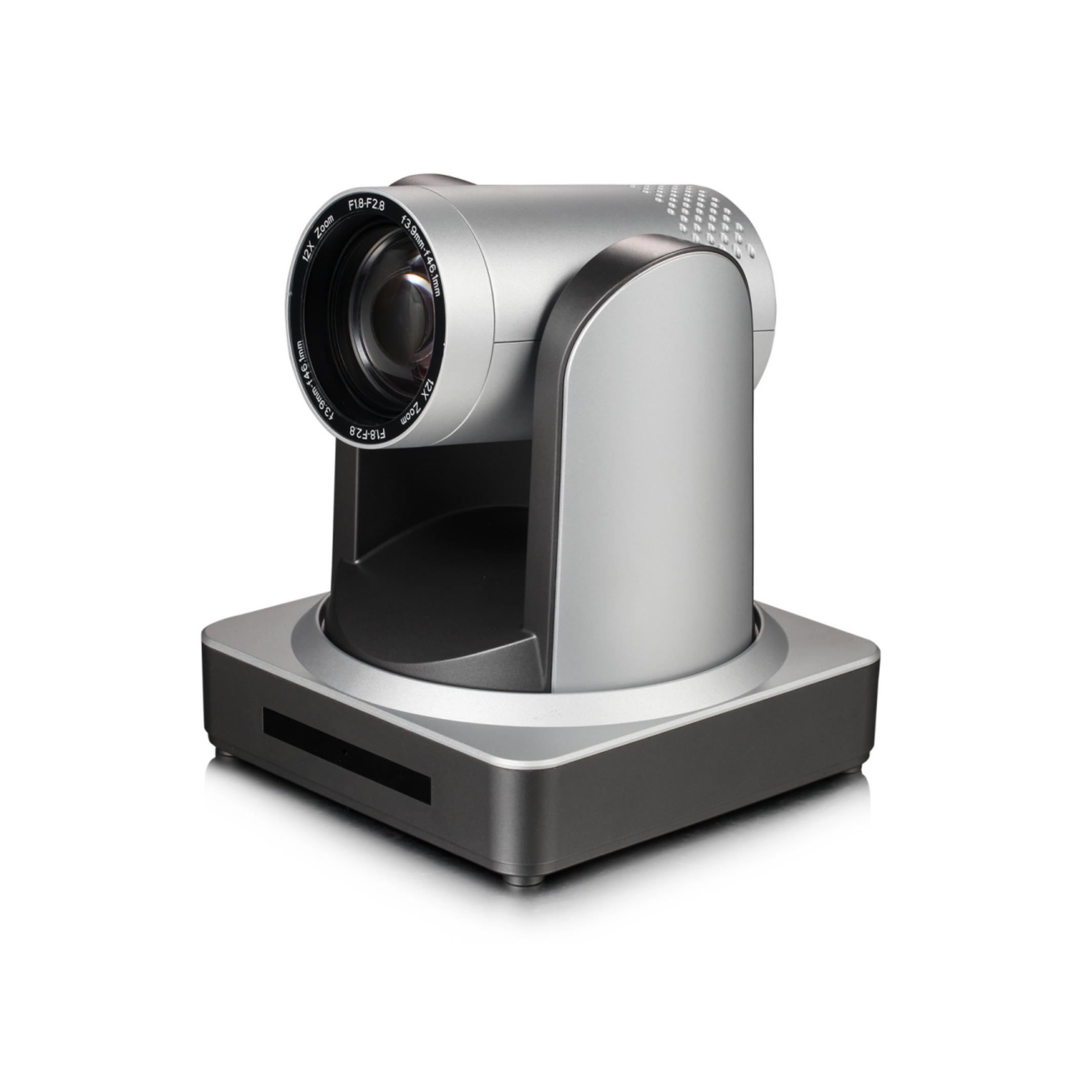

HD Camera FT-S20-HA

This Full HD camera features a 20X optical zoom lens, advanced autofocus, and low-noise CMOS for clear images even in low light. It supports H.265/H.264 encoding, multiple video output interfaces (HDMI, SDI, USB, LAN), and versatile PTZ controls with up to 255 presets, making it ideal for conferencing, education, and broadcasting. Additional features include multi-protocol support (VISCA, ONVIF, RTSP) and super-silent PTZ operation.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Full HD image: using 1/2.8-inch 2.07 million pixel high-quality image sensor, the maximum resolution can reach 1920x1080, and the output frame rate is up to 60 frames/second
  • Optical zoom lens: 20x optical zoom lens
  • Leading autofocus technology: advanced autofocus algorithm enables the lens to complete autofocus quickly, accurately and stably
  • Low noise and high signal-to-noise ratio: low noise CMOS effectively guarantees the ultra-high signal-to-noise ratio of the camera video. Using advanced 2D and 3D noise reduction technology, the noise is further reduced while ensuring image clarity
  • Multiple video output interfaces: support HDMI, SDI, USB, wired LAN (POE function optional.; SDI supports 100 meters transmission in 1080P60 format
  • Multiple audio and video compression standards: support H.265/H.264 video compression, support AAC, MP3, G.711A audio compression; support up to 1920x1080 resolution 60 frames/second compression
  • Audio input interface: support AAC, MP3, G.711A audio encoding, AAC, MP3 encoding support 16000, 32000, 44100, 48000 sampling frequency, G.711A encoding only supports 8000 sampling frequency
  • Multiple network protocols: support ONVIF, GB/T28181, RTSP, RTMP protocols; support RTMP push mode, easily connect to streaming media servers (Wowza, FMS.; support RTP multicast mode, support network full command VISCA control protocol
  • Control interface: RS485, RS232; RS232 supports cascading, which is convenient for engineering installation and use
  • Multiple control protocols: Support VISCA, PELCO-D, PELCO-P protocols, and support automatic identification protocols
  • Super silent PTZ: Adopt high-precision stepper motor and precision motor drive controller to ensure that the PTZ runs smoothly at low speed and without noise
  • Low-power sleep function: Support low-power sleep/wake-up, and the power consumption is less than 400mW when in sleep
  • Multiple preset positions: Support up to 255 preset positions (the remote control setting is 10.
  • Multiple remote controls: Users can choose infrared remote control or wireless remote control according to the environmental conditions used. 2.4G wireless remote control is not affected by angle, distance, and infrared interference. Support remote control signal transparent transmission function, which is convenient for back-end equipment to use
  • Many application places: distance education, teaching recording and broadcasting, conference system, remote training, telemedicine, trial system, emergency command system, etc
    • Parameter
    Image sensor 1/2.8-inch high-quality CMOS sensor
    Effective pixels 2.07 million, 16:9
    Video signal HDMI/SDI/Interface video format: 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
    U2 interface video format  320x240/352x288/640x360/640x480/704x576/704x480/720x576/800x448/800x600/960x540/1024x576/1024x768/1280x720/1920x1080P30/25/20/15/10/5
    Lens optical zoom F=5.05~101 mm
    Viewing angle 3.45° (narrow angle) 60.04° (wide angle)
    Aperture coefficient F1.8 – F2.9
    Digital zoom X10
    Minimum illumination 0.5Lux (F1.8, AGC ON)
    Digital noise reduction 2D & 3D digital noise reduction
    White balance Auto/Manual/One-touch white balance/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
    Focus Auto/Manual/One-touch focus
    Aperture Auto/Manual
    Electronic shutter Auto/Manual
    Backlight compensation On/Off
    Dynamic range Off/Dynamic level adjustment
    Video adjustment Brightness, contrast, sharpness, horizontal flip, vertical flip (displayed when auto flip is off), black and white mode, gamma curve, electronic zoom, DCI, lens distortion correction
    Signal-to-noise ratio >55dB
    Interface function performance
    Product interface HDMI, SDI, LAN (support POE), USB2.0, A-IN, RS232-IN,
    RS232-OUT, RS485, DC12V power supply
    Video output interface HDMI, SDI, LAN, USB2.0
    Video compression format LAN interface supports: H.264, H.265
    USB 2.0 interface supports MJPG, H264, H.265, YUY2, NV12
    Audio input interface dual-channel 3.5mm linear input
    Audio output interface HDMI, LAN, USB2.0
    Audio compression format AAC, MP3, G.711A
    Network interface 100M network port, POE power supply optional, support audio and video output
    Network protocol RTSP, RTMP, ONVIF, GB/T28181; support network VISCA control protocol; NDI|HX Optional, supports remote upgrade, remote restart, remote reset
    Control interface RS232-IN, RS232-OUT, RS485
    Serial communication protocol VISCA/Pelco-D/Pelco-P; supports baud rate 115200/38400/9600/4800/2400
    USB communication protocol UVC (video communication protocol), UAC (audio communication protocol)
    Power interface HEC3800 power socket (DC12V)
    Power adapter input AC110V~AC220V; output DC12V/1.5A
    Input voltage DC12V±10%
    Input current <1A
    Total power consumption <12W
    PTZ parameters
    Horizontal rotation -170°～+170°
    Pitch rotation -30°～+90°
    Horizontal control speed 0.1°/s～60°/s
    Tilt control speed 0.1°/s～30°/s
    Preset speed horizontal: 60°/s, pitch: 30°/s
    Number of presets Users can set up to 255 presets (10 for remote control)
    Other parameters
    Storage temperature -10℃～+60℃
    Storage humidity 20%～95%
    Working temperature -10℃～+50℃
    Working humidity 20%～80%
    Size 150 (length) mm×150mm (width)×167.5mm (height)
    Weight (approx.) about 1.4kg
    Usage environment indoor
