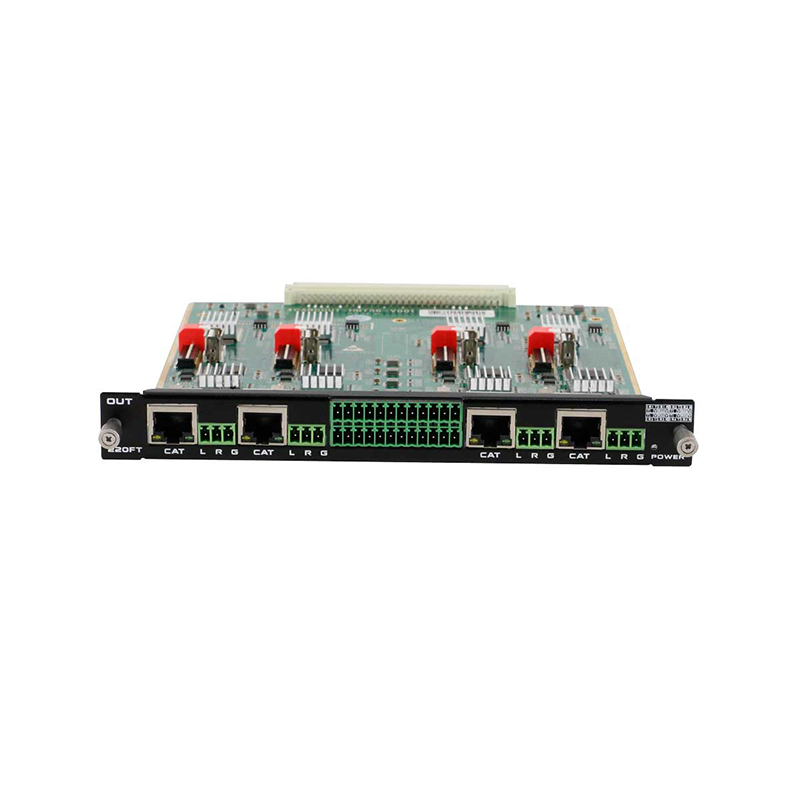

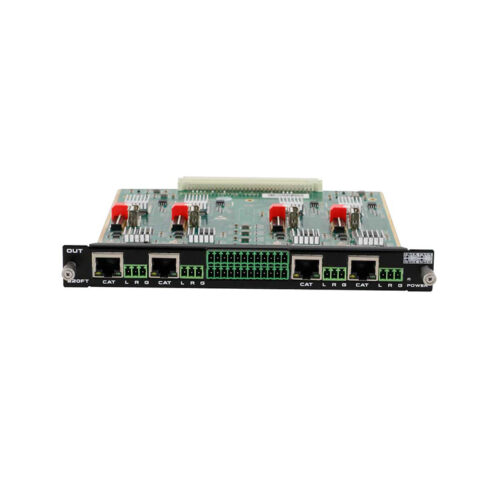

HDBT Output Board FT-4OBT70

The FT-4OBT70 is a HDBT seamless output card supporting 4K at 30Hz with 4 RJ45, 4 bidirectional RS232, and 4 IR interfaces. It provides a transmission range of 70 meters for 4K and 100 meters for 1080p, with POC power support and seamless resolution switching. The card is compatible with HDMI1.4 and HDCP2.0 standards.
Categories:
Get Quote
Category Tags , , , ,
Description
  • FT-4OBT70 is a HDBT seamless output card with 4 RJ45, 4 232, 4 bidirectional IR interfaces, supporting 4K signals. Highly integrated board design, the number of boards can be selected as needed
  • Support 4-way 30RJ45 signal output
  • Support power-off on-site switching memory protection function, unique ESD static protection function
  • Support POC power supply function, no power supply required at the receiving end
  • Compatible with HDMI1. 4 and HDCP2.0 standards
  • Maximum resolution supports 4Kx2K@30Hz, 4k30 can be transmitted 70 meters, 1080P 100 meters
  • Support hot plug, plug and play, extremely convenient
  • Support seamless switching across resolutions, input 1080P/4K30 can achieve seamless switching
  • Support output resolution change
  • Support splicing function
    • Parameter
    Protocol HDMI1.4 standard, HDCP2.0 protocol
    Gain 0 dB
    Pixel bandwidth 300MHz, all digital
    Interface bandwidth 3.4Gbps, all digital (a total of 10.2Gbps, each color is 3.4Gbps)
    Maximum supported resolution 4Kx2K@30Hz
    Bit clock jitter (Clock Jitter) <0.15 Tbit
    Bit rise time (Risetime) <0.3Tbit (20%--80%)
    Bit fall time (Falltime) <0.3Tbit (20%--80%)
    Maximum transmission delay 5nS (±1nS)
    Interface 4-way RJ45
    Signal strength T.M.D.S.+/-0.4Vpp
    Minimum/maximum level T.M.D.S.2.9V/3.3V
    Impedance 50Ω
    EDID Support EDID management and learning
    Maximum DC bias error 15mV
    Recommended maximum input/output distance 70/100M
    Product weight about 0.5KG
    Maximum power consumption 5W
