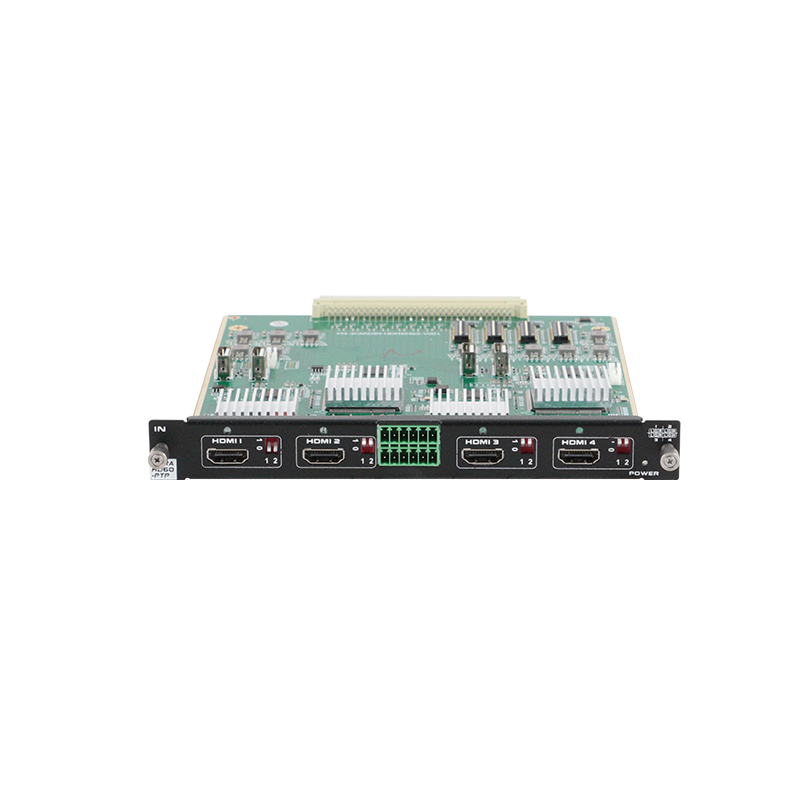

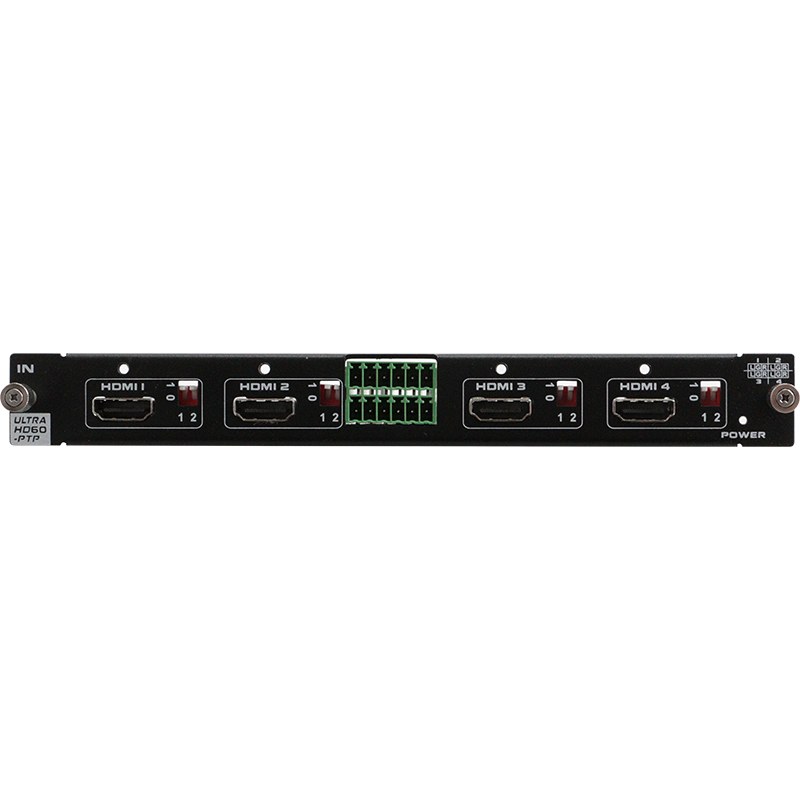

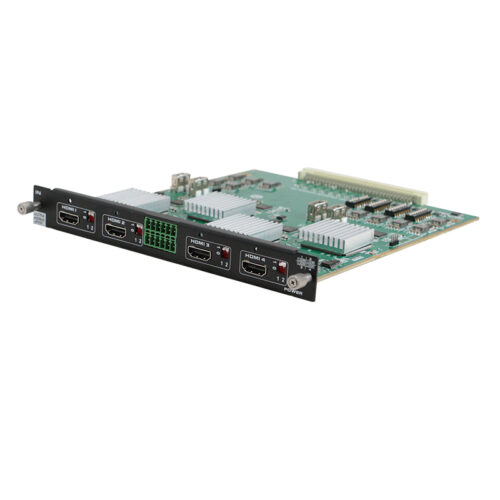

HDMI Input Board FT-4IHMIT

The FT-4IHMIT is an HDMI input board supporting 4 channels of 4K HDMI audio and video input, compatible with HDMI 2.0 and HDCP 2.2 standards. It offers a maximum resolution of 4Kx2K at 60Hz, supports 3.5mm audio embedding, and features seamless switching with a 10-meter cable length. The board also supports hot plugging and power-off switching memory protection.
Categories:
Get Quote
Category Tags , , , ,
Description
  1. FT-4IHMIT is an HDMI input card that supports 4-channel 4K HDMI audio and video signal input. It has a highly integrated card design and can be equipped with any number of cards as needed, which brings great convenience to application and maintenanc
  2. Support 4-channel HDMI signal input
  3. Support power-off on-site switching memory protection function, unique ESD static protection function
  4. Support 3.5mm audio embedding
  5. Compatible with HDMI2.0 and HDCP2.2 standards
  6. The maximum resolution supports 4Kx2K@60Hz, with a balanced 10-meter cable length
  7. Support hot plugging, plug and play, extremely convenient.
  8. Paired with a 4k seamless output card to achieve seamless switching
Parameter
Protocol HDMI2.0 standard, HDCP2.2 protocol
Gain 0 dB
Pixel bandwidth 300MHz, all digital
Interface bandwidth 3.4Gbps, all digital (10.2Gbps in total, 3.4Gbps for each color)
Maximum supported resolution 4Kx2K@60Hz
Bit clock jitter (Clock Jitter) <0.15 Tbit
Bit rise time (Risetime) <0.3Tbit (20%--80%)
Bit fall time (Falltime) <0.3Tbit (20%--80%)
Maximum transmission delay 5nS (±1nS)
Interface 4-way HDMI-A female interface/4-way 3.5mm audio interface
Signal strength T.M.D.S.+/-0.4Vpp
Minimum/maximum level T.M.D.S.2.9V/3.3V
Impedance 50Ω
EDID Support EDID management and learning
Maximum DC bias error 15mV
Recommended maximum input/output distance input less than 20 meters, at 1080P resolution (it is recommended to use certified HDMI dedicated cables, such as Molex TM wire)
Product weight about 0.5KG
Maximum power consumption 6W
Donwload
FT-4IHMIT
