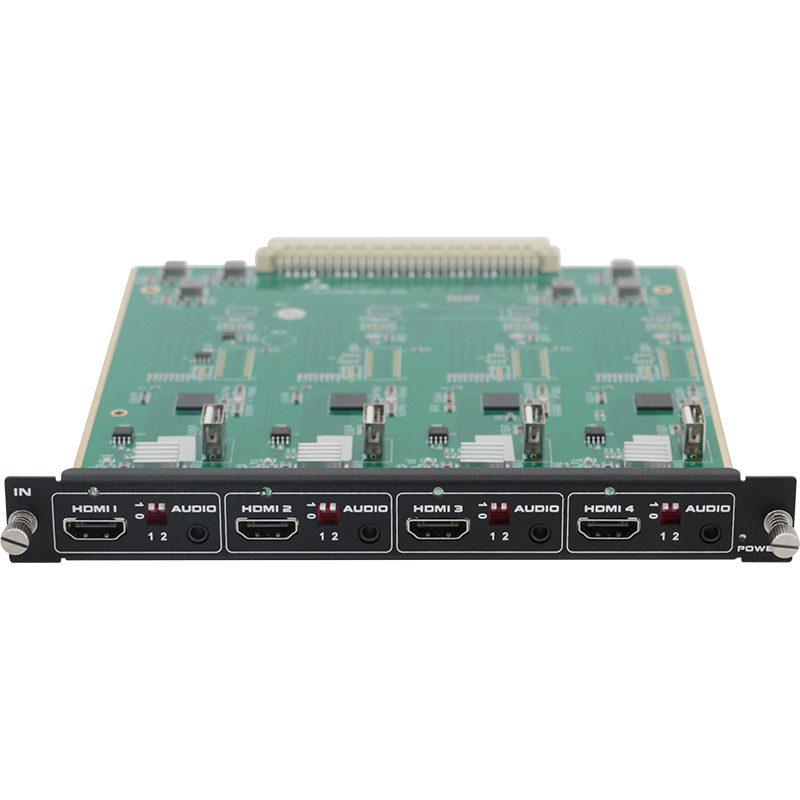

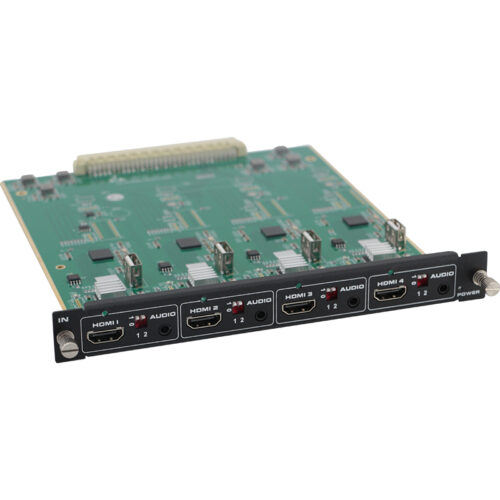

HDMI Input Board FT-4IHMUS

The FT-4IHMUS is a 4-channel HDMI seamless input board supporting 1080p60Hz signals, with embedded or external audio input and adaptive EDID. It enables fast, flicker-free switching and supports hot-plugging and online updates for easy maintenance. Designed for reliability, it complies with HDMI1.3 and HDCP1.4 standards and includes ESD protection.
Categories:
Get Quote
Category Tags , , , ,
Description
  1. FT-4IHMUS is an HDMI seamless input board that supports 4-way HDMI audio and video signal input, supports digital high-definition 1080P60Hz signal, and has a highly integrated board design. The number of boards can be selected as needed, which brings great convenience to application and maintenanc

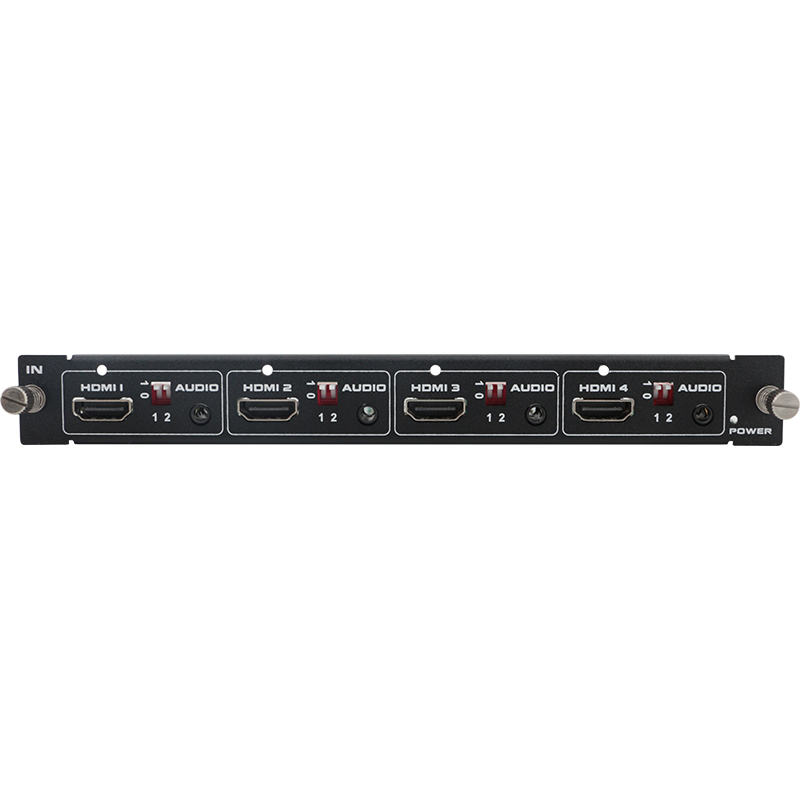

  2. Supports 4-way HDMI-A female interface and 3.5mm audio socket
  3. Supports fast seamless switching, no flicker, no black screen
  4. Supports power-off on-site switching memory protection function, unique ESD static protection function
  5. Supports audio selection input for HDMI embedded audio/external analog audio
  6. Supports image parameter correction
  7. Compatible with HDMI1.3 and HDCP1.4 standards
  8. The maximum resolution supports 1920X1080@60HZ resolution, with a 20-meter cable length with equalization
  9. Supports hot plugging, plug and play, extremely convenient
  10. Supports online update of board program for easy maintenance and upgrade
Parameter
Protocol HDMI1.3 standard, HDCP1.4 protocol
Gain 0 dB
Pixel bandwidth 300MHz, all digital
Interface bandwidth 4.5Gbps, all digital (13.5Gbps in total, 4.5Gbps for each color)
Maximum supported resolution 1920*1080@60HZ resolution
Bit clock jitter (Clock Jitter) <0.15 Tbit
Rise time <0.3Tbit (20%--80%)
Fall time <0.3Tbit (20%--80%)
Maximum transmission delay 5nS (±1nS)
Interface 4-way HDMI-A female interface, 4-way 3.5mm audio input
Signal strength T.M.D.S.+/-0.4Vpp
Minimum/maximum level T.M.D.S.2.9V/3.3V
Impedance 50Ω
EDID Adaptive input EDID
Maximum DC bias error 15mV
Recommended maximum input/output distance input less than 20 meters
Product weight about 0.8KG
Maximum power consumption 15W
Donwload
FT-4IHMUS
