HDMI output board FT-4OHMUS

The FT-4OHMUS is an HDMI output board that supports 1080P resolution, offering 4-way HDMI and analog audio output. It features seamless switching, adjustable resolution, image stitching, and is compatible with HDMI1.3a, HDCP1.4, and DVI1.0 standards. The board also supports up to 25 meters of output with independent audio and hot-swap functionality.
Categories:
Get Quote
Category Tags , , , ,
Description

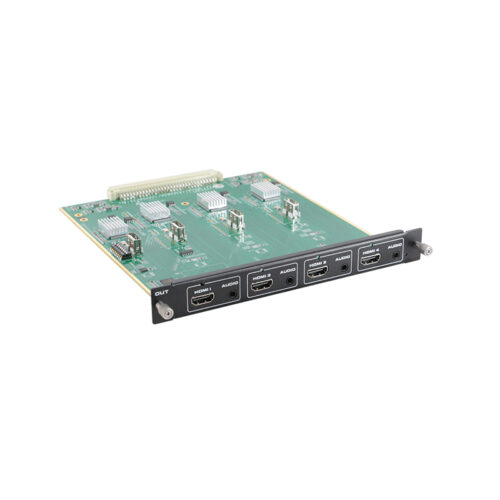

  1. FT-4OHMUS is an HDMI audio and video signal output board that supports digital high-definition 1080P signals. It has a highly integrated board design and can be equipped with any number of boards as needed, which brings great convenience to application and maintenanc

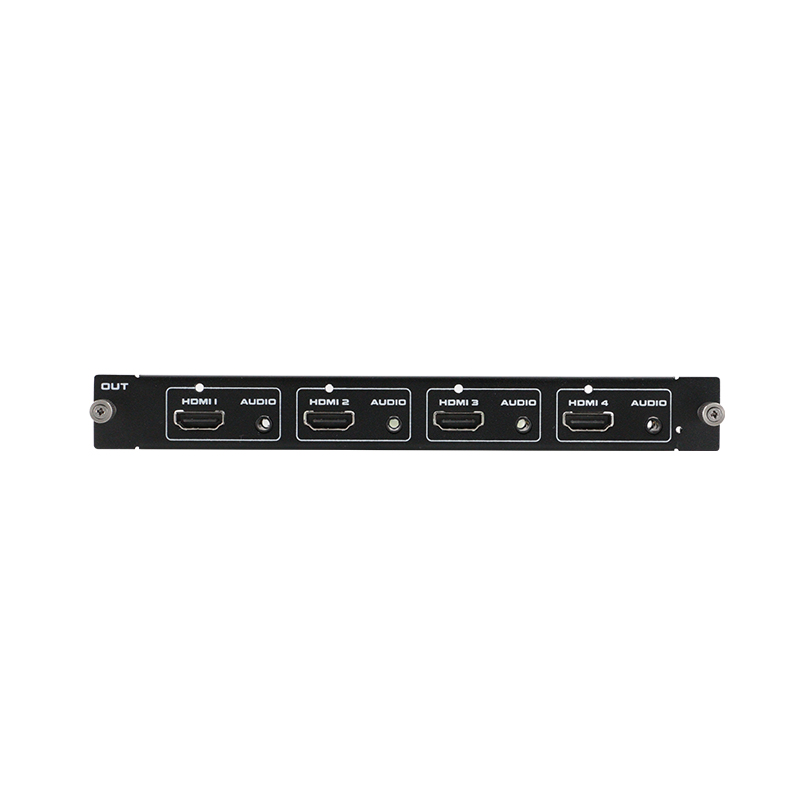

  2. Supports 4-way HDMI-A female interface and 3.5mm audio socket
  3. Supports fast and seamless switching, no flicker, no black screen
  4. Supports power-off on-site switching memory protection function, unique ESD static protection function
  5. Supports simultaneous output of analog audio and HDMI audio
  6. Compatible with HDMI1.3a standard, HDCP1.3 protocol, DVI1.0 protocol
  7. Supports line doubling function, and the maximum resolution supports 1920*1080@60hz
  8. With gain 25 meters long line, with independent audio output
  9. Supports adjustable output resolution and image parameter modification
  10. Support hot-swap, plug and play, extremely convenient
  11. Support image stitching function
Parameter
Protocol HDMI1.3 standard, HDCP1.4 protocol
Gain 0dB
Pixel bandwidth 165MHz, all digital
Interface bandwidth 2.25Gbps, all digital (total 6.75Gbps, each color is 2.25Gbps)
Maximum supported resolution 1920*1200@60hz
Bit clock jitter (Clock Jitter) <0.15Tbit
Rise time <0.3Tbit (20%--80%)
Fall time <0.3Tbit (20%--80%)
Maximum transmission delay 5nS (±1nS)
Interface 4-way HDMI-A female interface, 4-way 3.5mm audio socket
Signal strength T.M.D.S.+/-0.4Vpp
Minimum/maximum level T.M.D.S.2.9V/3.3V
Impedance 50Ω
Maximum DC bias error 15mV
Recommended maximum input/output distance output less than 25 meters, at 1600x1200@60 (it is recommended to use certified HDMI dedicated cables, such as Molex TM wire)
Product weight about 0.5KG
Maximum power consumption 15W
