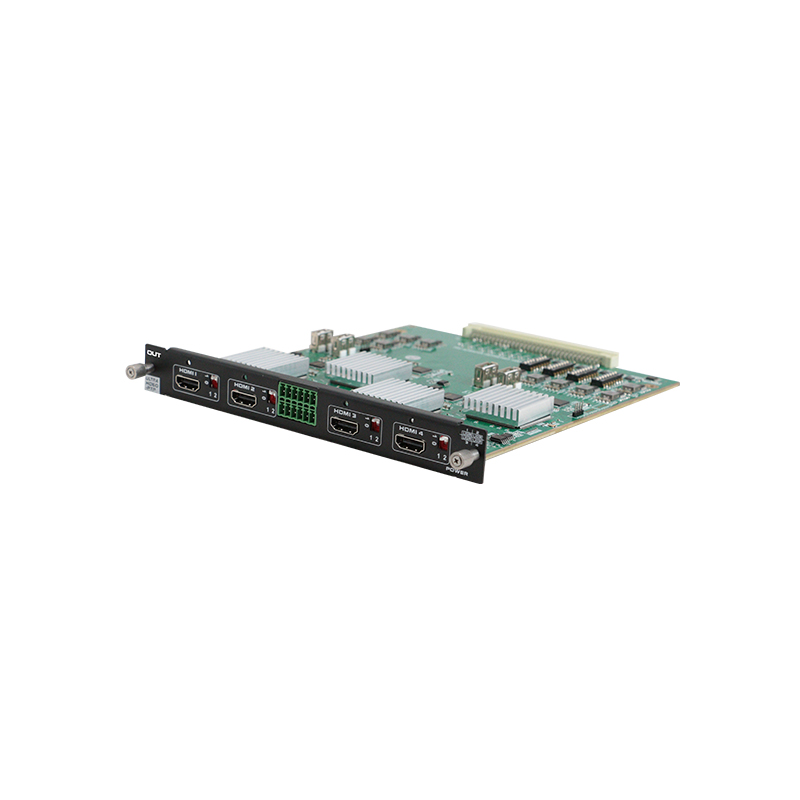

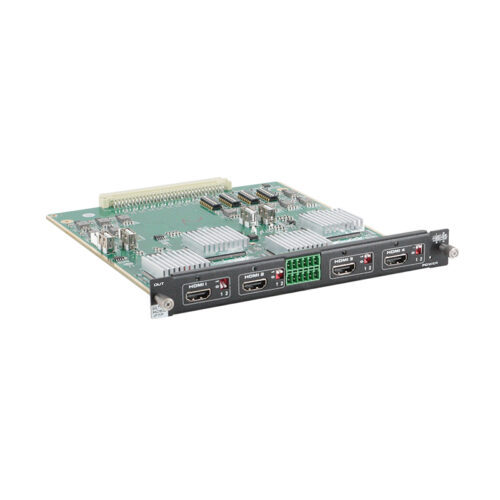

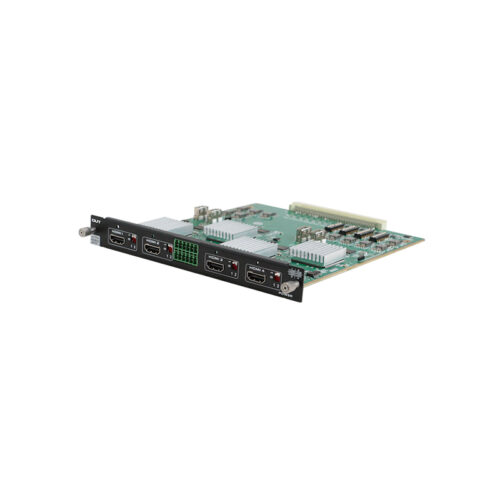

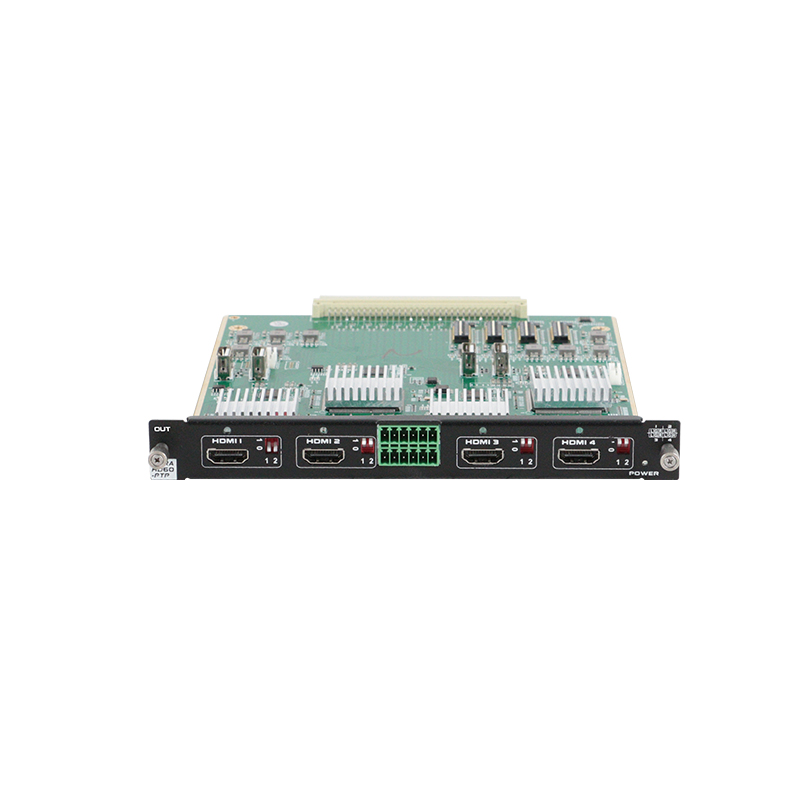

HDMI output board FT-4OUHUS

The FT-4OUHUS is a 4K HDMI seamless output card with 4 HDMI and 4 3.5mm audio interfaces. It supports resolutions up to 4Kx2K at 30Hz, with features like seamless switching, resolution changes, and audio de-embedding. The card is compatible with HDMI1.4 and HDCP2.0 standards and offers plug-and-play convenience.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Support 4-way 30HDMI signal output
  • Support power-off on-site switching memory protection function, unique ESD static protection function
  • Support 3.5mm audio de-embedding
  • Compatible with HDMI1.4 and HDCP2.0 standards
  • Maximum resolution supports 4Kx2K@30Hz, with equalized 10-meter cable length
  • Support hot plug, plug and play, extremely convenient.
  • Support seamless switching across resolutions, input 1080P/4K30 can achieve seamless switching
  • Support output resolution change
  • Support splicing function 10.FT-4OUHUS is an HDMI seamless output card with 4 HDMI and 4 3.5mm interfaces, supporting 4K signals. Highly integrated board design, the number of boards can be selected as needed
    • Parameter
    Protocol HDMI1.4 standard, HDCP2.0 protocol
    Gain 0 dB
    Pixel bandwidth 300MHz, all digital
    Interface bandwidth 3.4Gbps, all digital (10.2Gbps in total, 3.4Gbps for each color)
    Maximum supported resolution 4Kx2K@30Hz
    Bit clock jitter (Clock Jitter) <0.15 Tbit
    Rise time <0.3Tbit (20%--80%)
    Fall time <0.3Tbit (20%--80%)
    Maximum transmission delay 5nS (±1nS)

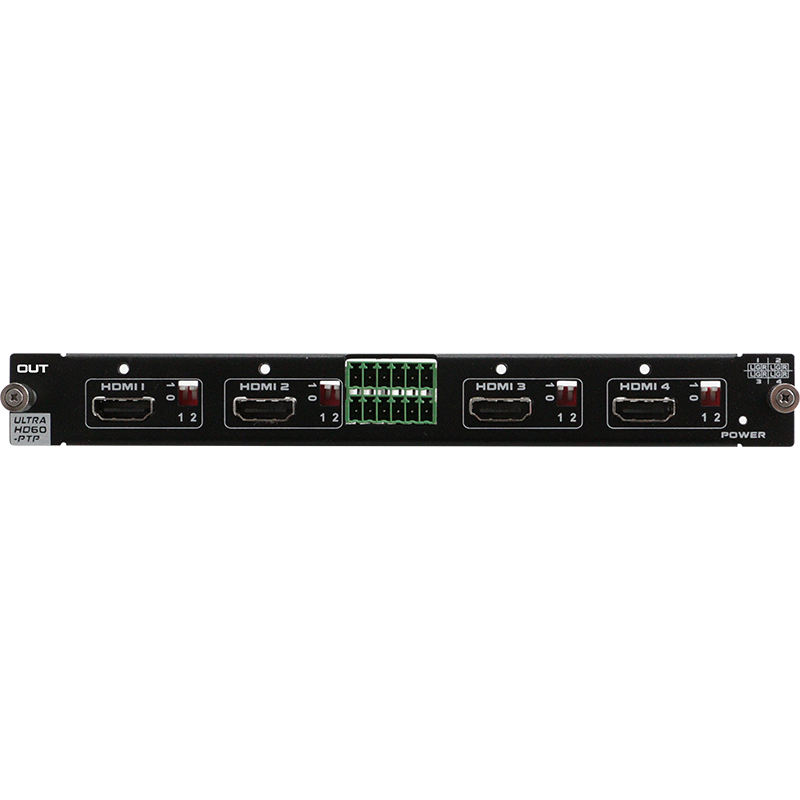

    Interface 4-way HDMI-A female interface/4-way 3.5mm audio interface
    Signal strength T.M.D.S.+/-0.4Vpp
    Minimum/maximum level T.M.D.S.2.9V/3.3V
    Impedance 50Ω
    EDID Support EDID management and learning
    Maximum DC bias error 15mV
    Recommended maximum input/output distance 40/70M
    Maximum power consumption 5W
    Donwload
    FT-4OUHUS
