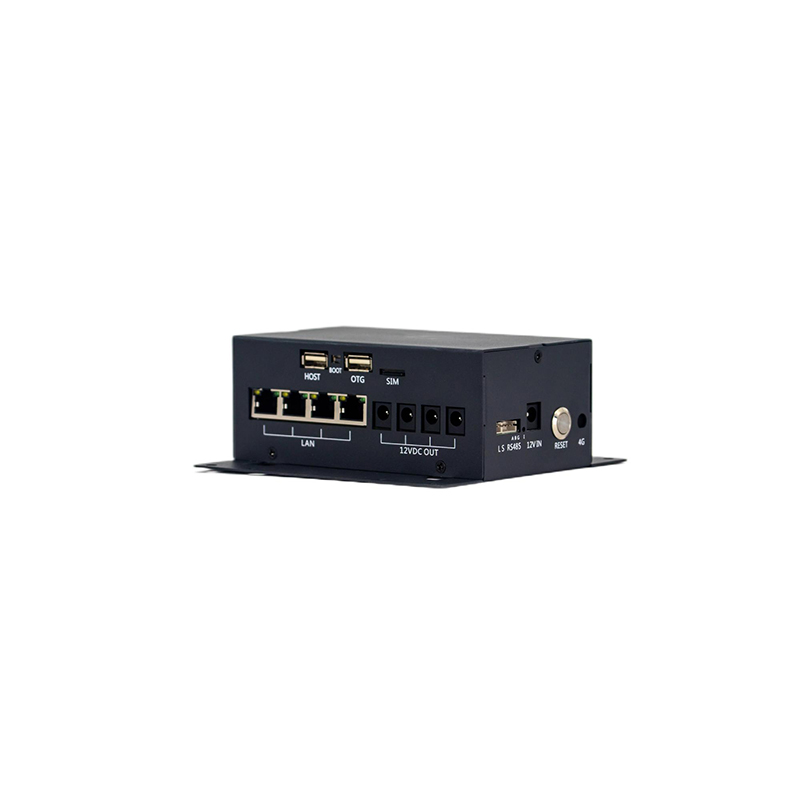

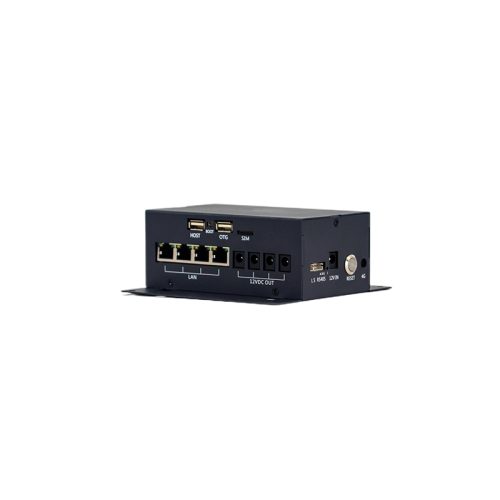

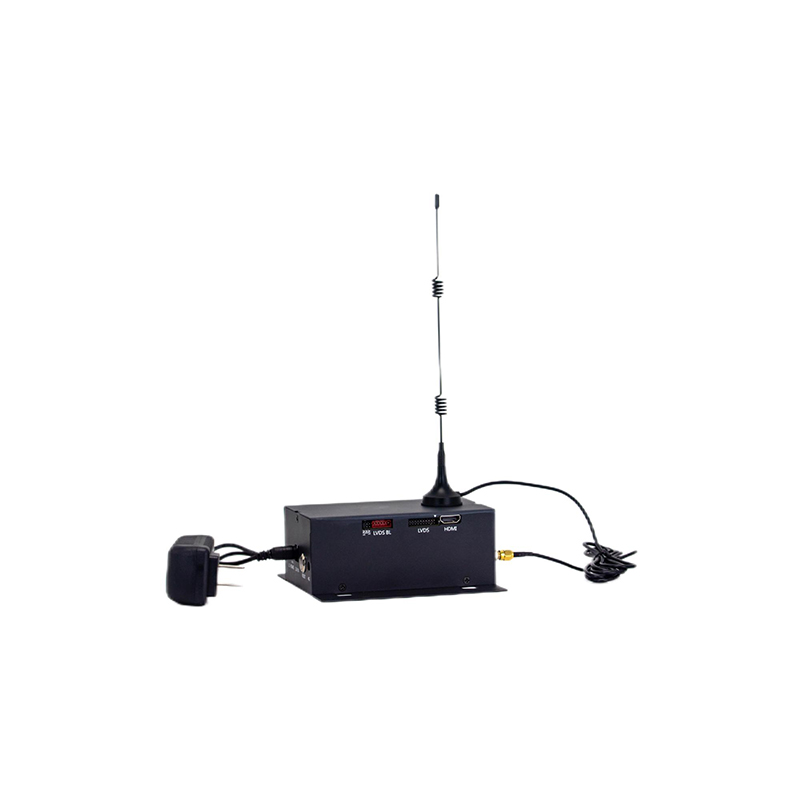

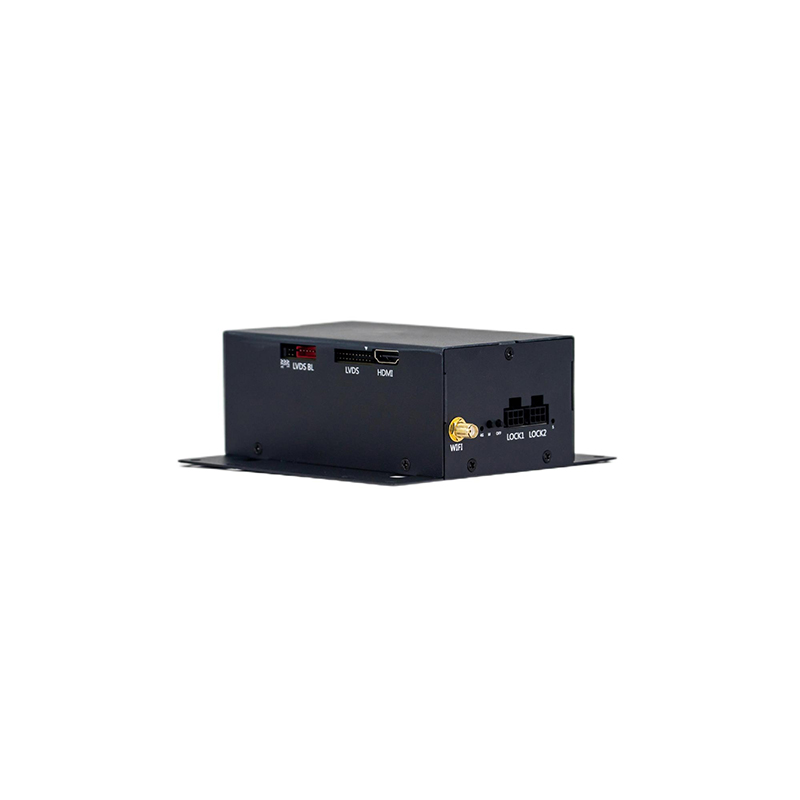

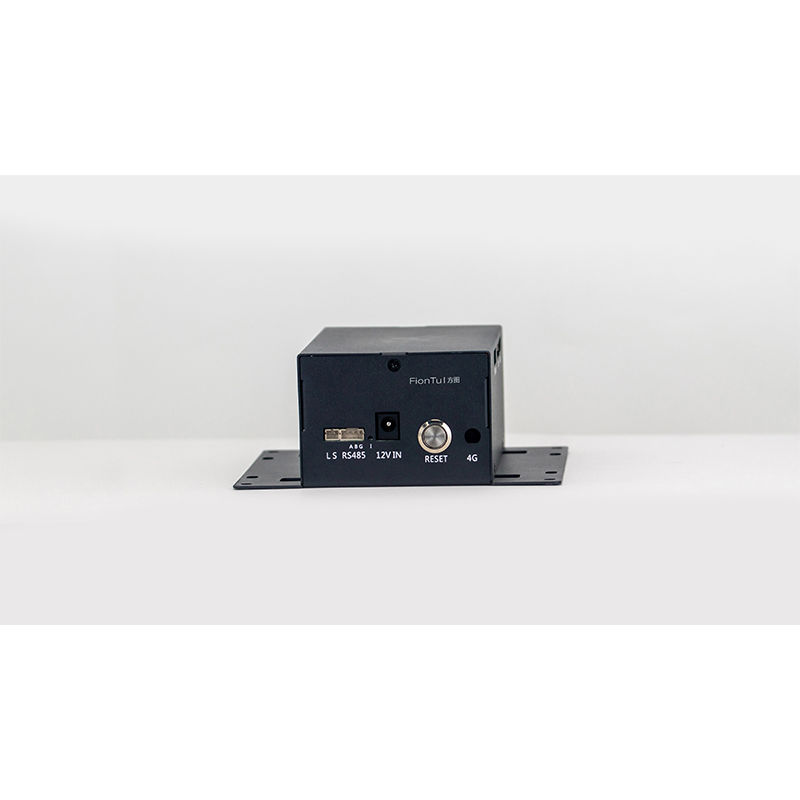

Ink screen wireless Bluetooth base station FT-BT-M2

This device features a high-performance 32-bit quad-core Cortex-A17 processor with a maximum frequency of 1.8GHz, ensuring smooth system operation. It supports dual-screen asynchronous display and a variety of external interfaces for expanded connectivity, including 4G wireless networking capabilities and backup battery support for emergencies. With rich connectivity options and robust processing power, it is well-suited for various applications.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Adopt 32-bit quad-core Cortex-A17 processor high-performance processor, the highest main frequency reaches 1.8GHz, to ensure smooth operation of the system.
  • Support dual-screen asynchronous display: HDMI 4K@60fps, EDP 4Kx2K@30fps, LVDS 1920x1080@30fps.
  • Rich external interfaces, 6 USB interfaces, 1 TP interface, 1 SPI interface, 1 I2C interface, 2 groups of TTL serial ports are perfectly compatible with customer expansion needs.
  • Support 4G CAT4 wireless network, no longer limited to conventional wired network or Wi Fi.
  • Backup battery support, emergency response can be maintained in the event of sudden power outage; function keys and status lights, reset key + power key + multi-function key (customizable), 3 status lights.
    • Parameter
    CPU Quad-core Cortex-A17, the highest main frequency reaches 1.8GHz
    Operating system Android 7.1
    Running memory DDR3*4 =2GB
    Storage memory EMMC 8/16GB, supports TF card expansion
    WI FI 802.11b/g/n
    BT Bluetooth V4.0
    USB 2xUSB TYPE A (one of which supports OTG2.0)
    Serial port 1xRS485 interface
    HDMI 1xHDMI1.4/2.0 4Kx2K@60fps
    Ethernet 4x10/100M RJ45 + 4xDC12V can connect 4 IPCs
    Power input standard 12V /5A
    Donwload
    FT-BT-M2
