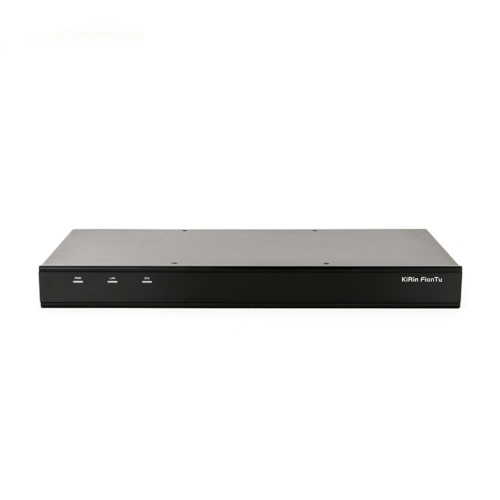

Intelligent central control host T2-DH8-B

This intelligent control gateway is designed for centralized control in command centers, smart homes, and industrial environments. It supports local and cloud programming, remote online debugging, and multiple network protocols, with the ability to control devices through a neural network graph. The system is highly customizable, supporting multi-user, distributed control and seamless integration with third-party platforms.
Categories:
Get Quote
Category Tags , , , ,
Description
  1.  It supports both local and cloud platform online programming,withoutinstalling software, and can be accesseddirectlythrough theChrome browser Gateway IP address or cloud platform
  2. Support remote online debugging, remote online diagnosis, and remote online programming,which greatly savesmanpowertravel costs. Professionals can choose to complete programming online
  3. Artificial intelligence neural network graph control algorithm, support arbitrary complexity control operation graphweaving, realize free design, autonomous will, and closed-loop control
  4.  Neural network diagram control operation mode, master the global operation status, support controlled deviceencapsulation, and effectively view the real-time operation status of each controlled device
  5. Control module grouping is macro inheritance sharing, supports user-builtfunction modules, and can bewritteninthemostpopular network scripting language JavaScript
  6. SupportSharing resources on the cloud platform, whether self-built modules, macro module grouping, or user graphiccomponent group, can be shared on the cloud platform and form a sharing community
  7. Supportthree sets ofindependent user control interfaces atthe same time, support multi-user, cross-platform, distributedcontrol, suitable for multi-user cluster control scenarios
  8. Support multiple network control protocols. In addition to standard TCP,Udp, Telnet,Http protocols, other general orprivatenetwork protocols can also be added
  9. Support any Linux+ platform, free migration, and can freely migrate the running package and integrate it withthethird-partyproduct platform for different application requirements
  10. This product adheres to the concept of solidity and reliability and is suitable for various high-reliability occasions: combatcommand center, government conference cluster, special application vehicles, etc
Parameter
 CPU (main)  i.MX ARM Cortex-A7 528MHz  Operating system  Linux 4.1.15 kernel
 Memory  512M DDR3 RAM  Flash  4096M EMMC
 LED 3xLED system status indicator  I/O  8x digital I/O input
 USB  1xUSB interface  RST  1xRST system reset button
 Power supply  24VDC 1A  Installation method  standard 19-inch cabinet or flat installation
 Working environment temperature  5℃ to 45℃  Working environment relative humidity  10% to 90%
 Dimensions and weight Height: 45mm (excluding foot pads) Width: 430mm (excluding standard cabinet installation ears) Depth: 192mm (excluding terminal strips)
 Weight  about 3.2kg (excluding packaging and accessories)

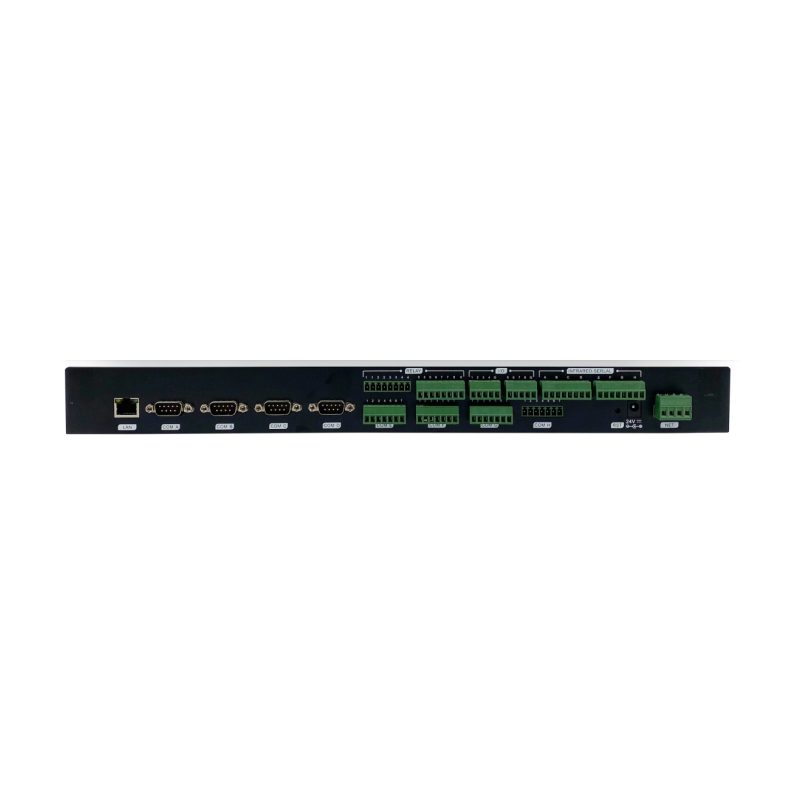

 INFRARED–SERIAL 8 - infrared or unidirectional RS-232 serial communication port
COM (A, B, C, D) 4 - DB9 bidirectional RS-232 serial communication port
 COM (E, F, G, H) 4 - 7PIN bidirectional RS-232/422/485 serial communication port
LAN 1x RJ45 10M/100M Ethernet interface
RELAY 8 - isolated low-voltage relay (normally open contact) 30VDC/AC 1A
RES  1xRES system reserved debugging interface
