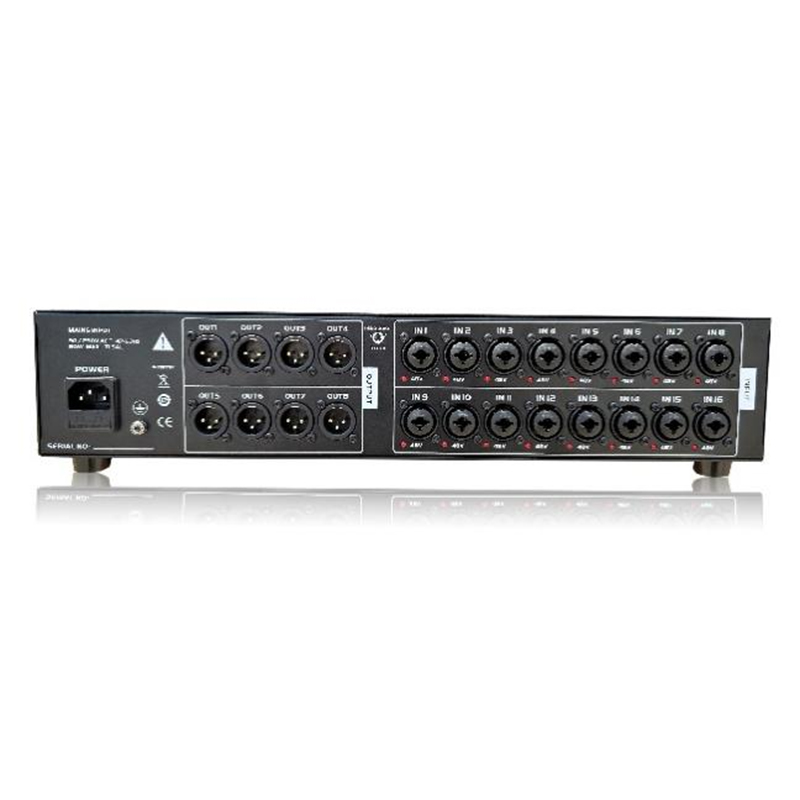

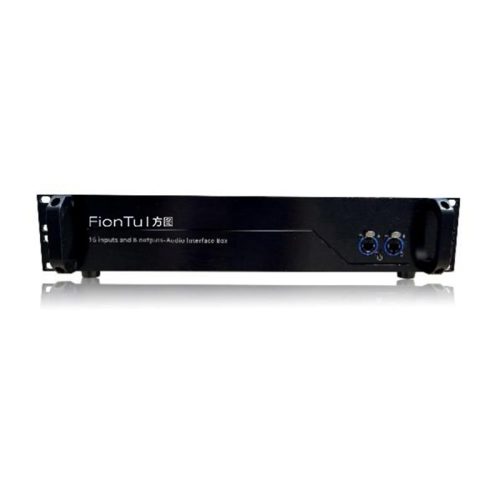

Interface Box FT-MIJ1608

This 16-channel microphone input system features 8 balanced XLR outputs and ultra-low latency network transmission, supporting CAT6 cable distances up to 80m. With a durable structure, remote control startup, and high-quality audio performance, it ensures reliability and long service life. Ideal for professional audio setups, it combines precision engineering and robust connectivity.
Categories:
Get Quote
Category Tags , , , ,
Description
  • 16-channel high-quality microphone input channels.
  • 8-channel analog balanced XLR output channels.
  • Network transmission has ultra-low latency.
  • The transmission distance of CAT6 cable can reach 80m.
  • Dual expansion ports, no expander or router required.
  • Can be remotely controlled to start up through the digital console.
  • The whole machine is made of high-quality components.
  • The sturdy and durable structure ensures a long service life.
    • Parameter
    Input
    Microphone/line input  1-16 balanced, XLR and 1/4TRS jacks
    Input sensitivity (XLR/TRS)  XTR1.5mv, TRS7mv
    3 .Input analog gain  -32db to 10db, 0.6~0.7 steps
    Maximum input level (XLR/TRS)  +19dBu/+29dBu
    Input impedance (XLR/TRS)  MIC＞5K, LINE＞10K
    Output
    Mix 1-8AUX  balanced, XLR,
    Output impedance  <75Ω
    Nominal output  +4dbu=0db level meter reading
    Residual output noise  -91dbu
    Dynamic range  112dB
    Signal-to-noise ratio  XLR≥92db,TRS≥82db
    Maximum output voltage  7VAC MAX
    Distortion  <0.0003% (1Khz Full Power)
    Frequency response  20HZ-20KHZ +/- 0.5db
    Product size/weight Length*width*height  480*290*100MM (length includes 6.35 input seat, width includes side panel, height includes machine feet; knobs are not included)
    Net weight  6kg
    Donwload
    FT-MIJ1608
