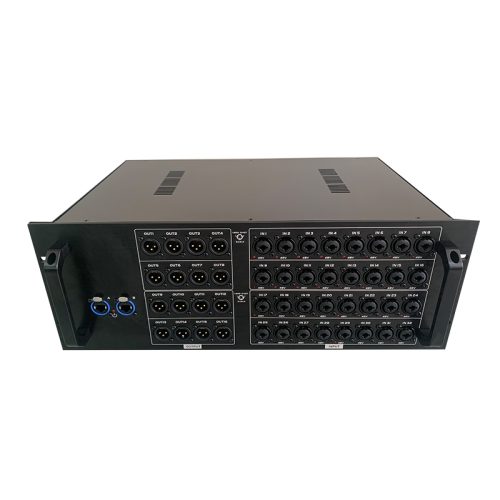

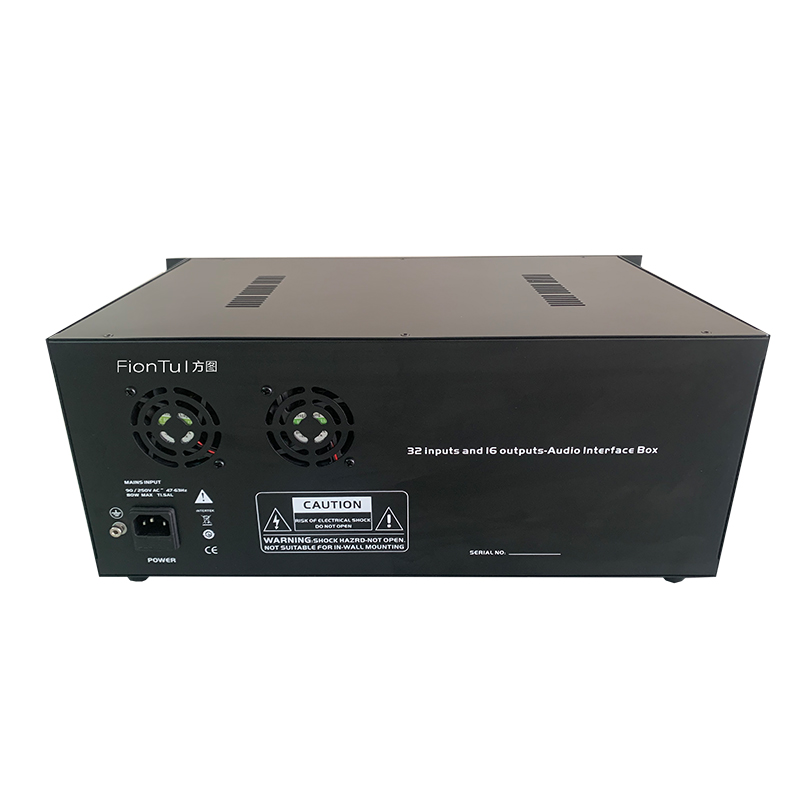

Interface Box FT-MIJ3216

This 32-channel audio system offers high-quality microphone inputs and 16 balanced XLR outputs, with ultra-low latency network transmission over CAT6 cables up to 80m. Designed with dual expansion ports and remote startup capabilities, its durable construction ensures reliable performance for professional audio environments.
Categories:
Get Quote
Category Tags , , , ,
Description
  • 32 channels with high-quality microphone input channels.
  • 16 analog balanced XLR output channels.
  • Network transmission with ultra-low latency.
  • CAT6 cable transmission distance up to 80m.
  • Dual expansion ports, no expander or router required.
  • Can be remotely controlled to start up via digital console.
  • The whole machine is made of high-quality components.
  • Rugged and durable structure ensures long service life.
    • Parameter
    Input
    Microphone/line input  1-32 balanced, XLR and 1/4TRS jacks
    Input sensitivity (XLR/TRS)  XTR1.5mv, TRS7mv
    Input analog gain  -32db to 10db, 0.6~0.7 step
    Maximum input level (XLR/TRS)  +19dBu/+29dBu
    Input impedance (X LR/TRS)  MIC＞5K, LINE＞10K
    Output
    Mix 1-16 AUX  Balanced, XLR,
    Output impedance  <75Ω
    Nominal output  +4dbu=0db level meter reading
    Residual output noise  -91dbu
    Dynamic range  112dB
    Signal-to-noise ratio  XLR≥92db, TRS≥82db
    Maximum output voltage  7VACMAX
    Distortion  <0.0003% (1KhzFullPower)
    Frequency response  20HZ-20KHZ+/-0.5db
    Product size/weight
    Length*width*height  480*290*100MM (length includes 6.35 input seat, width includes side panel, height includes machine feet; knobs are not included)
    Net weight  6kg
