Mixer FT-MX6416D

This network digital audio mixer features a 40-bit floating-point DSP processor, supporting 64 input channels and 16 output channels with Dante64X8 interface. It includes built-in WiFi for control via iPad or Windows, automatic mixing algorithms, and advanced audio processing capabilities. The mixer is designed for professional audio systems with real-time monitoring and remote control options.
Categories:
Get Quote
Category Tags , , , ,
Description

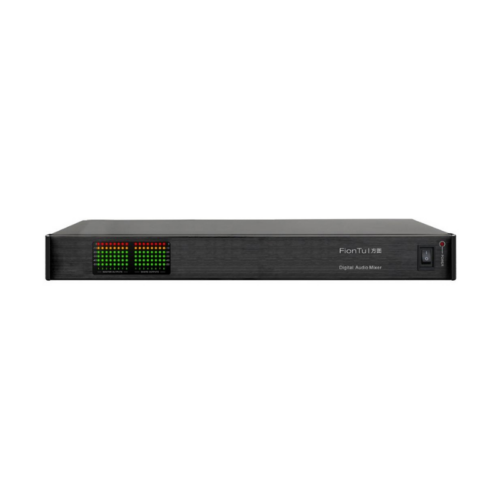

  • This product is a network digital audio mixer, using a high-performance 40-bit floating-point DSP digital signal processor, supporting 48K24bit sampling rate, with 64-channel input, 16-channel output Support Dante64X8, built-in 64X16 automatic mixing matrix Built-in Wifi module, can support iPad, Windows system control, up to 10 control devices can be used for synchronous control Standard 1U all-metal chassis, simple panel display, display input and output channel level values, and can indicate the opening channel Fully automatic work, no special management required
  • Using a high-performance 40-bit floating-point DSP digital signal processor, supporting 48K24bit sampling rate
  • Built-in WiFi module, support iPad, Windows system control, support up to 10 control devices at the same time
  • Support Dante64X8 interface
  • Support 64-channel Dante input, 1-32 channels use DSP algorithm for automatic mixing, 33-64 channels support analog input conversion

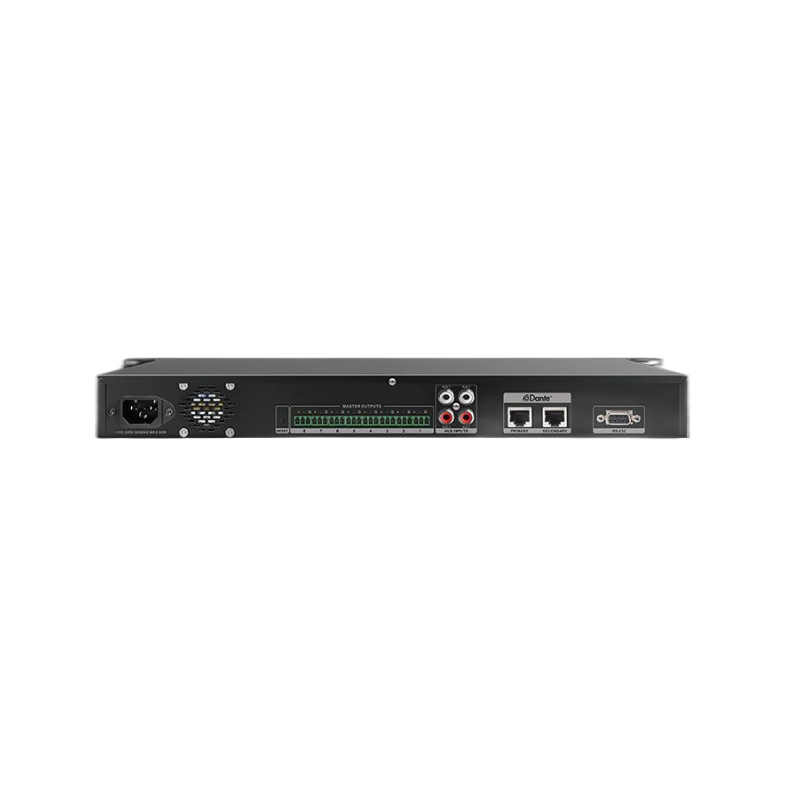

  • Support 16 channels of independent output without affecting each other, including 8 channels of analog signal output and 8 channels of Dante digital signal output
  • Support 4-way linear input (RCA lotus socket), which can be switched arbitrarily between 33-64 channels
  • Built-in audio processing algorithm: support high and low pass filters, limiters, audio automatic mixing
  • Input supports 4-band parametric equalization, frequency, Q value, and adjustable amplitude
  • Output supports 16-band parametric equalization, frequency, Q value, and adjustable amplitude
  • Support high and low pass filters with adjustable multi-order frequency division slope, which can show better transient response
  • Support encoders with scale indication to control four-way volume, and any input/output channel can be set
  • Support 32-way sound automatic mixing channel independent setting
  • Support adjustable hold time
  • Support display of real-time volume display, mute display, distortion display, output LINE/MIC display and other indicators
  • Support each encoder with an OLED display to display the channel name and channel volume value
  • Control mode: Support RS-232 interface, support extended camera tracking
  • Support TCP/IP connection mode, can connect to special software to realize remote control, remote diagnosis and upgrade of conference system
    • Parameter
    Dynamic range Analog-to-Analog: 100dB
    THD+N distortion <0.05%
    S/N signal-to-noise ratio 118dB
    Common mode rejection ratio >60 dB
    Number of input channels AUXx4. Dantex64
    Maximum input level Channel input AUX input (lotus): +25dBu
    Number of output channels Analogx8, Dantex8
    Maximum output level Line (+0): +21dbu MIC (-20): +1dbu
    Dante interface 64 (input)X 8 (output)
    AD/DA conversion 24bit, 48KHz
    Internal processing 40-bit, floating point DSP
    DSP functions input, output equalization, limiter, howling suppression,Matrix control, threshold control, high and low pass filter
    Audio frequency response 20hz-20khz
    Network interface 10/100/1000 Mbps Ethernet, Dante digital audio
    Power consumption AC110V, AC240V50/60HZ (60W)
    Dimensions (width*height*depth mm) 410*43*206
    Weight 2.5KG
    Donwload
    FT-MX6416D
