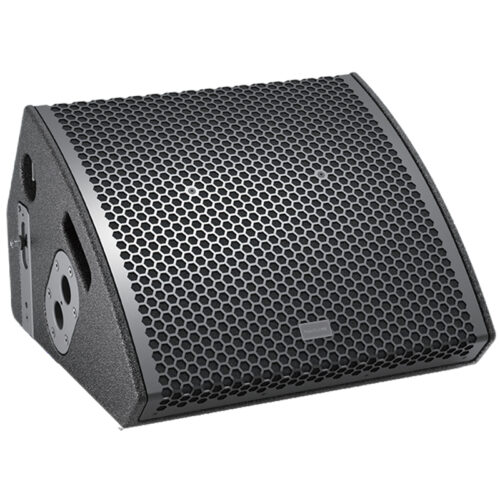

Monitor speaker quantum 3 L3

This is a 3-way speaker with a built-in design featuring a 70° x 60° coverage angle. It includes a 10” paper cone bass, two 5” midrange drivers, and a 44mm compression tweeter. The speaker has a frequency response of 40Hz to 18kHz, a peak SPL of 131dB, and is constructed from durable Baltic birch plywood with polyurea paint.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Built-in 3-way design.
  • 70° (horizontal) x 60° (vertical).
  • 3-way single driver 4 units.
  • Two angle designs to meet different application scenarios.
  • Ultra-short path horn design achieves better directivity control and reduces frequency interference between multiple speakers.

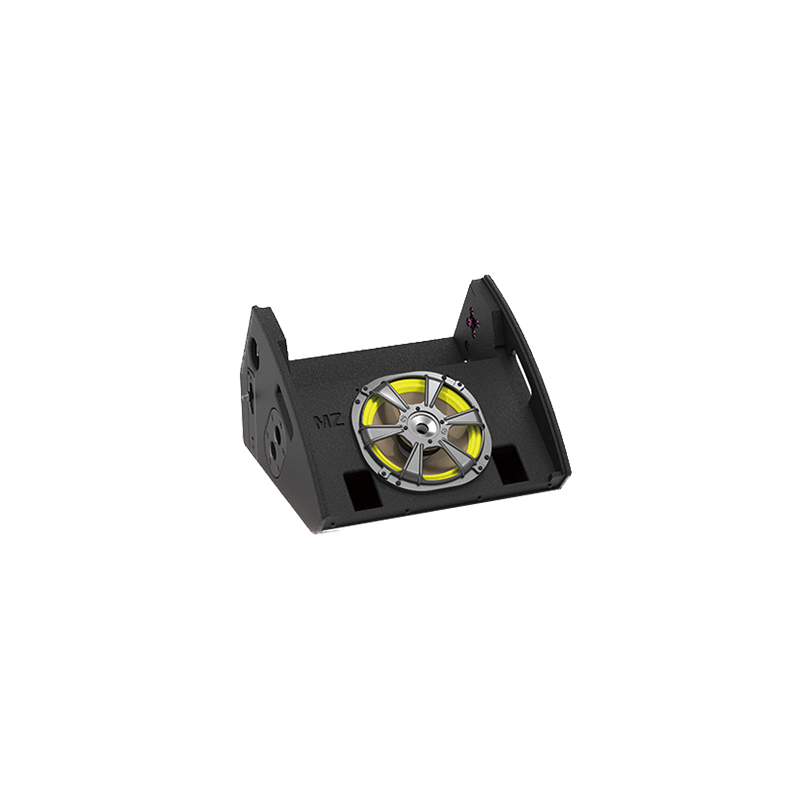

  • The detachable mid-high frequency module is also a small full-range speaker.
    • Parameter
    Frequency response range (-10dB) 40Hz~18kHz
    Maximum sound pressure level SPL 131dB SPL peak
    Coverage angle horizontal (H) 70°, vertical (V) 60°
    Unit structure 1x10 paper cone bass, 2 x 5″ paper cone midrange, 1 x 44mm compression tweeter
    Nominal impedance  8Ω
    Power (AES)  300W
    Box  Baltic birch plywood
    Surface paint  polyurea paint
    Dimensions (WxHxD)  500x480x330mm
    Weight  22.6kg/49.8lbs
    Donwload
    L3
