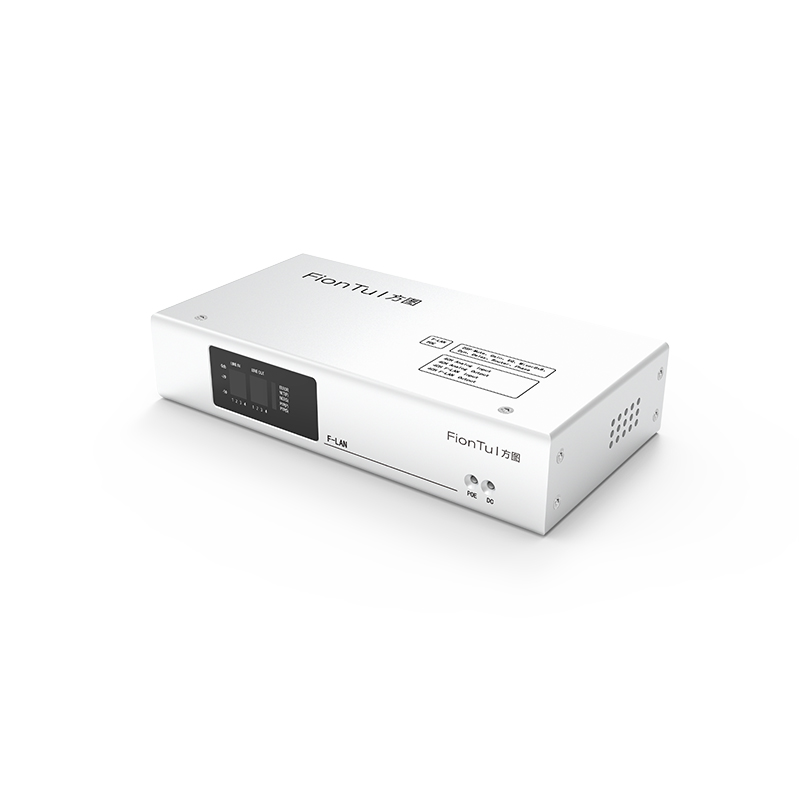

Network Audio Interface FT-NDB44P

This product supports F-LAN protocol and FT-Designer software for easy setup and debugging. It features 4 balanced line inputs/outputs with DSP processing capabilities, including equalization, mixing, and delay functions. The device supports PoE and external power supply options, with a built-in LED display for status and level monitoring.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Support F-LAN protocol
  • Support FT-Designer software debugging

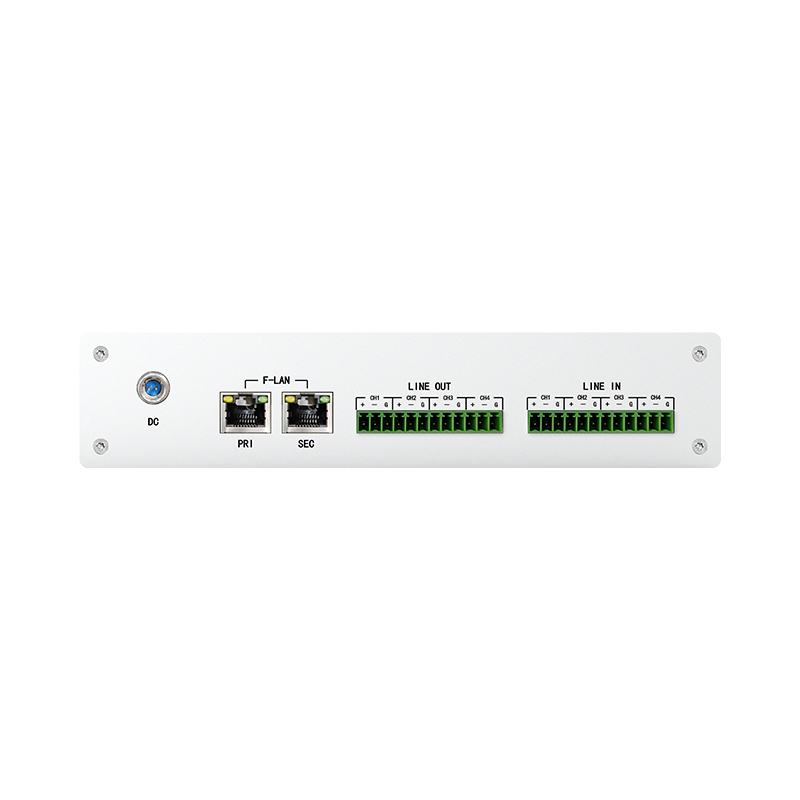

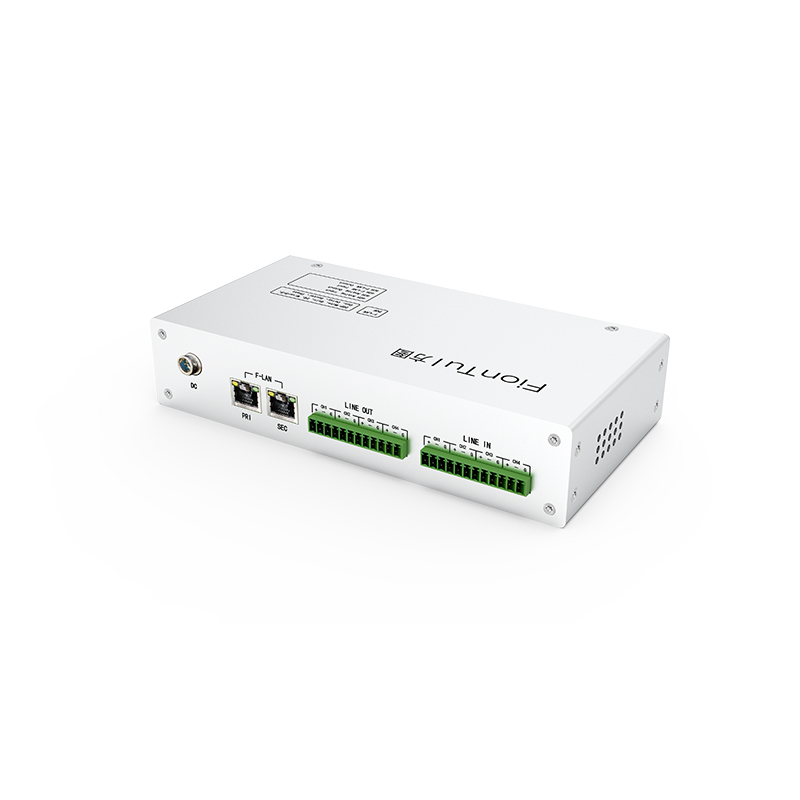

  • Support 4 balanced line inputs, 4 balanced line outputs
  • Line input/output reference level +4dBu, maximum level +24dBu
  • Support dual 100M/1000M network interfaces, support switch mode, active/standby redundant mode
  • Built-in DSP processing, including frequency division, equalization, dynamics, delay, volume, mixing, etc.
  • DSP parameter control and status monitoring can be completed through the network
  • Support network PoE power supply and external power adapter power supply

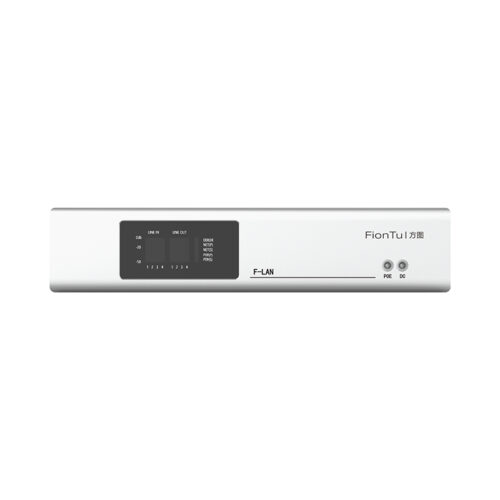

  • The panel comes with LED dot matrix, intuitively displaying the level meter and the working status of the whole machine
    • Parameter
    Power supply POE, voltage DC12 V/1A
    Working current (peak) 1000 mA
    Sampling rate 48 KHz, 24 Bit
    Maximum input 12 dBu
    Signal-to-noise ratio 106dB @12dBu，1kHz
    Total harmonic distortion -79dB @12dBu，1kHz，20kHz LPF，A-wt -79dB @12dBu，1kHz，20kHz LPF，A-wt
    Frequency response 20Hz-20kHz
    Noise floor 22uVrms @20kHz LPF 22uVrms @20kHz LPF
    Channel isolation <-110dB @0dBu，1kHz
    Common mode rejection ratio >57dB @ 0dBu，1kHz
    System delay <1ms
    Balanced input impedance 11.5kΩ
    Output impedance 100Ω
    Operating temperature -20℃--80℃
    Donwload
    FT-NDB44P
