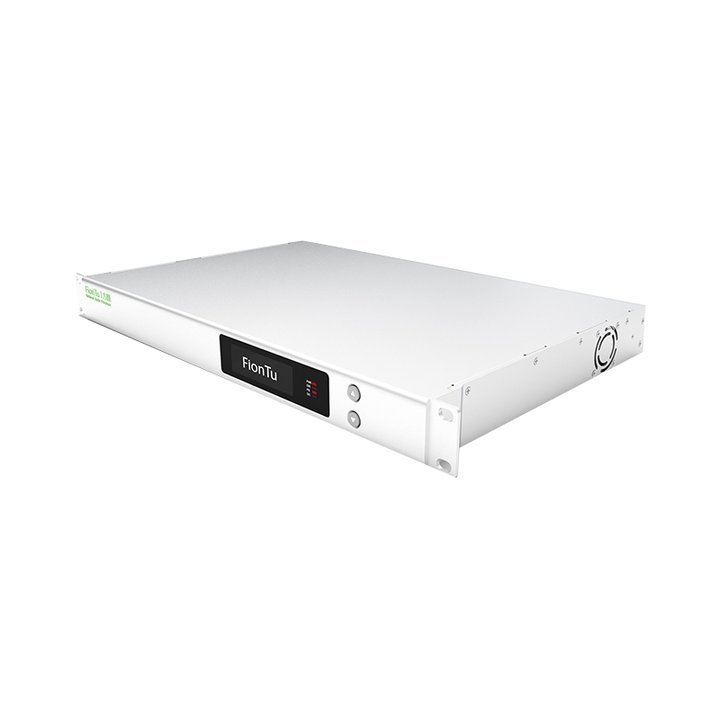

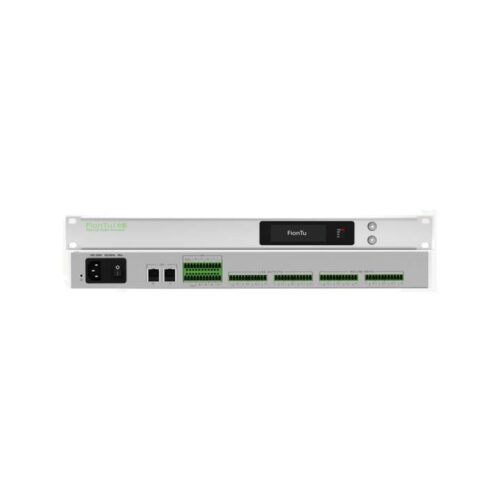

Network Audio Processor MBP50

This network audio processor features a Cortex-A9 dual-core + FPGA + DSP architecture with modular design and FT-Designer software for real-time system control and management. It supports 16x16 network and 8x8 analog audio channels, AES67/Dante compatibility, and advanced audio algorithms, making it suitable for venues like conference rooms, theaters, and hospitals. Its design prioritizes flexibility, high-quality audio processing, and easy integration with Fangtu's ecosystem.
Categories:
Get Quote
Category
Description
  • This product is a network audio processor, designed with Cortex-A9 dual-core + FPGA + DSP architecture, using Linux operating system, built-in ADI's latest SHARC, 64-bit floating-point operations, and high-performance FFT/IIR/FIR hardware acceleration functions for audio processing. The new generation of FT-Designer integrated management platform, FionTu's various audio products, are freely configured in a modular manner, support online and remote management, and can monitor and control the system in real time through the FT-Deginer platform. The audio processing part adopts a modular design scheme, which can be designed freely and flexibly, and uses a software drag-and-drop interface to facilitate the operation of the tuner. In terms of network transmission, FionTu's self-designed F-LAN audio network transmission protocol is used to realize the transmission, monitoring, and management of network audio, and supports audio interconnection with Dante-AES67 and QLAN-AES67
  • Applicable occasions: sound reinforcement system for small and medium-sized conference rooms or multi-function halls, background music system for churches and theaters, public broadcasting system for large venues such as conference centers or hospitals
  • Built-in self-developed F-LAN protocol, supports AES67 standard, and can be interconnected with Dante-AES67 and QLAN-AES67
  • Support 16*16 network audio channels
  • Support 8*8 analog audio input\output channels
  • Input 8 analog audio channels, all can be configured as microphone\line level analog channels, support independent 48V phantom power supply
  • Output 8 analog line levels
  • Support 3.12-inch OLED display on the front panel Display, input and output level display and other device information display
  • Support front panel mechanical physical button adjustment
  • Support 48KHz/24bit sampling rate, 104dB dynamic range
  • Support SPDIF digital audio interface audio input\output
  • Support 2 Gigabit Ethernet ports for network backup connection and FT-Deginer control connection
  • Support 4 GPI interfaces and 4 GPO interfaces, differential signal
  • Support AEC module
  • Support RS232, RS485 control interface
  • Support network central control interface, support panel control
  • Use FT-Designer software to control the system through the network Configuration, control and monitoring
  • Compatible with other existing or future FionTu audio equipment accessories, such as network adjustable directional array sound column FT-L845A, G20-AES67 microphone, network audio interface box, etc.
Audio algorithm
  1. Input module: Each module supports 4 channels of sound, supports level meter display, label customization, phase reverse, independent phantom power switch, gain adjustment, fader adjustment
  2. Output module: Each module supports 4 channels of sound, level meter display, label customization, phase reverse, fader adjustment
  3. Delay module: maximum support 1000mS delay, minimum support 0.02mS delay
  4. Routing module: maximum support 16 *16 routing function
  5. Mixing module: supports up to 32*32 mixing modules, and can adjust the port gain and mute switch of the input and output ports
  6. Dynamic module: includes automatic gain, compressor, limiter, noise gate, expander, limiter
  7. Equalizer module: includes up to 16-band parametric equalizer and 31-band graphic equalizer
  8. Filter module: includes low-pass filter, high-pass filter, low-cut filter and high-cut filter. High-pass and low-pass filters provide LR and Butterworth filter types to choose from, support all-pass filter, FIR filter, etc.
  9. Filter module: includes crossover module and special filter module The frequency divider supports up to 4 frequency divisions, and each frequency point can be adjusted separately. The filter types of each frequency point also have two types of filters, LR and Butterworth, to choose from. It also supports input gain, output gain and output reverse adjustment. Special filters include four types of filters: low pass, high pass, low pass slope and high pass slope
  10. Signal generator module: There are currently two modules available, white noise and sine wave signal, with adjustable gain and frequency
  11. Level meter module: It can monitor the output level meter of the corresponding module in real time. A single module supports up to 8 level meters for simultaneous monitoring
  12. Controller module: Mainly a 2-to-1 selector
  13. Frequency shift howling suppressor: Howling suppression through 0~10Hz frequency shift
  14. Notch howling suppressor: Howling suppression by notching specific frequency points
  15. Automatic mixer: Improve the overall dynamics of the system through the gain sharing mechanism
  16. Reverberation suppressor: Eliminate sound defects such as human voice echo
Parameter
Analog indicators
Frequency response 20Hz~20kHz: +0.21/-0.17
Channel isolation (+4 dB 1k) -85.4 dB
Total harmonic distortion plus noise (THD+N) -20dBFS @ 1kHz: 0.0057%
Channel isolation (+4 dB 20k) -76.4 dB
Noise level (20/20k passband) -80.1dBFS
Equivalent noise -120.3dBu
Noise level (A-weighted) -83.1 dBFS
Delay 2.5ms
Digital indicators
Sampling frequency 48KHz
Microphone input frequency response 20Hz~20kHz: ±0.15dB
Quantization bit value 24bit
Line input frequency response 20Hz~20kHz: ±0.15dB
Output voltage 4.78Vp-p
Noise level (20/20k passband) -126.3dBFS
Time base jitter ≤0.003UI
Noise level (A-weighted) -128.2dBFS
Equivalent input noise ≤-120dBu
Crosstalk Channel isolation (-20dBFS 20~20k) -105.8 dB
Signal-to-noise ratio ≥105.8dB
Level difference Channel level difference (-20dBFS 20~20k) 0dB
Total harmonic distortion plus noise (THD+N) -20dBFS @ 1kHz: <0.0005%
Phase difference Channel phase difference (-20dBFS 20~20k) 0°
Electrical parameters
Rated power consumption 40W
AC frequency 47~63Hz
AC input voltage range 88~265VAC
Dimensions (length, height, width) 482.6mm×44.45mm×26.0mm
