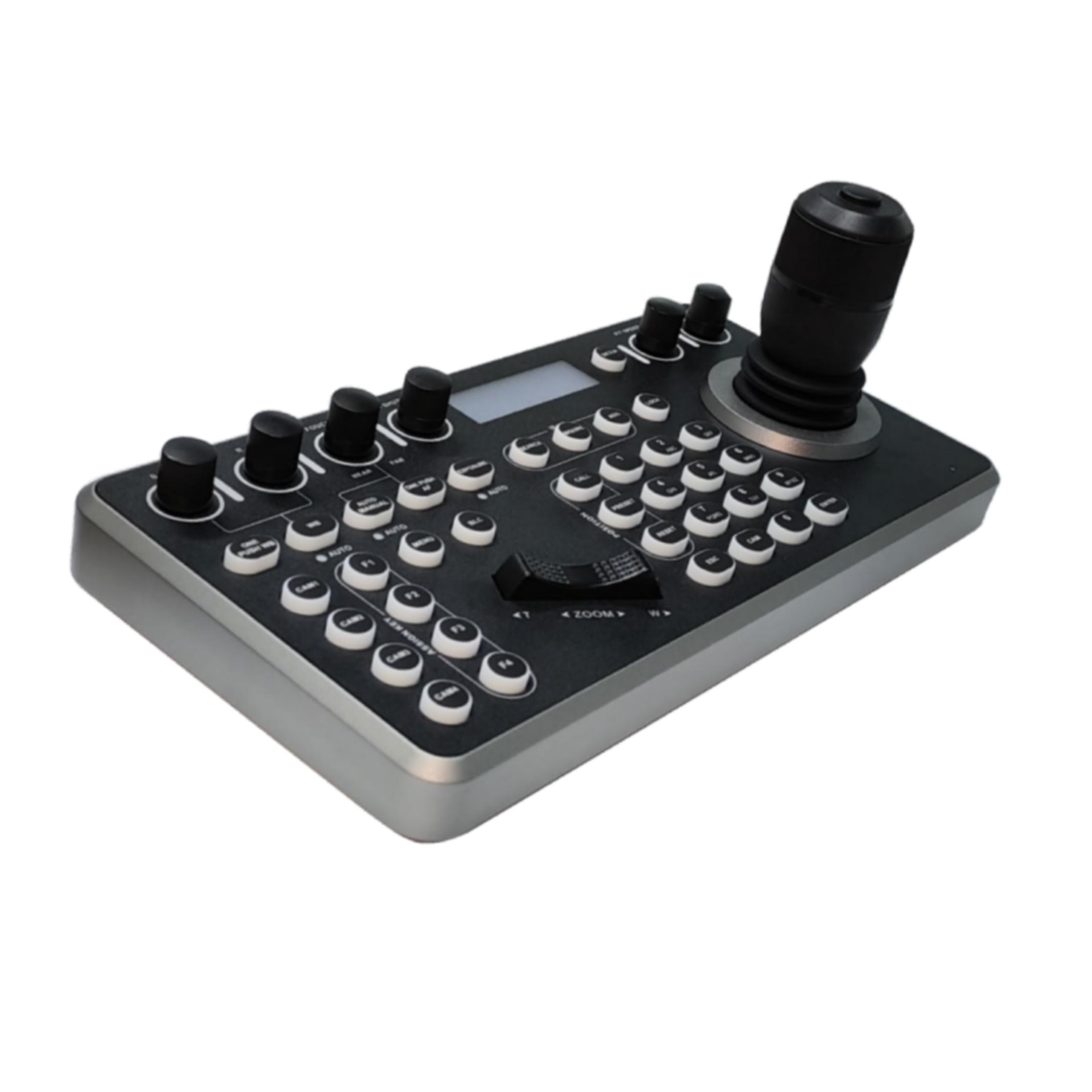

Network control keyboard FT-AK030

This video conference keyboard features a high-end metal design, supports multiple communication protocols, and offers easy control of conference cameras. It includes a four-dimensional joystick for camera control, customizable settings for exposure and focus, and supports both network and analog modes. With quick control buttons, POE power supply, and strong security, it enhances conference camera management.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Supports two control modes: network and analog, and has an independent IP address in network mode
  • Supports VISCA, ONVIF, PELCO-P, PELCO-D, and NDI protocols, and is fully compatible with VISCA
  • Realizes software function control of conference cameras and has central control function
  • The imported variable speed four-dimensional joystick is used for control, which feels comfortable and good. The twisting joystick can directly control the full rotation of the conference camera, the zoom of the lens, and the speed control according to the strength of the joystick control, and the fast and slow rhythm can be controlled at will
  • The zoom of the conference camera is adjusted by the boat switch, which is convenient to operate and powerful
  • Support IE browser to add and configure front-end device parameters
  • The camera exposure, aperture, white balance, focus, backlight compensation, OSD menu, etc. can all be set through keyboard buttons, which is simple, convenient and fast to operate
  • Up to 4 camera quick control buttons and 255 devices can be quickly switched, which is convenient and fast to operate the conference video camera, greatly improving the speed of switching back and forth between multiple cameras
  • Support standard POE power supply, power supply and control can be completed with one network cable, making wiring simpler and more convenient
  • Security protection: Password and Kensington lock protection are provided to prevent illegal operation and setting, and protect the safety of the equipment
    • Parameter
    Communication method Network: RJ45, serial port: RS422, RS485, RS232
    Communication protocol Network: ONVIF, IP VISCA, SONY VISCA OVER IP, NDI
    Serial port  VISCA, PELCO-D, PELCO-P
    Communication baud rate  2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 115200bps
    Interface mode  5PIN crimping terminal (RS422, RS485), RJ45 (RS232/RS485/RS422), RJ45 (network), 8PIN Phoenix terminal (TALLY), POE
    Control joystick four-dimensional (control: up, down, left, right, zoom, confirm)
    Display mode  LCD blue screen
    Power supply  DC12V1A±10%
    Power consumption  6W MAX
    Working temperature  0℃～50℃
    Storage temperature  -20℃～70℃
    Ambient humidity  ≦90%RH (no frost)
    Appearance size  270mm (L) X135mm (W) X110mm (H)
    Donwload
    FT-AK030
    Get Quote
