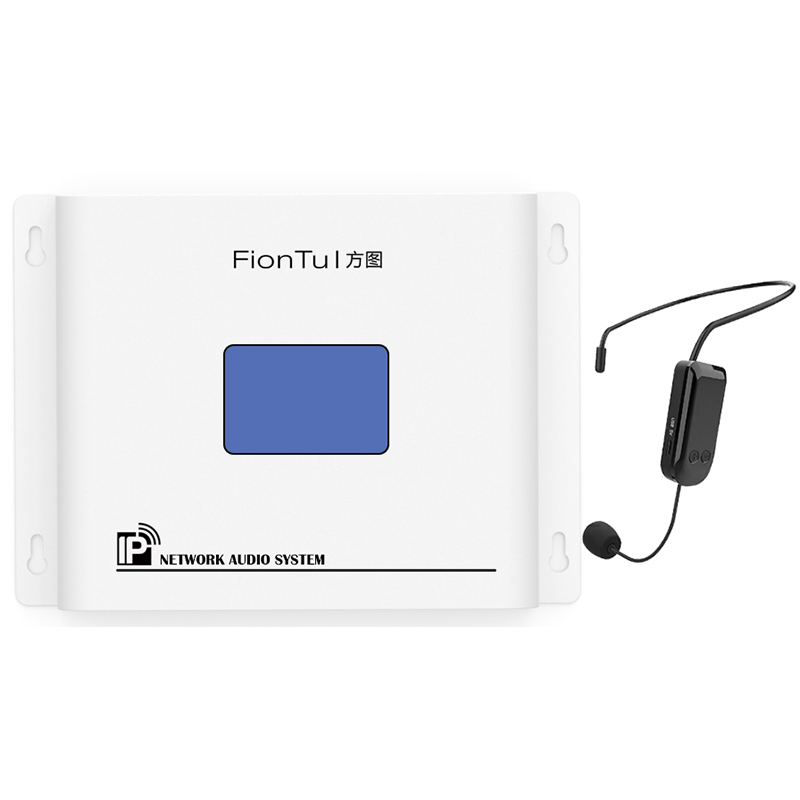

Network terminal (with 2.4G microphone) FT-B1100G

This wall-mounted audio terminal uses embedded DSP technology for high-quality network audio transmission and supports TCP/IP, UDP, and IGMP protocols. It features a 2×25W Class D amplifier, stereo inputs, and USB playback, along with advanced 2.4G wireless microphone transmission and automatic interference avoidance. The device offers intelligent voice prompts, emergency alarms, and customizable audio priorities.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Wall-mounted design, private mold white alloy plastic injection molding, beautiful and elegant craftsmanship
  • The terminal adopts embedded technology and DSP audio processing technology
  • Adopting high-speed industrial-grade chips, the startup time is less than 1s
  • Built-in 2×25W fixed resistance output Class D amplifier module, beautiful sound and strong power
  • Built-in network hardware audio decoding module, supporting TCP/IP, UDP, IGMP (multicast. protocol
  • Realize network transmission of 16-bit stereo CD quality audio signals
  • Stereo audio channel output, can be connected to an external power amplifier or active speaker
  • Stereo line input, 1 microphone input, with independent volume adjustment switch
  • 1 U disk input interface, can realize local U disk playback function
  • 1 short-circuit signal input, can be connected to the linkage trigger signal, can trigger the terminal alarm in an emergency
  • 1 short-distance signal output, can be linked to trigger other devices in an emergency
  • The 2.4G microphone has a long transmission distance. After the connection is successful, the audio data can be stably transmitted in an open area greater than 20 meters
  • The 2.4G transmission distance is long, and the audio data can be stably transmitted in an open area greater than 20 meters
  • 4G+ automatically searches for channels with less interference and completes automatic pairing to ensure that the product does not cross-frequency, has strong anti-interference and stable transmission
  • Multiple 2.5G channels have been expanded to effectively avoid 2.4G signal interference such as WIFI/Bluetooth
  • 48kHz/16bit sampling rate is adopted to meet the requirements of high-quality audio transmission
  • All settings have automatic power-off memory function, and personalized settings are more convenient to use
  • Automatic audio energy detection, when no speech or audio input is detected, the module can output a control signal to control the amplifier to mute
  • Head-mounted design, compact size, ultra-low power consumption
  • Automatic management of terminal amplifier power supply, support software programming pre-opening function
  • Support intelligent voice prompt function when the terminal is newly configured and registered (if the device is connected.
  • It has 1000 levels of custom audio priority silent control function
  • It has unified server authorization operation management function, unified configuration management user and password
  • It has breakpoint playback function of digital audio time lapse to ensure broadcast synchronization effect
  • It has PSTN telephone broadcasting and supports SMS voice broadcasting function
  • It has mobile WIFI on-demand function and supports wireless remote control on-demand function
  • It supports DHCP and is compatible with any network structure such as routers, switches, bridge gateways, Modem, Internet, 2G, 3G, 4G, multicast, unicast, etc.
    • Parameter
    Network interface standard RJ45 input
    Support protocols TCP/IP, UDP, IGMP (multicast)
    Audio format MP3/MP2
    Output power 2×25W fixed resistance
    Frequency response 50Hz~18KHz
    Sampling rate 8K～48KHz
    Transmission rate 100Mbps
    Audio mode 16-bit stereo CD quality
    Harmonic distortion ≤0.3%
    Signal-to-noise ratio ＞70dB
    Audio source output level 1000mV industrial standard crimping terminal
    Audio source output impedance 470Ω
    Ambient temperature 5℃～40℃
    Ambient humidity 20%～80% relative humidity
    Power consumption ≤36W
    Input power ~220V 50Hz
    Dimensions 220×160×43mm
    Weight 1.28Kg
    Donwload
    FT-B1100G
