| Product Features | |
| Feature | Description |
| Dual Output via HDMI and VGA | Supports simultaneous output through HDMI and VGA with different resolutions and display content. |
| Hybrid Display of Computer and Mobile Devices | Allows mixed display of computer and mobile devices. |
| Multiple Mobile Devices Simultaneous Display | Supports multiple mobile devices displaying content simultaneously. |
| Standby Function and Auto Search for Devices | Standby function with desktop extension, auto-search for multiple receiver devices on the same network segment. |
| Resolution and Display Ratio Adjustment | Allows modification of resolution and display ratio during the screen sharing process. |
| Device Username and Type Display | Displays the device name and type when connected to the display device. |
| Receiver Host Router Function | Supports router functionality on the receiving end device. |
| Wired and Wireless Router Functionality | Supports both wired and wireless routing functions, allowing mobile devices to cast screens while staying connected to the internet. |
| Four Sound Sharing Methods | Multiple sound-sharing options including automatic audio sharing when multiple screens are displayed. |
| Mouse and Touch Control | Supports reverse mouse control and 16-point reverse touch control. |
| Customizable Boot and Standby Screens | Customizable boot and standby screens, web management interface, and the ability to modify frequency bands and channels. |
| Adjustable Video Output Resolution and WiFi Settings | Allows modification of video output resolution, WiFi name, and password. |
| Technical Specifications | |
| Parameter | Specification |
| Video Input Resolution | 4K/3840x2160 |
| Video Output Resolution | 1080p/1920x1200 |
| Frame Rate | Up to 30 frames per second |
| Wireless Transmission Range | Up to 30 meters line-of-sight |
| Wireless Transmission Frequency | 2.4 GHz or 5 GHz (default: 5 GHz) |
| Wireless Encryption Protocol | WPA2-PSK |
| Display Aspect Ratio | 4:3 / 16:9 / 16:10 |
| Number of Source Devices Displayed Simultaneously | 4 sources |
| Number of Source Devices Connected Simultaneously | 16 sources |
| Audio Output | 44.1KHz/16bit stereo, via HDMI embedded audio and 3.5mm analog audio output |
| Wireless Transmission Protocol | IEEE 802.11ac/802.11n |
| Wireless Transmission Speed | Up to 867Mbps |
| Selectable Channel Count | 9 (5G) / 11 (2.4G) |
| Transmission Latency | Average latency less than 100ms |
| Power Supply / Consumption | Main unit: 12V/1A, average power consumption: 5W; Button: 5V/500mA, average power consumption: 1.5W |
| Operating Temperature | +5°C ~ +40°C |
| Storage Temperature | -20°C ~ +60°C |
| Storage Humidity | 0 ~ 90% relative humidity, non-condensing |
| Operating Humidity | 0 ~ 90% relative humidity, non-condensing |
| Standard Accessories | 4 transmitters, power supply, storage box, antennas |

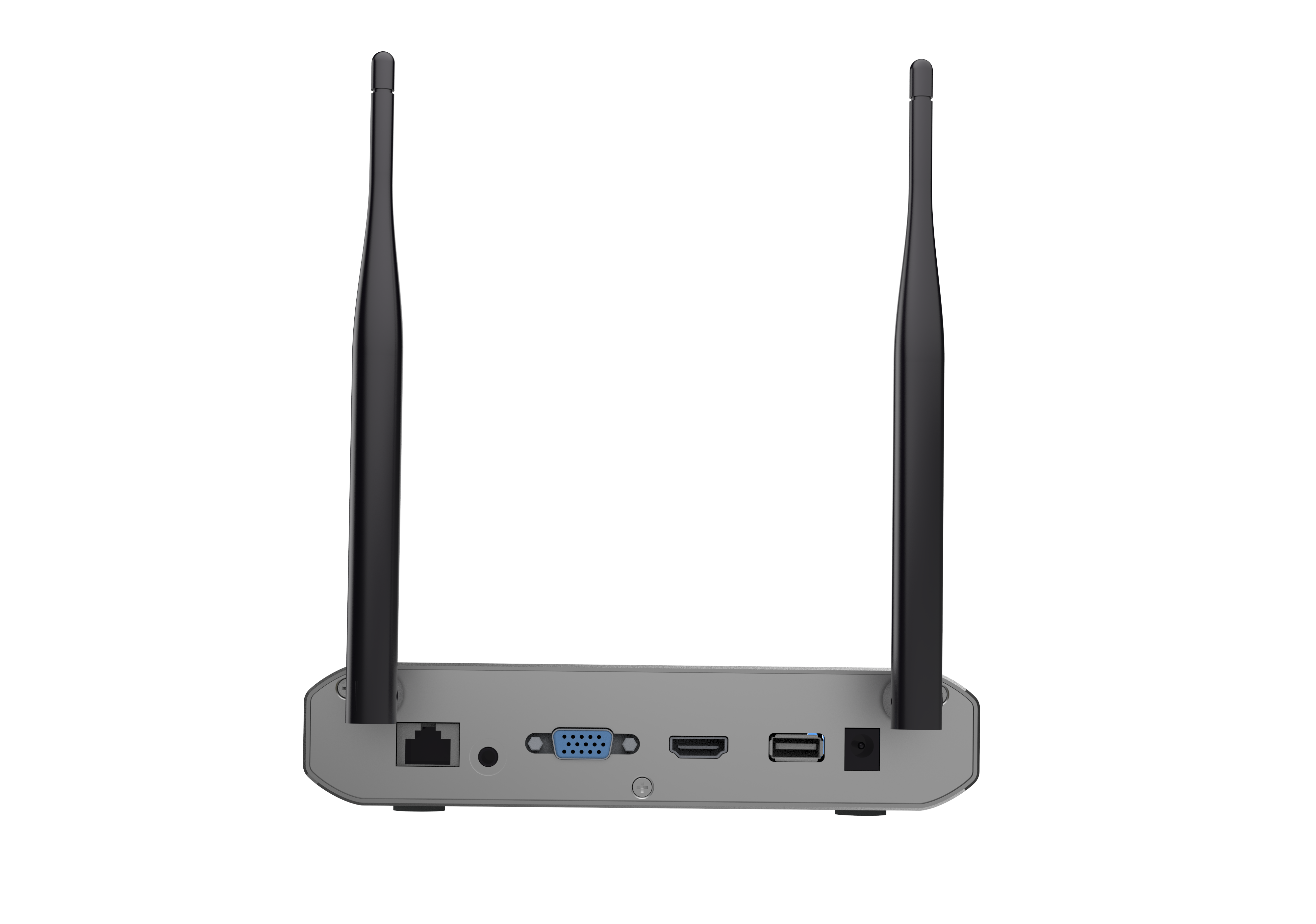

| Hardware Specifications | 1x VGA, 1x HDMI, 1x Network, 1x Standby Switch, 1x 3.5mm Audio, 2x USB, 1x 12V 1A Power Port (Main unit with lock hole) |
| Supported Operating Systems | Windows 7/8.1/10 (32/64-bit), Mac OS X 10.10/10.11/10.12 and above, AirPlay compatible (iOS 9/10/11), Android 5.0 and above (requires ESHOW app) |
