Paperless Lift FT-173DWE

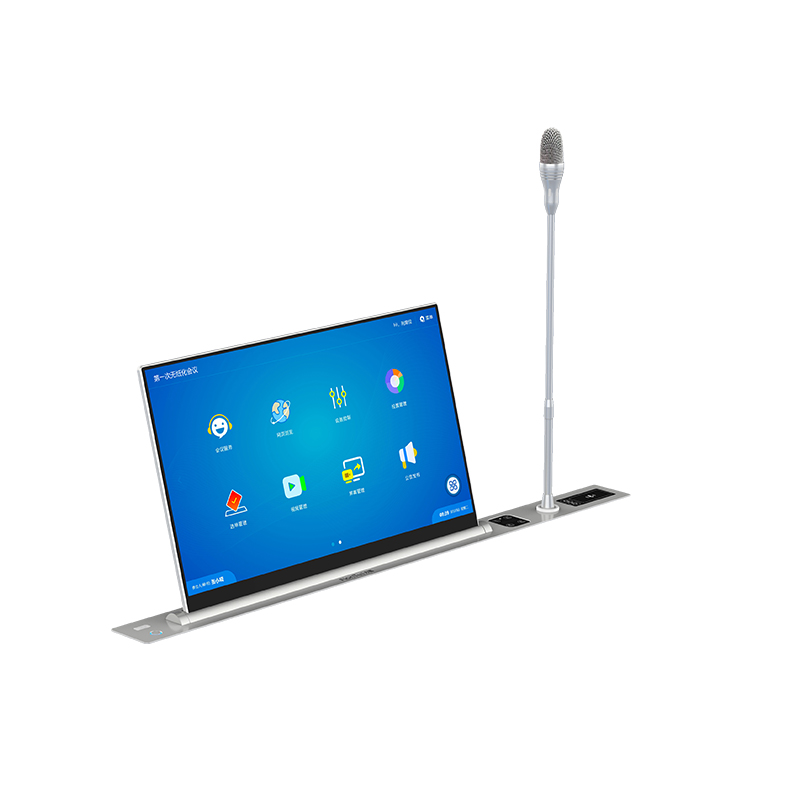

The 17.3-inch ultra-thin HD touchscreen with integrated lifter and microphone offers an elegant design, durable aluminum alloy construction, and ergonomic features, including a back screen for name display. It supports multi-touch, dual-channel signal input (HDMI/VGA), and advanced safety mechanisms. The microphone features automatic straightening, chairman unit customization, and high sound quality with low distortion.
Categories:
Get Quote
Category
Description
  1. The touch ultra-thin high-definition display screen is integrated with the lifter, with no exposed connection wires, no connection back plate, and no exposed screws, ensuring that the lifting display touch screen is beautiful and generous overall
  2. With integrated microphone lift, the microphone lift has an automatic straightening function, and can rise and fall freely regardless of the position of the microphone rod bending
  3. The microphone supports the custom chairman machine configuration function, and any unit can be temporarily defined as the chairman unit according to the needs of the site. There is no limit on the number of chairman units

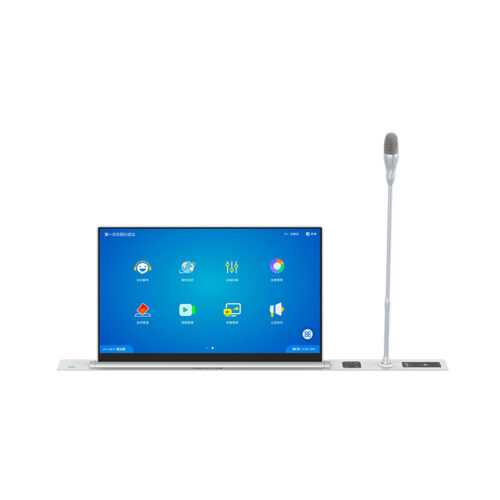

  4. The front main screen adopts a 17.3-inch 100% full color gamut IPS full viewing angle ultra-thin high-definition LCD screen design, using the original latest full-fit curved screen technology to minimize the black border, high resolution (1920*1080 p. Bare screen, response time: 5ms

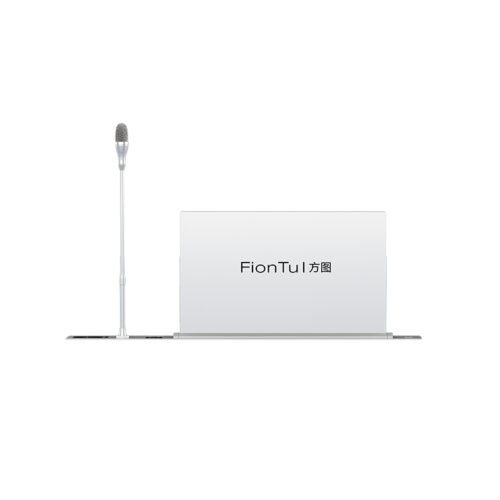

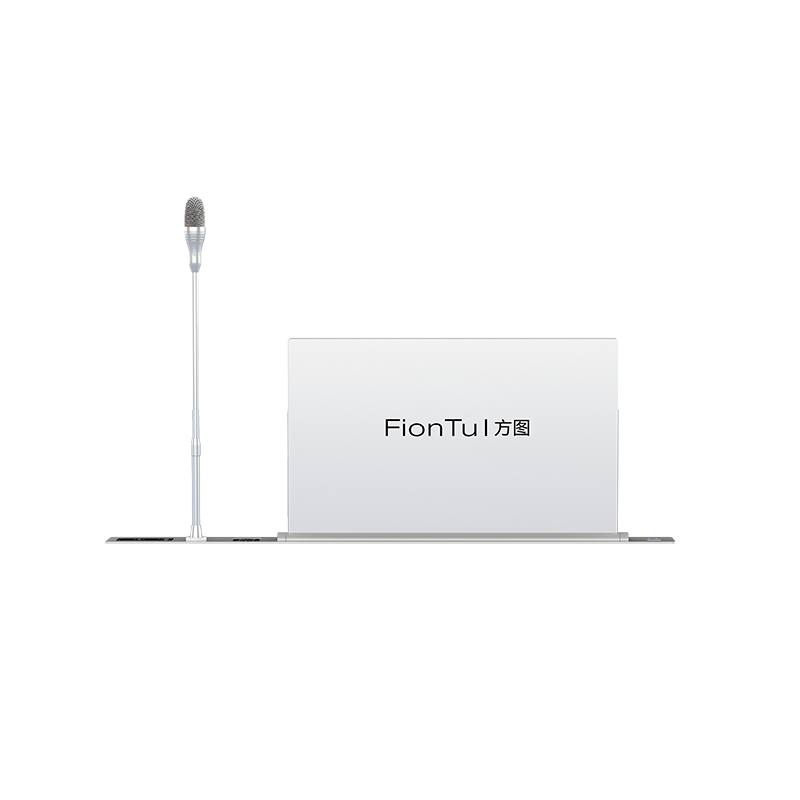

  5. The back uses an integrated 10.1-inch high-definition LCD screen for table card display function; display name information, position and unit name
  6. The display frame is an integral aluminum alloy, which is sandblasted and oxidized after one-time CNC precision machining. The display area micro-frame is ≤4.8mm, which increases the visible area by 10% compared to the 16:9 full-screen picture, and the screen-to-body ratio is not less than 92%
  7. The front screen display area is covered by 2mm tempered protective glass, and the single-point impact strength of the surface is 5 times that of ordinary glass. The visual angle is bright and wide, and there is no obvious black edge appearance
  8. Touch screen technology: the inner side is a multi-point capacitive touch screen (touch capacitive/Modular 7 level, 10-point touch, sensitivity <=2 ounces, touch response time <= 3ms., supports full-screen touch, can slide, drag, zoom to view meeting materials
  9. The whole machine adopts ultra-thin appearance design, the surface is treated with anodized sandblasting coloring process, exquisite and beautiful, the whole machine chassis is made of high-grade anodized aluminum alloy
  10. The display panel adopts Multi-Touch multi-point touch technology, touching any point can withstand more than 5,000 10,000 touches
  11. The desktop panel has a USB interface, and you can browse or upload files by connecting a USB flash drive
  12. The terminal switch power button supports LED light-transmitting display. It is off when the device is turned off, and LED light-transmitting when the device is operating normally. It can effectively identify the operation of the device in various dim environments

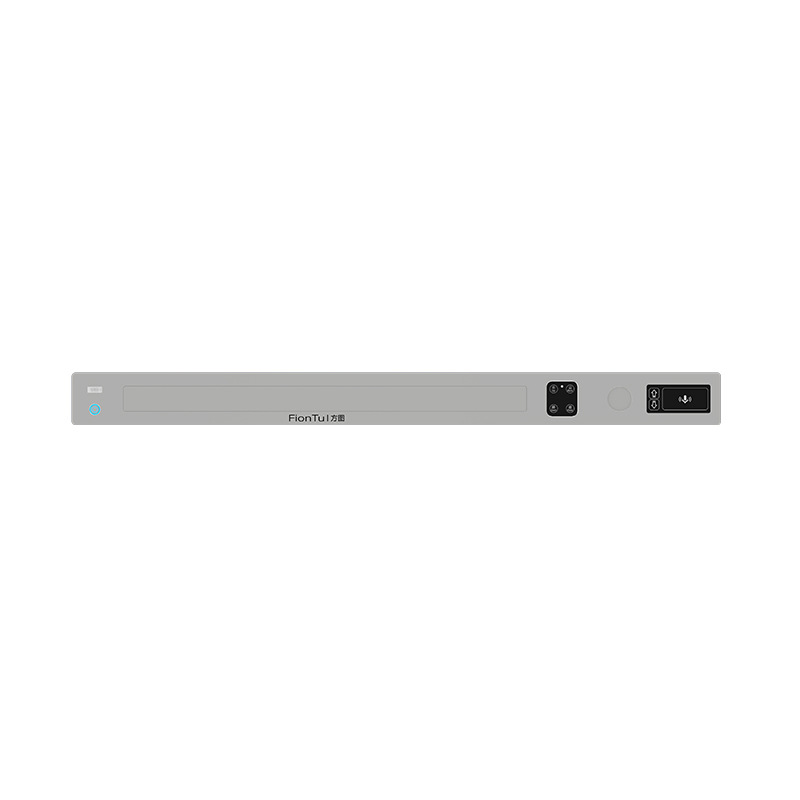

  13. Panel buttons: with up, down, stop buttons, forward and backward adjustment buttons, all of which use photoelectric touch buttons
  14. Supports the emergency stop function: when the lift encounters resistance during operation and cannot be lifted, the motor will automatically stop running to avoid damage to the motor or accessories
  15. The lifting speed time is optional, the default lifting one-way time is within 8s, and it can be selected within 4S
  16. Support dual-channel signal input/switching: analog VGA and digital HDMI interfaces, which can be compatible with and automatically identify valid signals at the same time, independently connect the input signal source, HDMI signal and VGA high-definition signal can meet the dynamic display of full HD, and support the screen automatically enters power saving mode when there is no signal input
  17. All lines All adopt standard double insulation and safety grounding anti-leakage protection device, without inductive electricity and leakage
  18. The control circuit board adopts high-end integrated intelligent identification chipset, limit switch double protection, stability, safety and reliability
Parameter
Touch screen support touch
Lifting time 8S
Elevation angle 0-30°, fully in line with ergonomic principles, without blocking sight and face
Environmental conditions -20℃~50℃, relative humidity ≤70%
Screen size/ratio 15.6”/16:9
Screen resolution 1920*1080
Video interface 1 VGA, 1 HDMI; support central control switching
Control interface 2 network ports to control the display screen up and down, 1 USB port for power on/off, 2 USB ports for data transmission
Panel interface 1 USB port (data transmission)
Panel size  615*50*3mm
Backlight type WLED, 15K hours, including LED driver
Contrast 800 1 (Typ.) (TM)
Viewing angle 85/85/85/85 (Typ.)(CR≥10)
Light source type 10S4P WLED, 15K hours, including LED driver
Display thickness 8.0mm
Back screen size 10.1 inches
Contrast ratio 800 : 1 (Typ.) [Transmission]
Backlight type WLED, 15K hours, including LED driver
Viewing angle 85/85/85/85 (Typ.)(CR≥10)
Microphone rod 430mm in length
Microphone core 14mm
Pickup distance 60-80cm
Power supply 12v
Power consumption 60W
Microphone
Frequency response  80Hz-16KHz
Microphone input impedance 1KΩ
Sensitivity -46dBV/Pa
Maximum SPL1 25dB (A)
Signal-to-noise ratio >80dB
THD <0.1%
Power consumption 3W
