Paperless Server FT-1000A

This 2U paperless conference system rack server features dual-display support, dual Gigabit network cards, and high compatibility with Windows Server 2012. It is equipped with an Intel i5 CPU, 16GB RAM, 512GB SSD, and offers multiple expansion options such as PCIe, USB, and serial ports. The system is designed for robust performance with anti-magnetic, dust-proof, and impact-resistant capabilities.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Paperless conference system rack server, paperless conference system software data storage management center
  • Adopts industrial-grade industrial computer standard rack chassis design, 2U height, Magang high-grade flat galvanized plate design structure, with high anti-magnetic, dust-proof and impact-proof capabilities
  • Supports synchronous dual display, one standard HDMI and one VGA signal output, supports adaptive projection resolution, and is convenient for the display of multi-adaptive images
  • Built-in dual Gigabit network card to achieve simultaneous operation of internal and external networks
  • Two USB ports on the front panel are convenient for users to copy data and expand connected devices
  • Supports Windows server 2012 server operating system, with excellent compatibility
  • Supports 1 set of 3.5MM high-fidelity audio input and output interfaces (Line_ out, MIC_ in and Line_ IN)

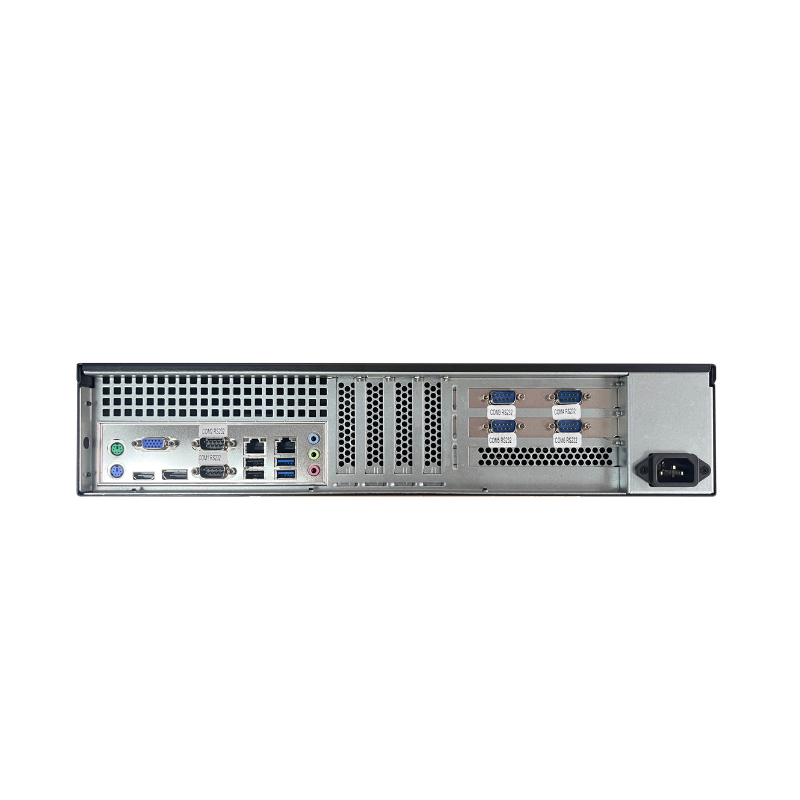

  • The rear IO is equipped with 1 COM serial port, supporting RS232 mode
  • The front panel is equipped with power on and restart buttons, status indicator lights, which can intuitively check whether the device is running normally, and conveniently restart the device quickly 10.Support 1*M.2 2280PCLe, 1*3.5 hard disk slot
Parameter
CPU i5
Chipset IntelH110
Memory 16G (supports dual-channel DDR41866/2133MHz memory, maximum support 32GB)
Hard disk 512GB solid state
Network port 2 RJ45 Gigabit network ports support 110/100/1000Mbpss
Graphics control Intel Sky LAKE/KabeLAKE embedded GPU
Display interface 1xVGA, 1xHDMI
Storage interface 4xSATA3.0
USB interface 4xUSB3.0, 4xUSB2.0
Serial port 2xCOM port, supports RS232\RS485 and other protocols, and can be expanded to 4*serial ports through expansion cards
Audio Realtek ALC662, supports Line_out and Line_IN
GPIO 8-bit programmable digital I/0 pin
Expansion interface 4xPCI, 1xMINIPCIE, 1xPCleX16, 2xPCleX4 (actually PCIEX1 bus)
PS/2 1x rear PS/2 keyboard interface, 1x rear mouse interface
Power supply type 24+4PinATX power supply
Product size length x width x height 480*430*89mm
Power consumption 150W
Donwload
FT-1000A
