Paperless Server FT-1200A

This 4U paperless conference system rack server features an 8.9-inch front display and keyboard for easy debugging and monitoring. It is powered by an i7 quad-core processor, with dual Gigabit LAN, 16GB memory, 1TB SSD, and supports dual-display via HDMI and VGA. The system is designed for high durability, offering multiple expansion interfaces and excellent compatibility with Windows Server 2012.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Paperless conference system rack server, paperless conference system software data storage management center

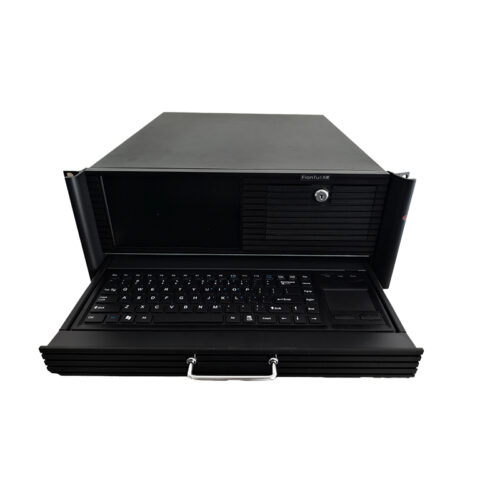

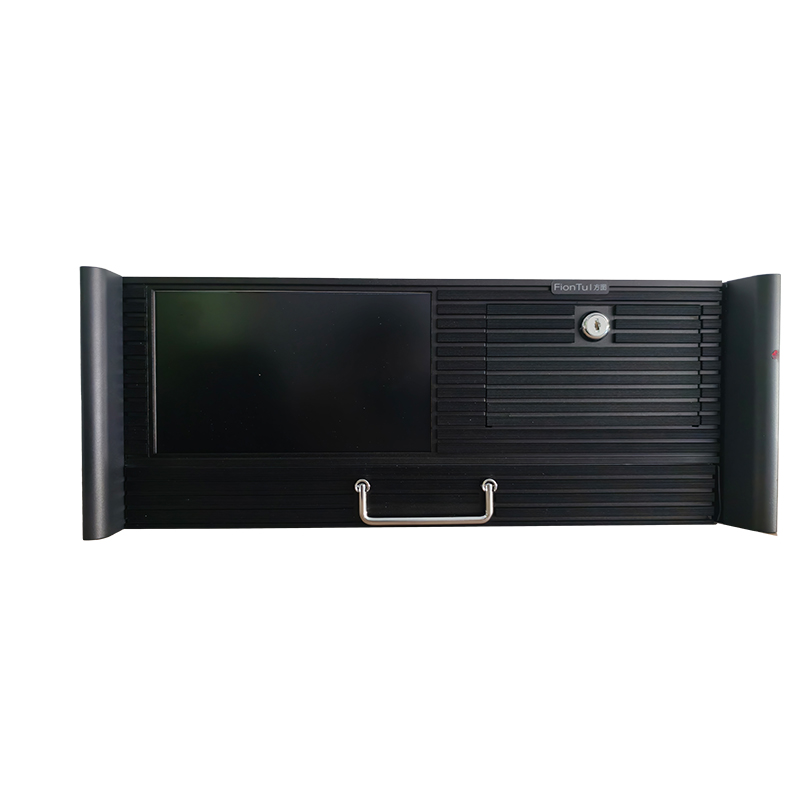

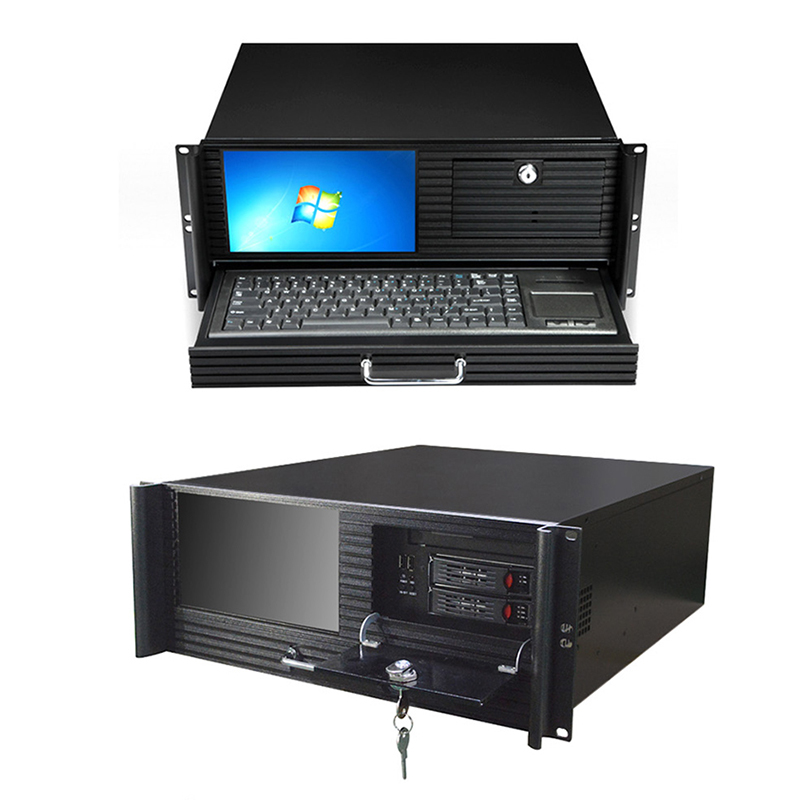

  • Standard cabinet 4U height, front display 8.9 inches + keyboard, convenient for engineering debugging and status monitoring
  • Adopt Magang high-grade flowerless galvanized plate design structure, with high anti-magnetic, dust-proof and impact-proof capabilities
  • Supports synchronous dual display, one standard HDMI and one VGA signal output, supports adaptive projection resolution, and is convenient for displaying multiple adaptive images
  • Two standard RJ45 Gigabit network ports, using RealtekRTL8111F network chip, supporting 10/100/1000Mbps, realizing simultaneous operation of internal and external networks.
  • Two USB ports on the front panel, convenient for users to copy data and expand connected devices
  • Support Windows server 2012 server operating system, with excellent compatibility
  • Support 1 set of 3.5MM high-fidelity audio input and output interfaces (L ine_ out, MIC_ in and L ine_ IN）

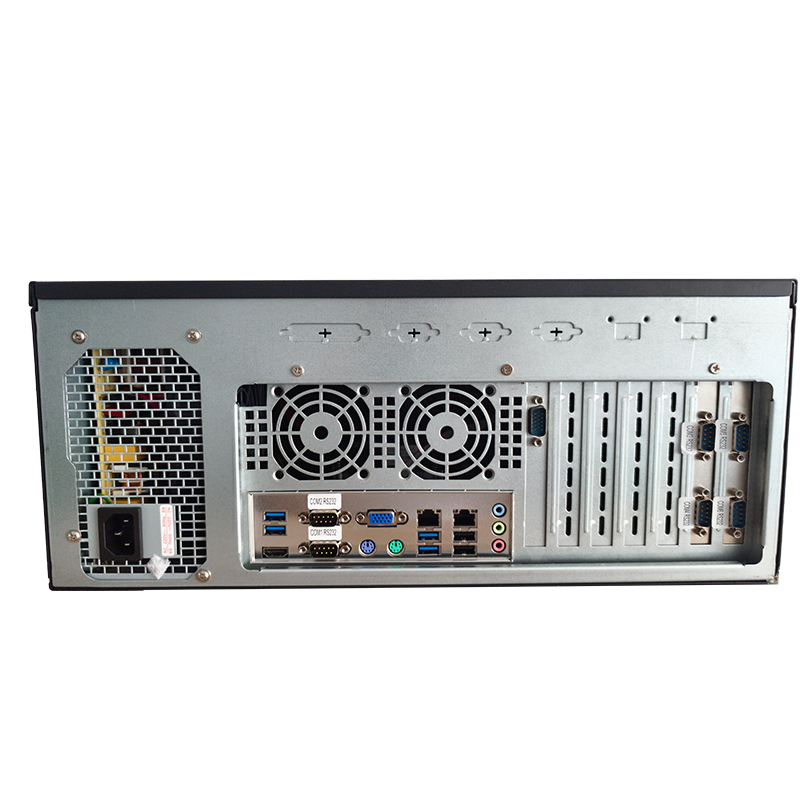

  • The rear IO has 1 COM serial port (4 expandable ports), supporting RS232 mode
  • The front panel has power on and restart buttons, and status indicator lights, which can visually check whether the device is running normally, and quickly restart the device
  • Support 1*M.2 2280PCLe, 1*3.5 hard disk slot 12.2xCOM port, supports RS232\RS485 and other protocols, and can be expanded to 4*serial ports through expansion cards
    • Parameter
    CPU i7 quad-core/eight-thread 3.4GHz
    Chipset IntelH110
    Memory 16G (supports dual-channel DDR41866/2133MHz memory, maximum support 32GB)
    Hard disk 1T solid state
    Network port Intel121110/100/1000Mbps2xLAN
    Graphics control Intel Sky LAKE/KabeLAKE embedded GPU
    Display interface 1xVGA, 1xHDMI (VGA.HDMI rear 10 panels)
    VGA supports a maximum resolution 1920X1200@60Hz
    HDMI2.0 supports a maximum resolution 4096X2160@60Hz
    Storage interface 4xSATA3.0
    USB interface 4xUSB3.0, 4xUSB2.0
    Audio Realtek ALC662, supports Line2_out and Line_IN
    GPIO 8-bit programmable digital I/0 pin
    Expansion interface 4xPCI, 1xMINIPCIE, 1xPCleX16, 2xPCleX4 (actually PCIEX1 bus)
    PS/2 1x rear PS/2 keyboard interface, 1x rear mouse interface
    Watchdog 255-level timer, resettable
    Power supply type 24+4PinATX power supply
    Power consumption 150W
    Donwload
    FT-1200A
