Professional LED controller DS-VP-K12

2U video controller supports 7.2M pixels with 12 Ethernet outputs, 3× HDMI, 1× DVI input (1920×1200@60Hz), and 3-window display. Features HDCP 1.4, image adjustments, USB/RS232 control, and audio in/out. Offers splicing, scaling, and smooth low-brightness grayscale.
Categories:
Get Quote
Category
Description
  • Supports a wide range of digital signal interfaces, including 1 × DVI and 3 × HDMI 1.4
  • Input resolution up to 1920×1200@60Hz, with customizable resolution settings
  • Video output capacity: up to 7.2 million pixels, max width 8192 pixels, max height 4096 pixels
  • Supports flexible video source switching, cropping, splicing, and image scaling
  • 12-channel Gigabit Ethernet outputs; supports single-unit or dual-unit redundant backup
  • Supports simultaneous display of up to 3 windows, with flexible position and size adjustment
  • Compliant with HDCP 1.4 high-bandwidth digital content protection
  • Dual USB 2.0 high-speed communication ports for PC debugging and master controller cascading
  • Supports RS232 serial control protocol
  • Supports brightness and color temperature adjustment; also contrast, hue, and saturation control
  • Supports low brightness and high grayscale to ensure detail clarity in low-brightness environments
Parameter
Input Interfaces
Type Description
HDMI Input 3 × HDMI inputs, compliant with EIA/CEA-861 standard (up to 1920×1200@60Hz), supports HDCP 1.4, audio input, and 8-bit formats including RGB444, YCbCr444, YCbCr422
DVI Input 1 × DVI input, compliant with DVI 1.0 standard (up to 1920×1200@60Hz), supports HDCP, and 8-bit formats including RGB444, YCbCr444, YCbCr422
Audio Input 1 × analog audio input interface, compatible with PC or similar devices
Output Interfaces
Type Description
Ethernet Output 12 × RJ45 (1Gbps) ports, freely splicable in any direction (up, down, left, right)
Control Interfaces
Type Description
USB Output 1 × USB for synchronization between controllers (cascading)
USB Input 1 × USB for PC connection and parameter configuration
RJ11 Interface 1 × RJ11 (6P6C) for central control connection
Audio Output 1 × audio output interface, supports HDMI audio decoding to speakers or other audio devices
Mechanical & Electrical
Item Specification
Chassis Size 2U standard rackmount chassis
Input Voltage AC 100~240V (wide voltage range)
Rated Power Consumption 30W
Weight 4.6 kg
Environmental Conditions
Parameter Specification
Operating Temperature -20°C ~ +60°C
Operating Humidity 0% – 80% RH (non-condensing)
Storage Temperature -30°C ~ +80°C
Storage Humidity 0% – 90% RH (non-condensing)
Donwload
DS-VP-K12
Get Quote

Your email address will notbe published, Required fields are marked

Product Related

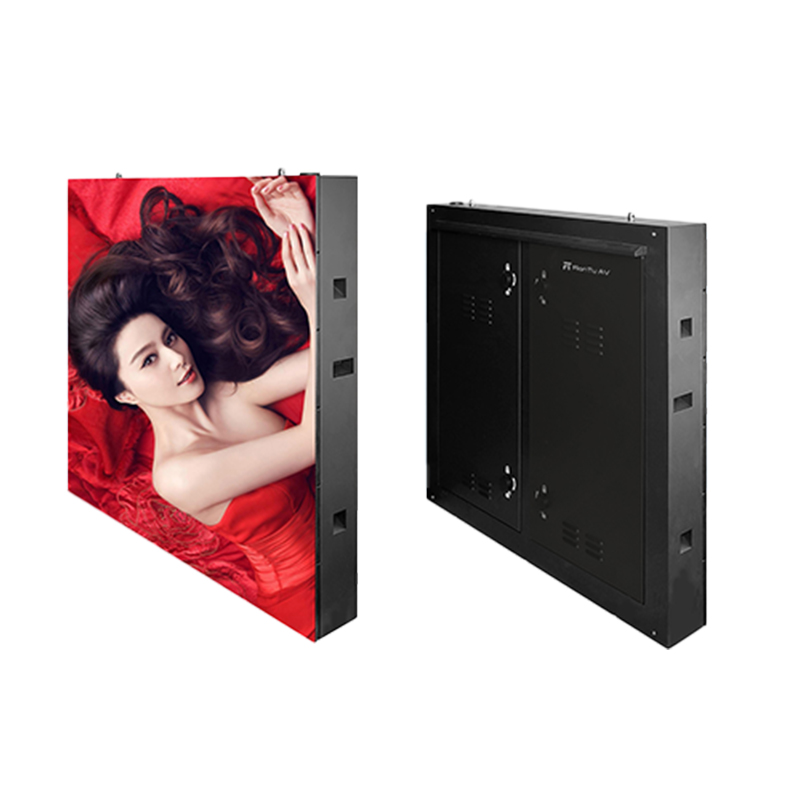

Outdoor full color LED screen 0P5000E-J09C
