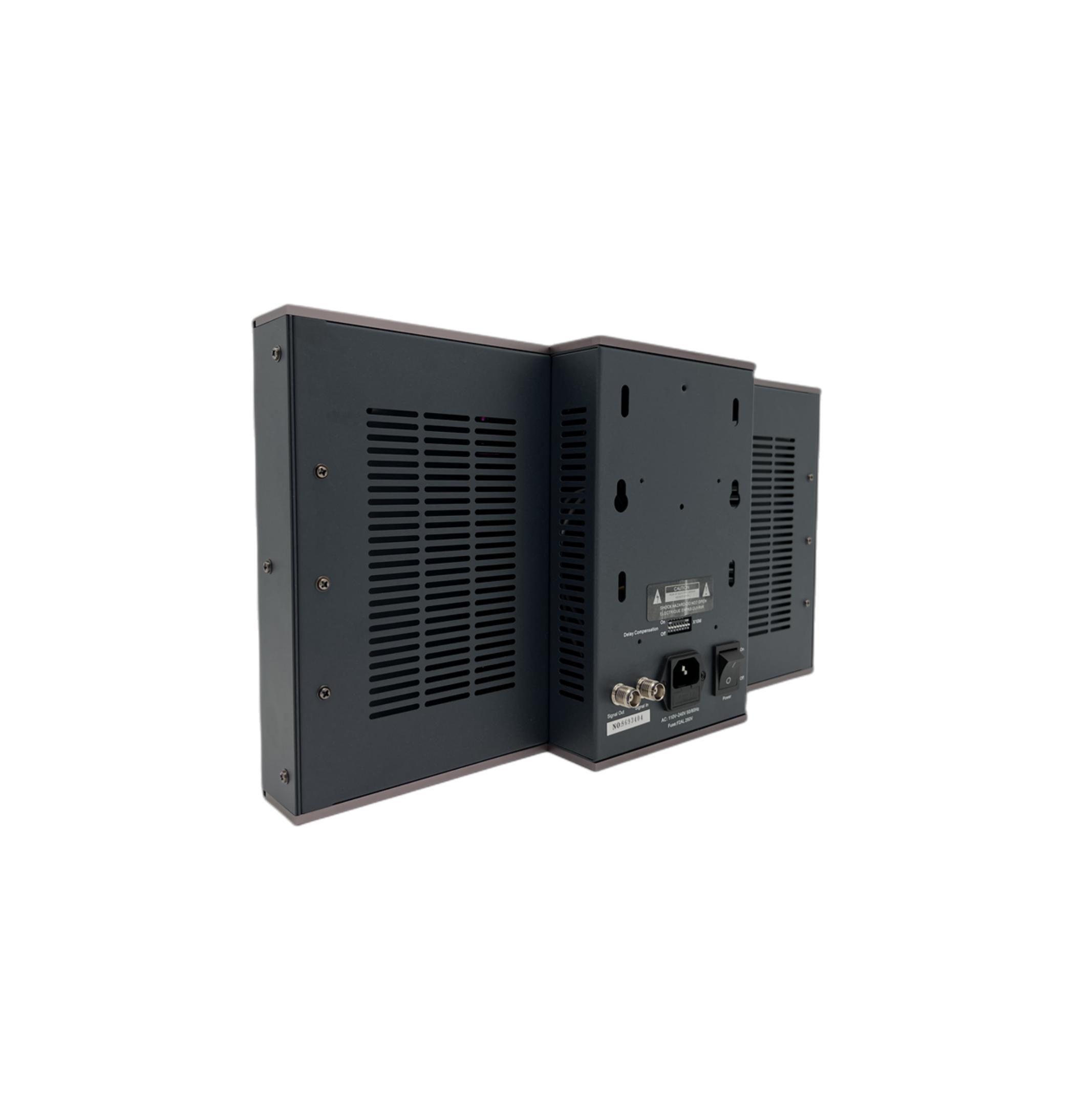

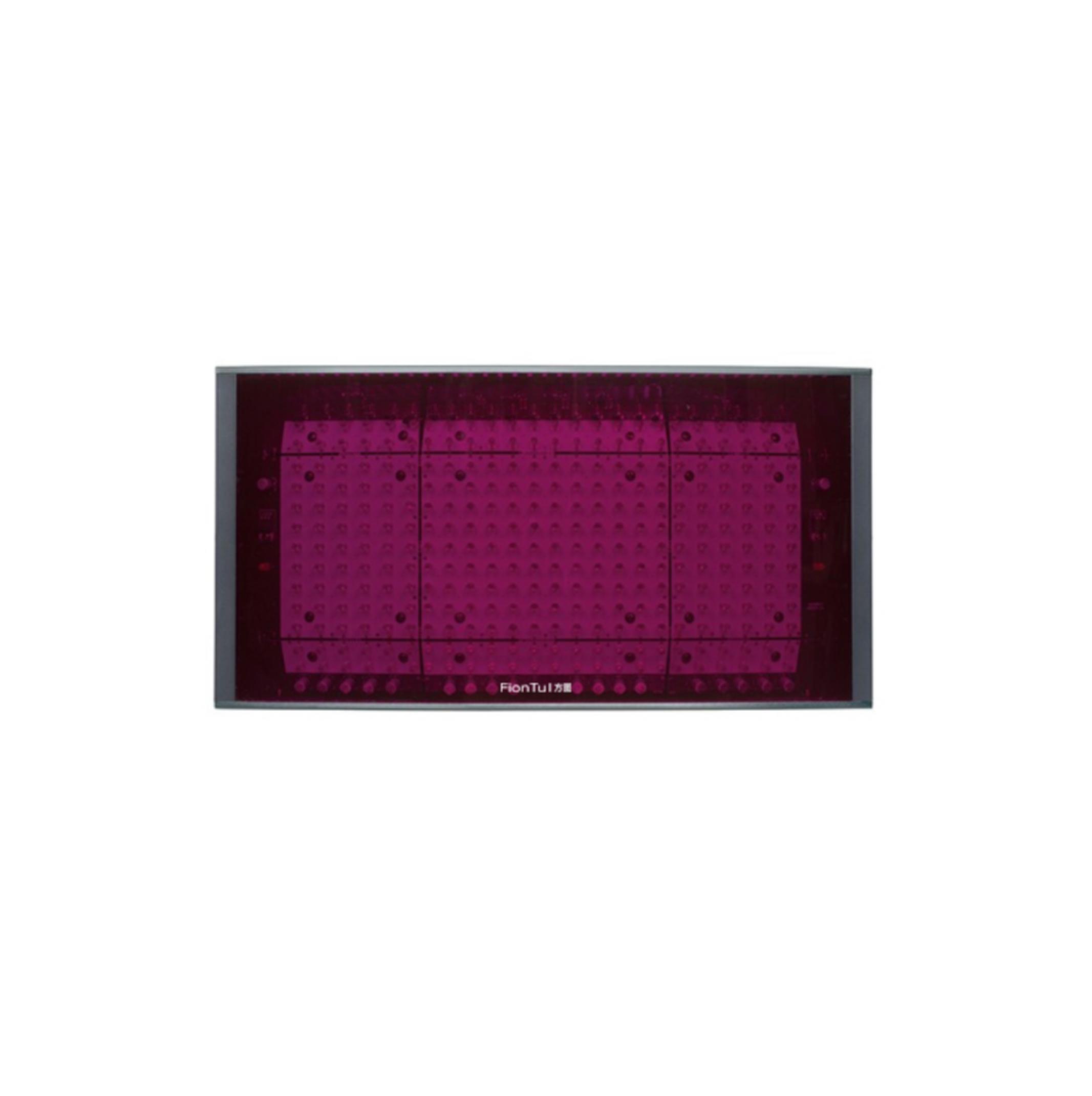

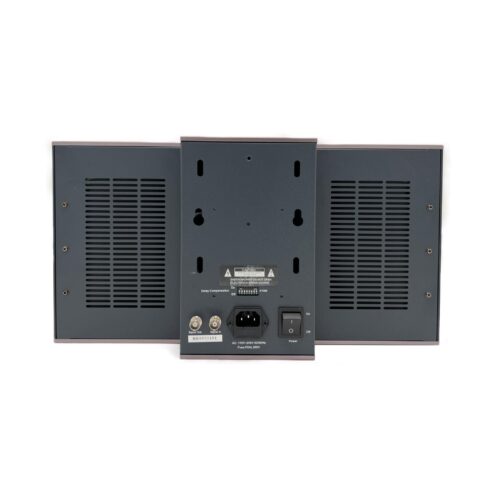

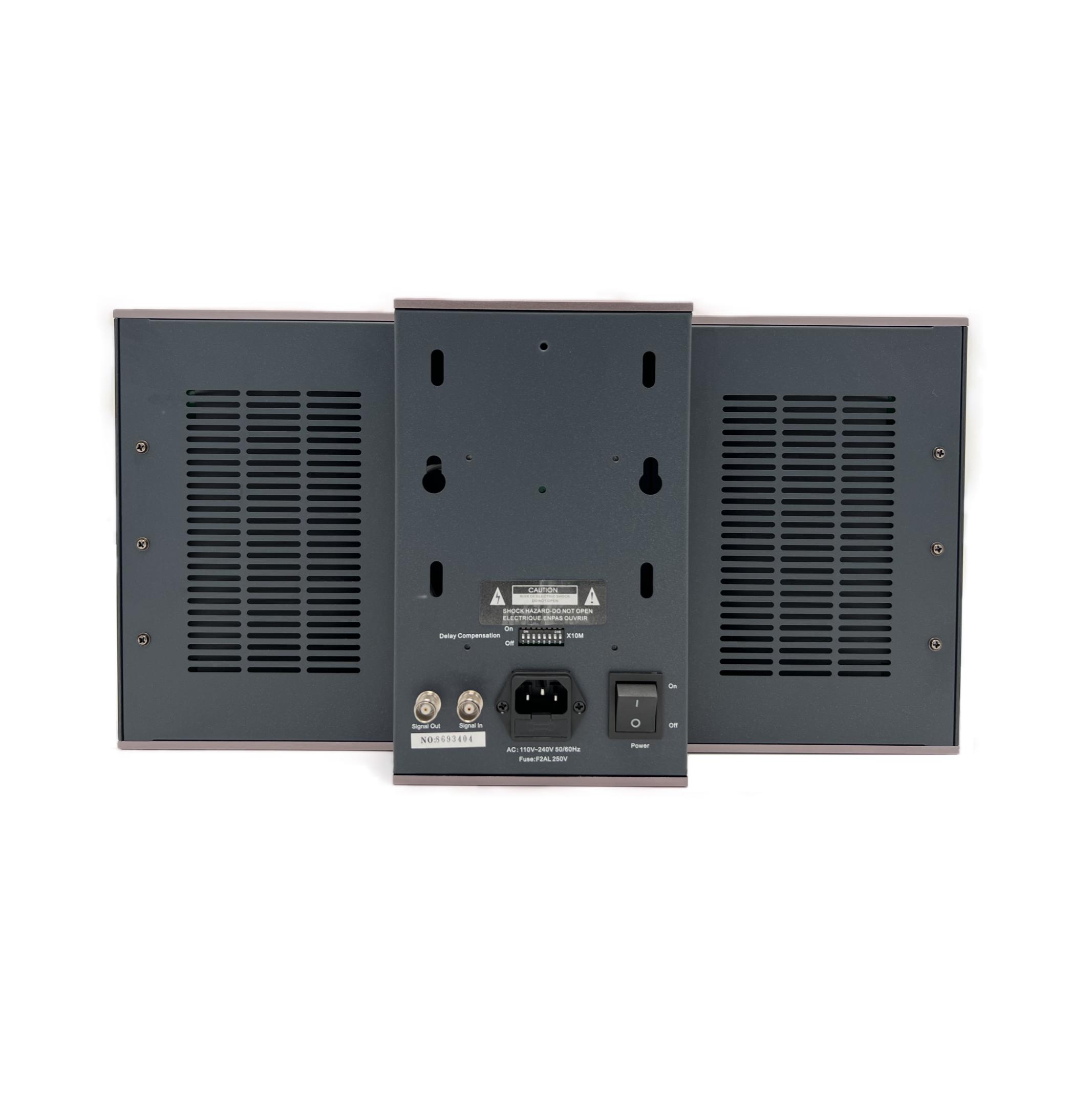

Radiating unit FT-A-TX

This infrared transmission unit complies with international and national standards, supporting up to 16 channels with a transmission distance of up to 30 meters. It features strong signal radiation coverage, delay compensation, and flexible installation options. Its DQPSK technology ensures stable and interference-free signal transmission.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Comply with international standards IEC 61603-7 and IEC 60914
  • Comply with the latest national standard GB 50524-2010
  • Compatible with other infrared simultaneous interpretation systems that comply with IEC 61603-7 and can be used cross-over
  • Adopts DQPSK technology with independent intellectual property rights and related technologies with invention patents
  • Super strong transmission capability, up to 30 meters (25W)
  • Multiple channels use the same transmission unit
  • Hand-in-hand signal radiation enhanced coverage mode, which can easily expand the signal coverage range and can also be used to configure into multi-room mode
  • With cable transmission delay compensation function to ensure correct signal superposition transmission
  • Can be fixedly installed (configured with a universal bracket) or installed with a tripod bracket
  • Half-value transmission angle: ±22 degrees
    • Parameter
    HF input  rated 1 Vpp, minimum 10 mVpp
    Half-intensity angle  ± 22°
    Total peak light intensity  24 W/sr
    Standby power consumption  25W
    Power consumption  30W
    Radiation distance  <30M/16CH
    Power supply  AC110V-220V~ 50Hz-60Hz
    Operating temperature  0℃-40℃
    Dimensions  445×235×113mm
    Weight  4.2kg
    Donwload
    FT-A-TX
