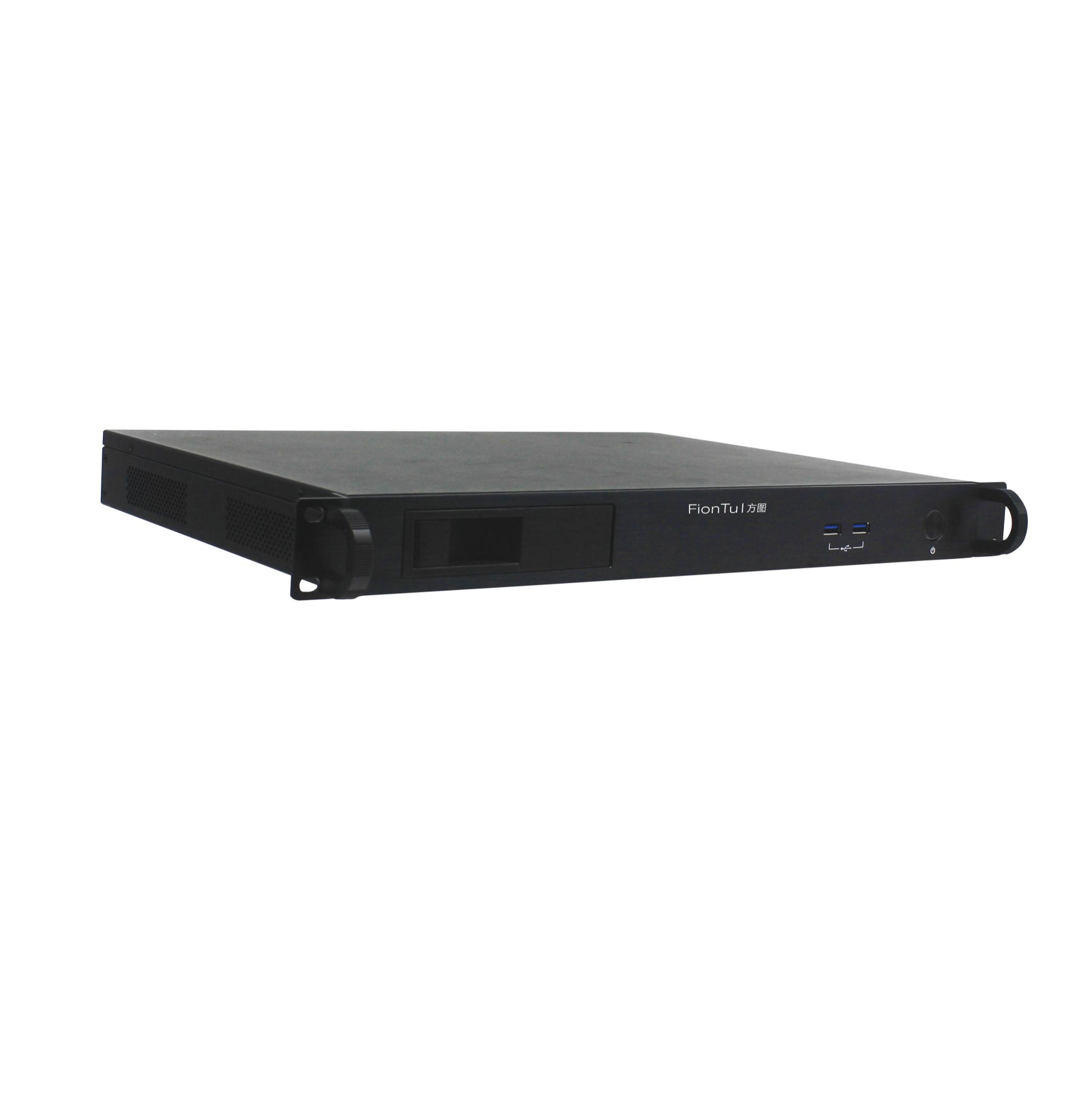

Recording host FT-820H

This all-in-one embedded recording and broadcasting device features 4K HDMI input/output, H.264/H.265 encoding, and integrated functions like recording, live streaming, and storage. It supports 4 HDMI inputs, 2 HDMI outputs, pluggable 3.5-inch hard drives, and multiple protocols for flexible application scenarios such as conferences and training. The device offers advanced features like segmented recording, timed recording, customizable layouts, and easy file management.
Categories:
Get Quote
Category Tags , , , ,
Description
  • The system adopts pure embedded system, ARM quad-core processor solution, high stability, low power consumption
  • Equipped with 3.5-inch pluggable hard disk bracket, supports mainstream large-capacity hard disk
  • Supports 7*24 hours work
  • Supports screen access through RTSP protocol
  • Supports screen access through ONVIF protocol
  • Supports screen access through HDMI (HDMI interface can support up to 3840*2160 screen access, and is backward compatible with conventional resolutions such as 1920*1080
  • Supports HDMI input embedded audio and 3.5mm linear audio input at the same time
  • Supports different recording streams/live streams to select different audio input signal sources or combinations
  • The movie channel can support recording up to 1920*1080@60 resolution video or 3840*2160@30 High-resolution video
  • Support segmented recording and timed recording
  • Support MP4, TS and other recording formats, convenient for various players to play and software editing
  • Support live broadcast through RTMP, HLS and other protocols, convenient for docking with third-party platforms and systems
  • Support movie channel + resource channel live broadcast at the same time,
  • Support 8 layout modes to respond to the needs of different scenes
  • Support 14 transition effects to make the screen switch soft and natural
  • Support subtitles, station logos, opening and ending functions, and support presets. Users can quickly call them with a click, making the director more convenient
  • Support one-click playback and deletion of recorded files in the software interface
  • Built-in 2T hard disk, support external USB flash drive, mobile hard disk and other storage devices, and copy the recorded files with one click or automatically
  • Support transferring recorded files to related platforms via FTP
  • Equipped with a 3.5-inch pluggable hard disk tray, supports mainstream hard disks, and users can purchase hard disks to expand storage according to usage needs
    • Parameter
     Operating system Linux
     Support protocols HTTP, UDP, TCP, HLS, RTMP, RTSP, ONVIF, WEBSOCKET, FTP, NTP, DHCP, SIP

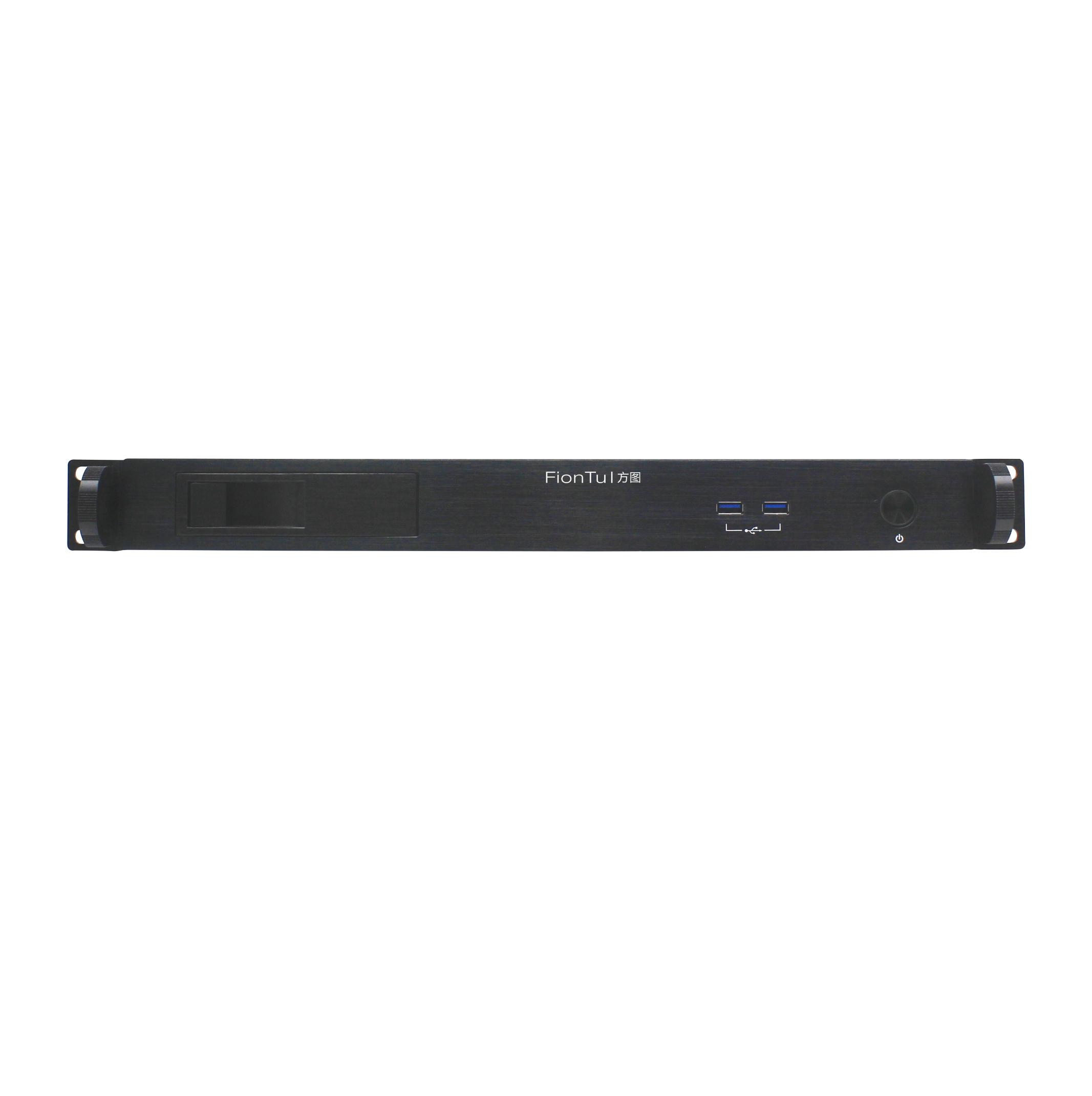

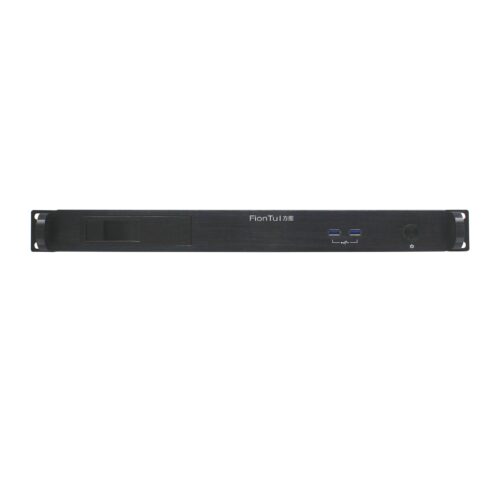

     Front physical buttons Power switch
     Video encoding standard H.264, H.265
     Output resolution 1920*1080
     Video recording format MP4, TS
     Video recording Bit rate 256kbps~20480Kbps adjustable
     Recording bit rate control CBR, VBR, AVBR, QVBR, CVBR, FIXQP, QPMAP
     Video recording frame rate 25~60fps
     Live video format RTMP, RTSP, HLS
     Live video bit rate 256kbps~20480Kbps adjustable
     Live video frame rate 25~30fps
     Audio compression standard AAC
     Audio compression bit rate 32~192Kbps adjustable

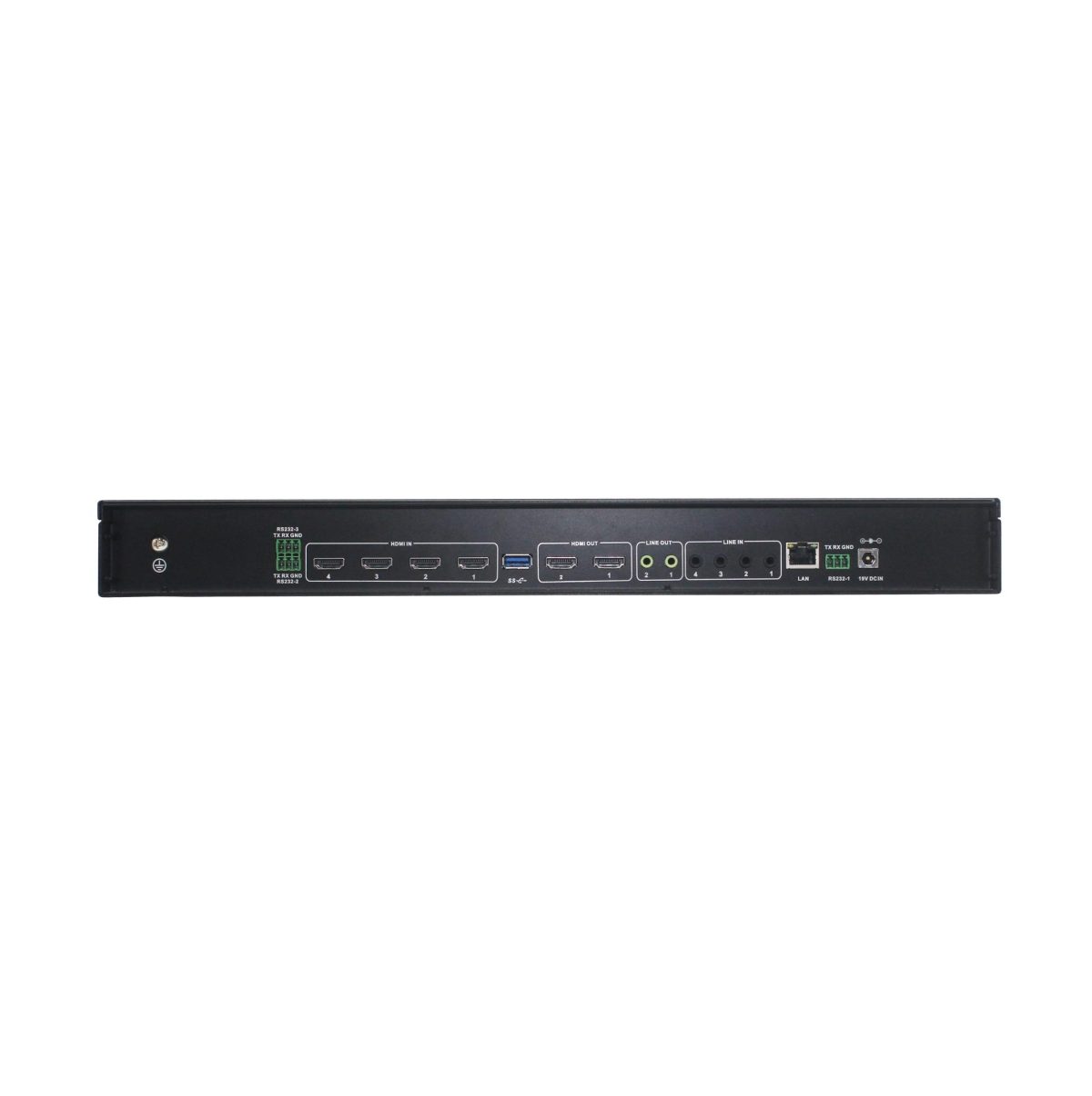

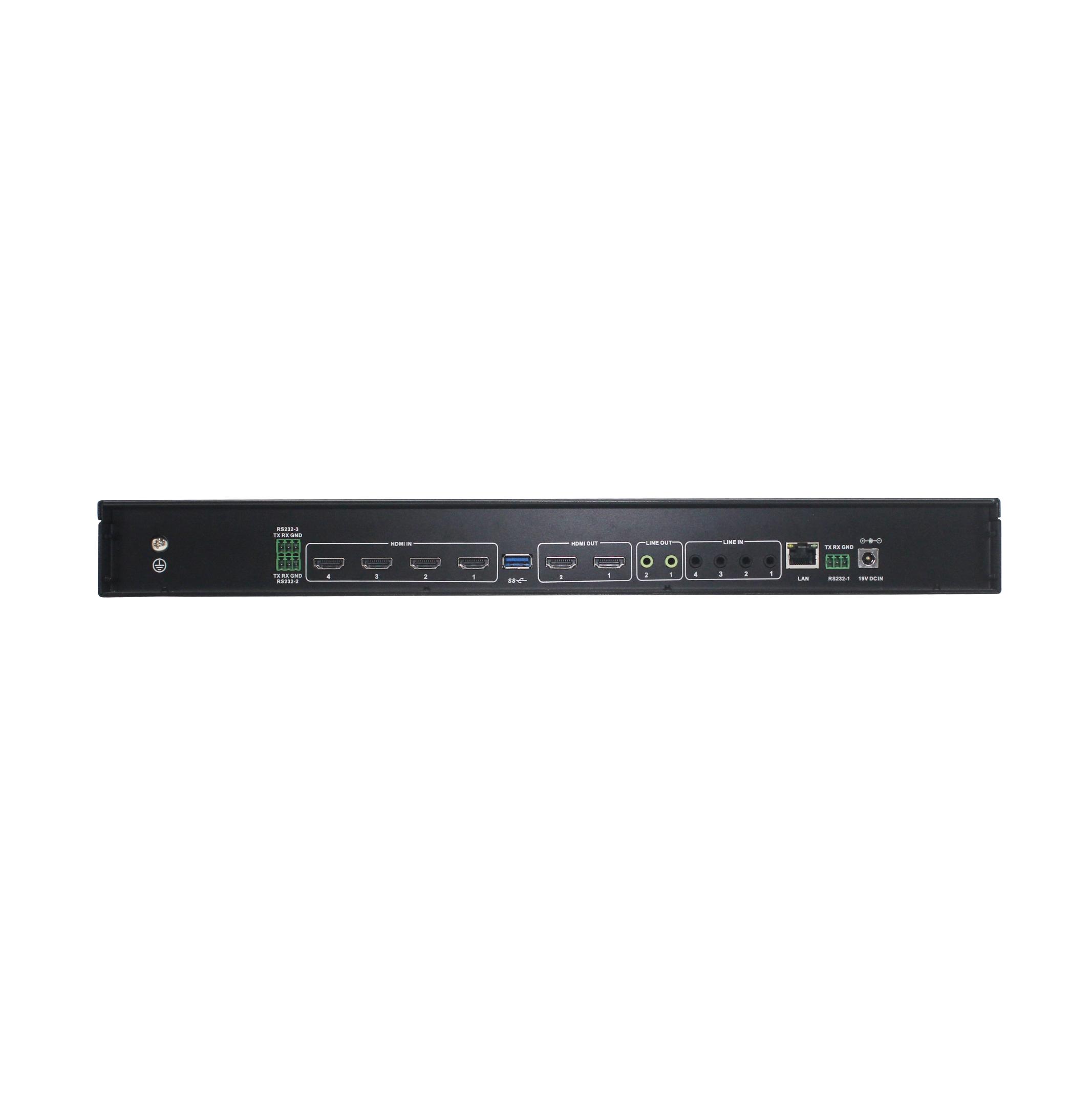

     Video input 4 HDMI
     Video output 2 HDMI
     Audio input 4 3.5mm LINE IN
     Audio output 2-way 3.5mm LINE OUT
     Network interface 1-way RJ45: 10/100/1000M adaptive
     COM interface 3-way Phoenix terminal RS232
     USB interface 3-way Type-A USB3.0
     Power interface inner diameter 2.5mm, outer diameter 5mm DC power socket
     Input power DV 19V
     Maximum power consumption <30W
     Standby power consumption <2W
     Storage temperature -10℃~+50℃
     Storage humidity 90%RH
     Working temperature 0℃~50℃
     Working humidity 70%RH
     Overall size 483.4mm(W) x 318.5mm(D) x46mm(H)
    Net weight about 3.0Kg
    Gross weight about 5.0Kg
     Body storage built-in 2T hard disk, equipped with a 3.5-inch pluggable hard disk tray, supports mainstream hard disks; it is recommended to use a 3.5-inch hard disk with monitoring level and above specifications
     Input resolution 3840×2160p@30, 1920×1080p@60, 1920×1080p@30, 1600×1200P60, 1680×1050p@60, 1600×900P60, 1440×900P60, 1280×1024p@60, 1280×960p@60, 1280×800p@60, 1280×720p@60, 720×480p@60, 640×480p@60
