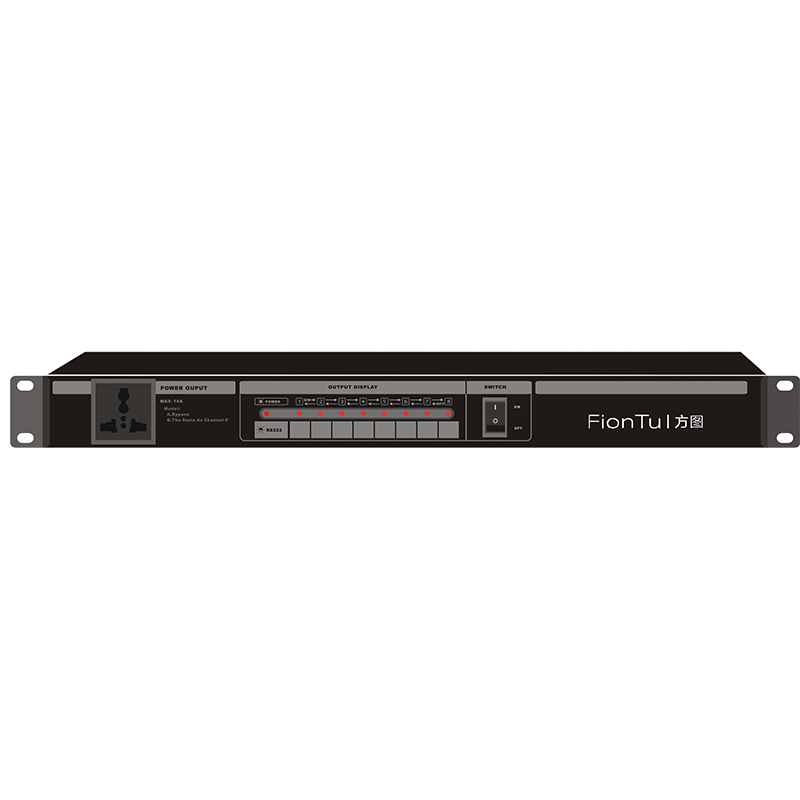

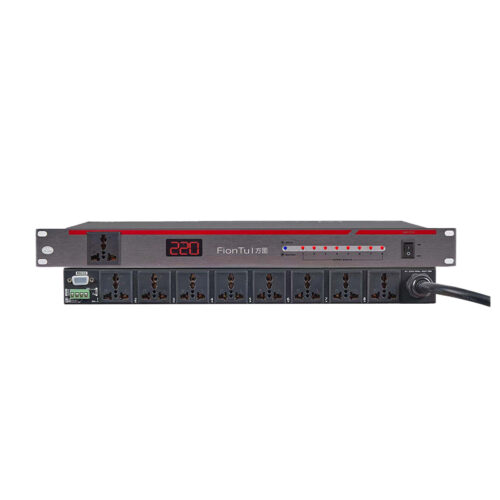

Sequential Power Supply FT-PS8

This power distribution unit supports a maximum input current of 50A and can provide up to 3000W per channel with flexible voltage options. It features high-quality components, including 16A Omron relays and phosphor copper sockets, with remote control and cascading support. The chassis is compact (1U), and it also offers controllable functions via computer software.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Input and output voltage Optional voltage: 110V input = 110V output, 380V input = 220V output
  • Output power socket provides 8+1 10A socket output (optional 8+2 10A socket output).
  • Socket material Each socket is made of phosphor copper, and all are strictly tested before installation, in line with national standards.
  • Each switch interval time is 1 second, each channel has a switch indicator, and can be set to delay 5 minutes through software.
  • Remote control function can be equipped with optional remote control with a distance range of 10 meters (15 meters without obstructions)
  • Online support for unlimited cascading.
Parameter
Maximum input current 50A
Single-channel maximum output current 10A/13A
Working voltage 220V/50-60Hz
Each channel power Max 3000W
Relay 16A Omron relay
Chassis height 1U
Switch Boat switch
Weight 4Kg
Single-channel controlled function Controllable through computer POWER test software
Circuit board circuit uses 60% high-purity tin, high-end shunt technology, and is strengthened and thickened
Donwload
FT-PS8
