Smart conference center E-8 Center V

This conference system features digital control with an eight-core cable for signal transmission, and supports independent or synchronized operation with external software for managing conference functions. It includes three conference modes (Open, FIFO, and Restricted speech), microphone management, built-in video central processor for speaker tracking, and voting capabilities. The system also has audio output for external equipment and telephone coupler support for remote conferencing.
Categories:
Get Quote
Category Tags , , , ,
Description
  • The digital control and sound signals connected between the main control unit and the conference system are transmitted by the same cable (eight cores)
  • It can operate independently or be connected to an external computer and software for synchronous linkage operation to realize a variety of conference management functions (conference mode or operation: designated speech, free speech, application for speech and first-in-first-out speech, etc.)
  • A single machine can realize the following conference functions: open conference, restricted speech, first-in-first-out
  • The system has a better sound quality and sound channel effect
  • It has three conference management modes Open mode (Free) First-in-first-out (FIFO) Restricted speech (LIMIT)
  • You can choose the number of microphones that can speak at the same time 1-9 (inclusive) or full open speech
  • Built-in video central processor, which can realize the function of speaker positioning tracking

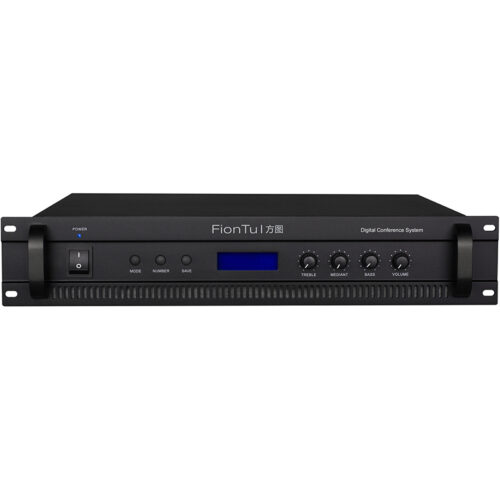

  • The panel has LCD display, 122x32 dot matrix display conference mode The panel has function keys and knobs for system settings and adjustments

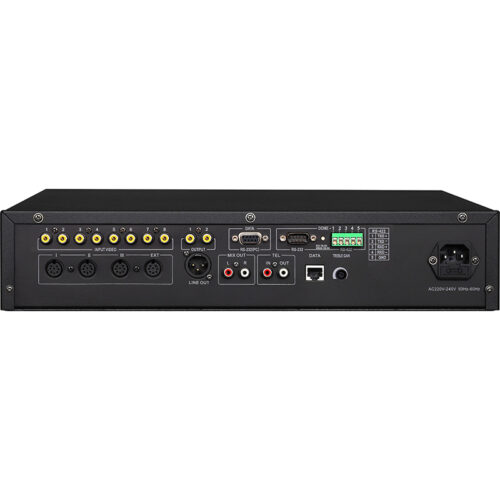

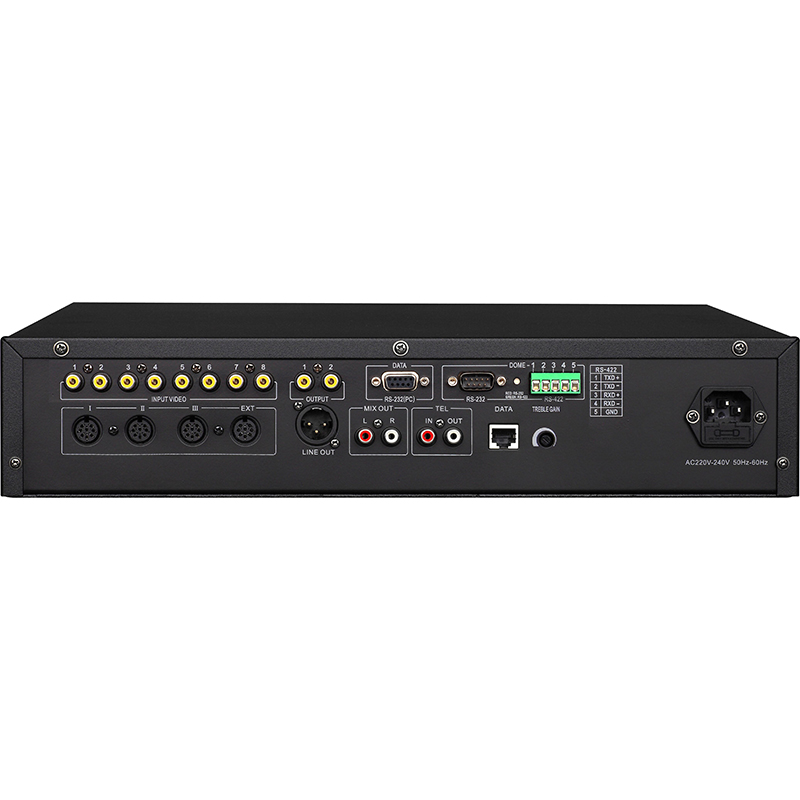

  • It has an audio signal output terminal and can be connected to external recording or audio equipment
  • With a telephone coupler connection terminal, an external telephone coupler can be connected for telephone conferences
  • Built-in voting function: connected to PC software and with the microphone unit, it can realize functions such as sign-in, voting, and election
  • Comply with international conference equipment and international safety standards UL, CE certification
Parameter
Frequency response 40HZ~16KHZ
Total harmonic distortion less than 0.1%
Power supply  Adopt 220V-240V~ 50Hz-60Hz AC
Power consumption 115W
Net weight of the host 11.8kg
Dimension 485mm (including handle) × 100mm (2U, including chassis foot pads) × 355mm (W×H×D) Can be placed horizontally on the table or installed in a 19-inch standard cabinet
Donwload
E-8 Center V
