Smart conference center E-8 Center Y

This conference system uses an eight-core cable for digital control and sound signal transmission, offering three modes (Open, FIFO, Restricted speech) for flexible conference management. It features speaker tracking, an LCD display for settings, and supports external audio equipment and telephone coupler connections for remote conferencing. The system is designed for high-quality sound and can manage up to 9 microphones simultaneously.
Categories:
Get Quote
Category Tags , , , ,
Description
  • The digital control and sound signals connected between the main control unit and the conference system are transmitted by the same cable (eight cores)
  • It can operate independently or be connected to an external computer and software for synchronous linkage operation to realize a variety of conference management functions (conference mode or operation: designated speech, free speech, application for speech and first-in-first-out speech, etc.)
  • A single machine can realize the following conference functions: open conference, restricted speech, first-in-first-out
  • The system has a better sound quality and sound channel effect
  • It has three conference management modes Open mode (Free) First-in-first-out (FIFO) Restricted speech (LIMIT)
  • You can choose the number of microphones that can speak at the same time 1-9 (inclusive) or full open speech
  • Built-in video central processor, which can realize the function of speaker positioning tracking

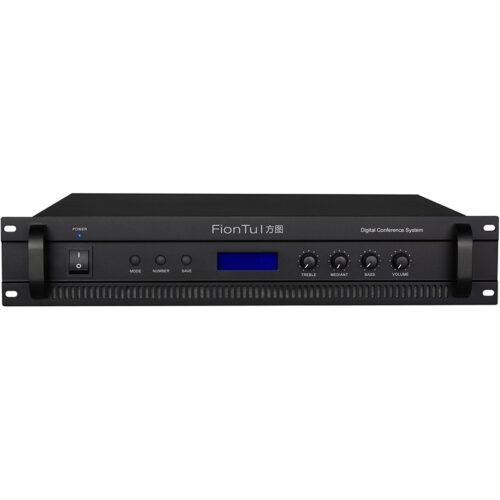

  • The panel has LCD display, 122x32 dot matrix display conference mode The panel has function keys and knobs for system settings and adjustments

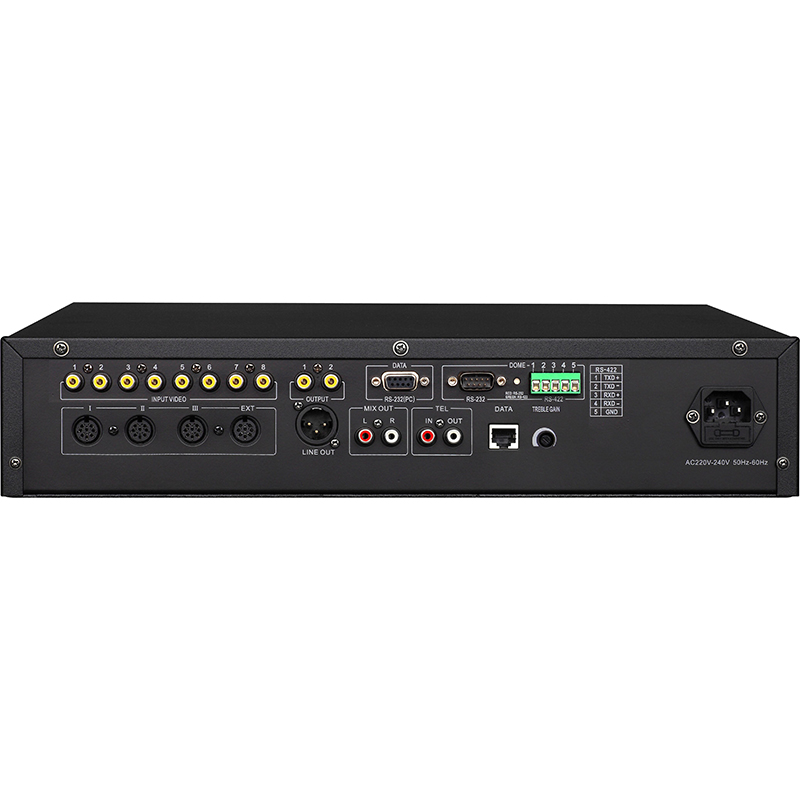

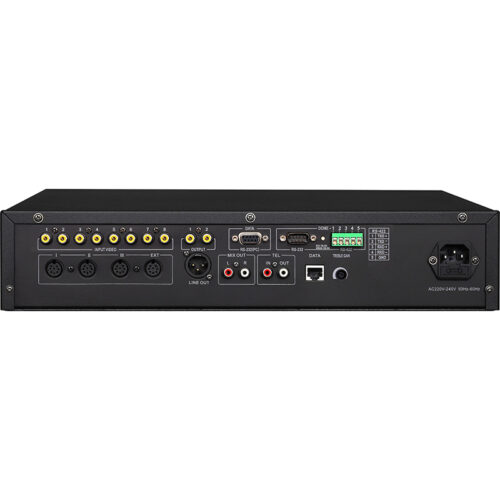

  • It has an audio signal output terminal and can be connected to external recording or audio equipment
  • With telephone coupler connection terminal, can be connected to an external telephone coupler for telephone conference
  • Comply with international conference equipment and international safety standards UL, CE certification
Parameter
Frequency response 40HZ~16KHZ
Total harmonic distortion less than 0.1%
Power supply  Adopt 220V-240V~ 50Hz-60Hz AC
Power consumption 115W
Host net weight 11.8kg
Dimension 485mm (including handle) × 100mm (2U, including chassis foot pads) × 355mm (W×H×D) Can be placed horizontally on the table or installed in a 19-inch standard cabinet
