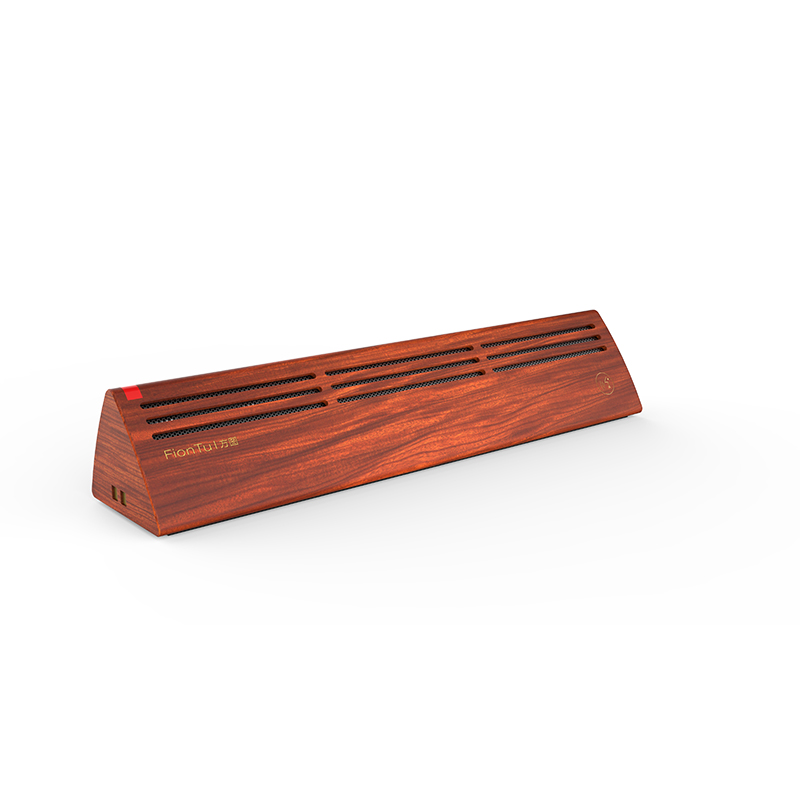

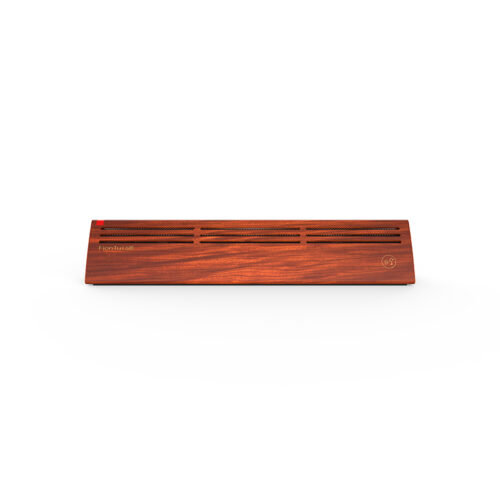

Smart Conference Center F9

This product features UHF digital wireless communication (650MHz-700MHz) with advanced anti-interference and array microphone technology for clear, broadband sound with long pickup distance. It offers up to 30 hours of speaking time with a 6000mAh lithium polymer battery, fast charging, and customizable chairman unit functionality. The system ensures smooth communication with automatic channel allocation and minimal audio delay.
Categories:
Get Quote
Category Tags , , , ,
Description

  • Adopting UHF digital wireless communication frequency band, combined with digital conference system architecture, independently developed wireless anti-interference audio communication technology, ensures the stability of the system
  • Gooseneck-free design, combined with FionTu's independently developed array microphone pickup technology, broadband pickup, long pickup distance, good directivity, and excellent sound quality
  • The unit is equipped with a 6000mAh lithium polymer battery, with a continuous speaking time of up to 30 hours, ultra-long standby, and 1A charging current for fast charging
  • Communication frequency band: 650MHz~700MHz data communication
  • 5 groups of communication frequency bands are optional and do not interfere with each other
  • With volume adjustment and battery power indicator buttons, you can easily adjust the volume and check the current battery power
  • Customized chairman machine configuration function, you can temporarily define any unit as a chairman unit according to on-site needs
  • The system automatically allocates speaking channels for units, shields poor communication frequencies, and ensures the stability of the system
  • According to the conference control software purchased by the user, a variety of conference management functions can be realized
    • Parameter
    Pickup technology Array microphone pickup
    Number of microphone heads 21
    Frequency response  30Hz-18kHz
    Signal-to-noise ratio >80 dB
    Dynamic range >95dB
    Total harmonic distortion <0.05%
    Modulation mode U band
    Communication frequency band 650MHz~700MHz
    RF power output ≤10dBm (reference value)
    Audio wireless transmission delay <5ms
    Battery capacity Built-in lithium battery 6000mAh
    Charging current 1A
    Speech time can reach 30 hours
    Standby time >100 hours
    Charging interface Type-C, contact charging
    Weight 0.45kg
    Shell material ABS
    Dimensions (mm) length * width * height 288*62.2*52.08
    Microphone parameters
    Pickup microphone 9.7mm diameter gold-plated capacitor
    Directional characteristics Directional broadband
    Sensitivity -38 dB
    Frequency response 20Hz-20KHz
    Input impedance 2.2KΩ
    Maximum sound pressure level 110 dB (THD<3%)
    Donwload
    F9
