Smart Conference Center I Mic Center M+W BD

This product integrates wired and wireless conference systems with innovative patented technology, offering secure communication, automatic signal management, and customizable features for efficient conference control. It supports both wired and wireless devices, real-time signal detection, and camera tracking for enhanced functionality. The system ensures high-quality audio, privacy, and future expansion possibilities.
Categories:
Get Quote
Category Tags , , , ,
Description
  • All core components use domestic chips, adopt innovative patented technology of digital conference system management and control method (ZL201510682714X., and original wired + wireless compatible transmission technology
  • It has the characteristics of combining wired conference system and wireless conference system, which can connect hand-in-hand conference unit and wireless dedicated antenna at the same time to control the use of wireless conference unit
  • Adopt RISC embedded digital processing hardware architecture and digital audio algorithm processing technology to effectively prevent feedback and interference
  • The encrypted digital conference communication protocol system ensures the privacy and security of the meeting
  • Wireless communication frequency band: 660.05-685.05MHz data communication, supports multi-frequency selection, and supports chairman enhancement mode
  • Signal detection: real-time detection of wireless signals at the conference site before, during and after the meeting
  • The system automatically allocates speaking channels for units, shields poor communication frequencies, and ensures the stability of the system
  • Adopts current coupling to static capacitance digital touch conference technology, and all conference functions can be centrally controlled through the panel navigation keyboard

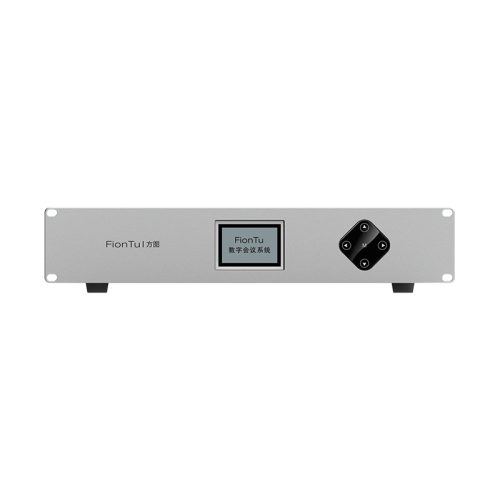

  • Equipped with a 2.8-inch LCD display to display system menus and host status and other information
  • Supports humanized adjustment of digital volume of wired and wireless system input and output channels

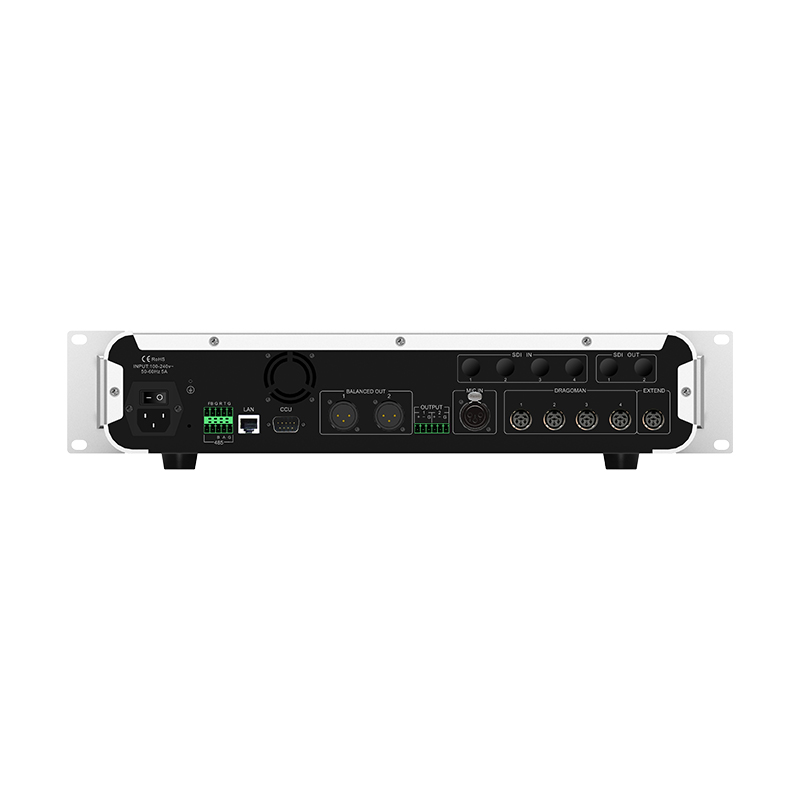

  • 4-way conference unit input and output ports, 2-way XLR audio output interfaces, and 2-way Phoenix terminal audio output interfaces, making the system expansion more flexible
  • Diverse software modules can realize three working modes, sign-in/voting, custom chairman unit, notification message, microphone flip, time setting, picture setting, camera tracking, central control and other functions. It is very forward-looking and can easily expand new functions in the future
  • Call linkage function, optional wireless bracelet, remotely notify the security personnel to provide services through LORA technology
  • Embedded camera intelligent tracking module, through compatible RS-485.RS-232 camera control protocol, realizes automatic camera switching tracking and completes camera automatic switching and control functions, can remotely control camera functions through software, and provides control protocol sharing at the same time, which can be linked to the lower computer central control equipment
  • Supports communication with the host management platform computer using TCP/IP protocol through the management computer to realize background control, expansion and cascading of the conference system
  • Supports the microphone host to automatically send the central control command function to link other third-party custom functions when the microphone is turned off
  • Supports customizing the chairman unit configuration function through the microphone host, and can temporarily define any unit as the chairman unit according to the needs of the site
  • Supports voting function, and can realize basic sign-in, response, election, voting, scoring and other functions with PC software
  • By configuring various types of conference equipment, it can meet the diverse needs of users
  • The system has an automatic repair function and supports hot plugging of lines
  • Supports fire alarm linkage trigger interface. After inputting 3.3-5V level, all conference units are closed and the venue is muted
    • Parameter
    Output frequency response 20Hz-20KHz
    Signal-to-noise ratio >102dB
    Dynamic range >106dB (1KHz)
    Total harmonic distortion ≤0.05%
    Power supply AC100-240V5A50-60Hz
    Maximum power consumption single machine 13W
    Audio input interface XLR*1
    Audio output interface XLR*2, Phoenix terminal*2
    RF power output ≤10dBm (reference value)
    Communication frequency band 660.05-685.05MHz
    Audio wireless transmission delay <5ms
    Modulation mode U segment
    Control interface RS232/RS485/RJ45 network port
    Unit interface large six-core DIN*4
    Fire alarm interface 1
    Color silver frosted
    Weight 5.26kg
    Chassis specifications 2U
    Dimensions (mm) length*width*height 483*360*100.5
