Streaming Server FT-2000A

The product is a versatile 2U standard cabinet designed for optimal compatibility with Windows Server 2012, featuring multiple connectivity options including HDMI, VGA, and USB interfaces. It supports advanced functions like Wake-on-LAN, automatic signal format conversion, and dual RJ45 Gigabit network ports for robust connectivity. Its hardware specifications include an Intel i5 CPU, 8GB memory, and a 128GB SSD, ensuring reliable performance for various applications.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Standard cabinet 2U height, supports Windows server 2012 server operating system, with excellent compatibility
  • Supports adaptive and WOL functions, enters sleep state or shutdown state, sends commands to its network card through the LAN device, wakes it up from sleep or shutdown state and turns it into power-on state
  • Supports automatic signal format conversion function, converts network data signal into digital signal, and automatically converts digital signal into network signal transmission
  • Supports one HDMI and one VGA signal output, supports adaptive projection resolution, and facilitates the display of multi-adaptive screens
  • Supports one HDMI signal input (embedded acquisition card), and the external signal broadcasts the screen to all conference terminals in real time through this interface and displays synchronously 6.. Two USB interfaces on the front panel are convenient for users to copy data and expand connected devices
  • Supports 1 set of 3.5MM high-fidelity audio input and output interfaces (L ine_ out, MIC_ in and L ine_ IN） 8.2 standard RJ45 Gigabit network ports, using RealtekRTL8111F network chip, supporting 10/100/1000Mbps

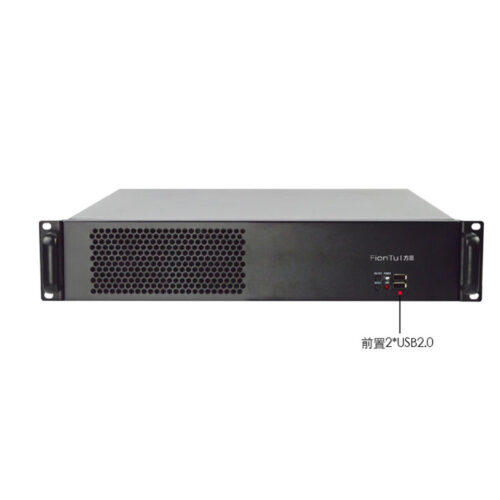

  • The front panel is equipped with power on and restart buttons, and status indicator lights, which can visually check whether the device is running normally, and quickly restart the device
  • 4 standard 7PinSATA interfaces (SATA4 reserved), supporting SATA3.0, SATA2.0 and SATA1.0
    • Parameter
    CPU i5
    Chipset IntelH81
    Memory 8G (supports dual-channel DDR31333/1600MHz memory, maximum support 16GB)
    Hard disk 128G solid state
    Network port standard RJ45 *2
    Graphics control Intel Haswell embedded GPU
    Display interface 1xVGA, VGA supports a maximum resolution of 1920x1200@60Hz; 1xHDMI, HDMI supports a maximum resolution of 4096x2304@24Hz
    Storage interface 2xSATA3.0, 2xSATA2.0

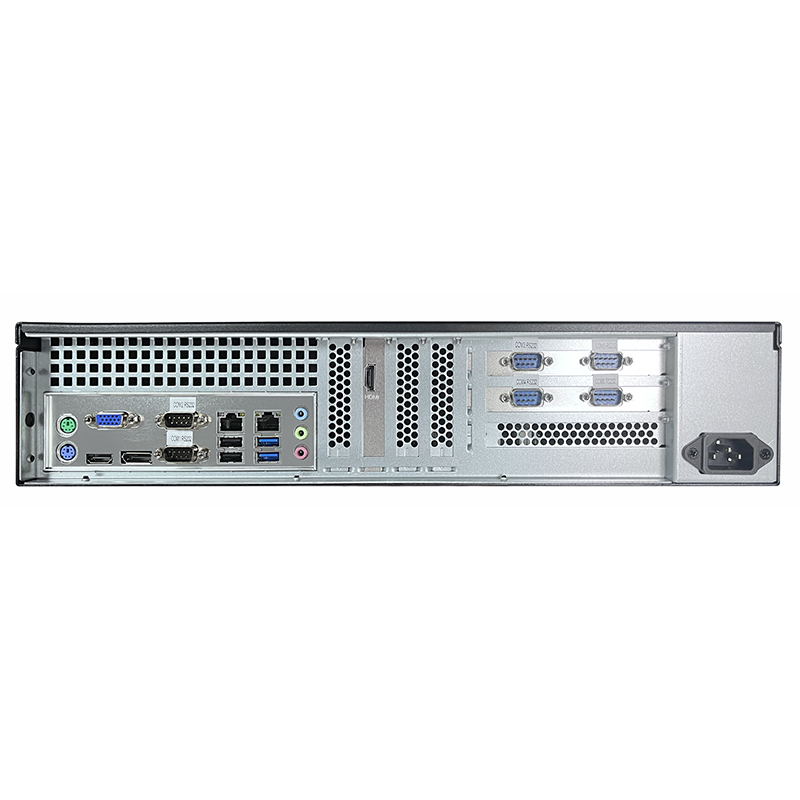

    USB interface front (2xUSB2.0) rear (2xUSB2.0, 2xUSB3.0)
    Serial port 4 COM port, supports RS422/485 mode
    GPI0 8-bit programmable digital 1/0 pin
    Expansion interface 1xPCleX16, 1xPCleX16 (actually X1 resource), 1xPCleX1, 4xPCI, 1xMiniPCle (built-in SIM, supports Wifi/3G/4G or mSATA optional)
    PS/2 1x rear PS/2 keyboard interface, 1x rear mouse interface
    Power supply type 24+4PinATX power supply
    Complete size 480mm (depth) * 430mm (width) * 89mm (height) (including ear hook)
    Power consumption 150W
    Donwload
    FT-2000A
