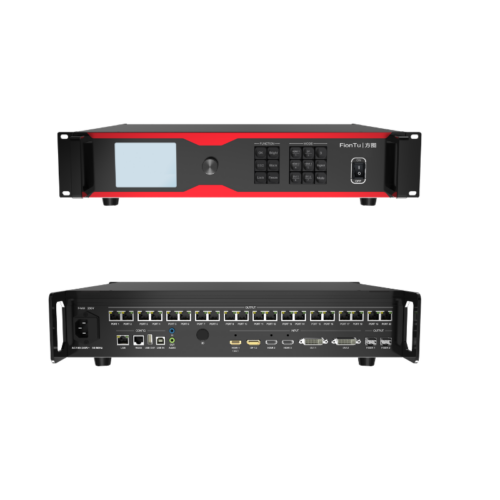

Synchronous Controller DS-VP-K20

The device features a 2U chassis with an LCD panel, supporting 6 video inputs (DP1.2, HDMI2.0/1.4, DVI) up to 4096×2160@60Hz. It offers 20 Gigabit Ethernet or 4 10 Gigabit optical outputs, with a maximum load of 13 million pixels. It includes USB 2.0, RS232, and LAN control, supports 6-screen display, and provides advanced video and audio adjustments. It also features HDCP, environmental monitoring, and operates at AC100-240V, 50/60Hz.
Categories:
Get Quote
Category
Description
  • 2U standard chassis

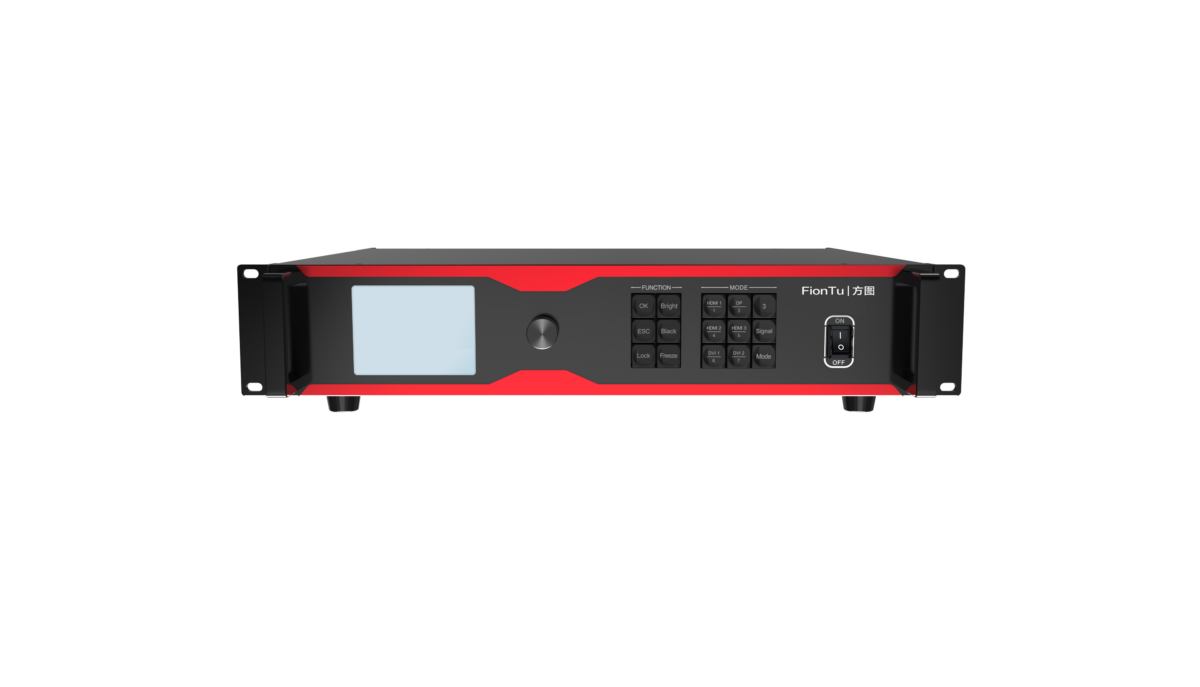

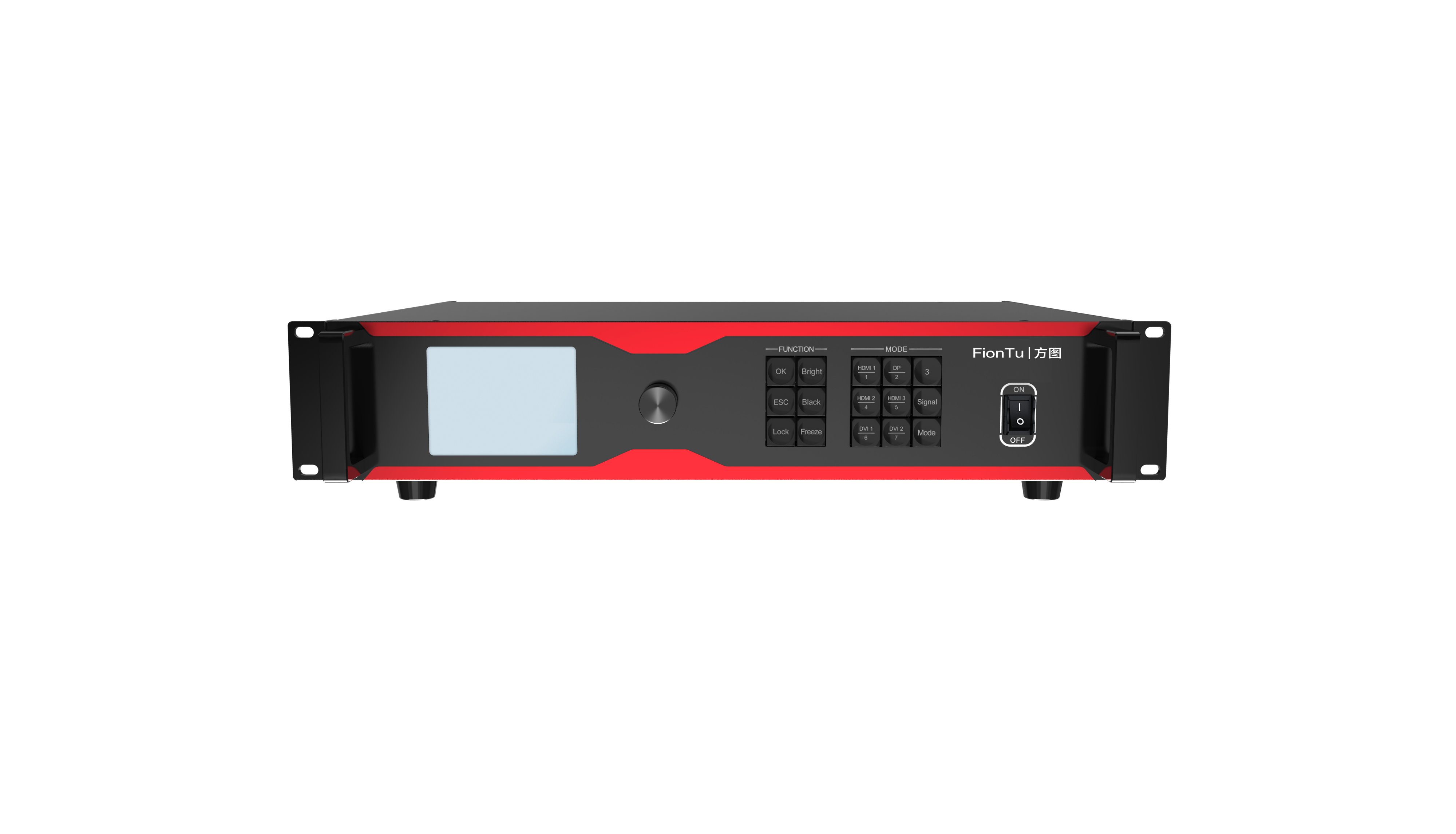

  • LCD panel and function shortcut buttons

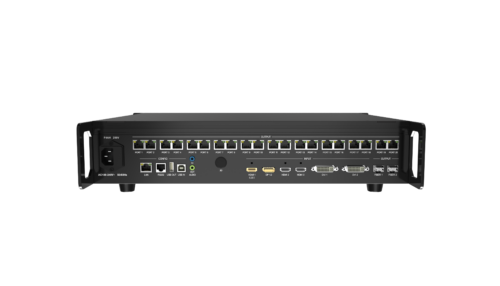

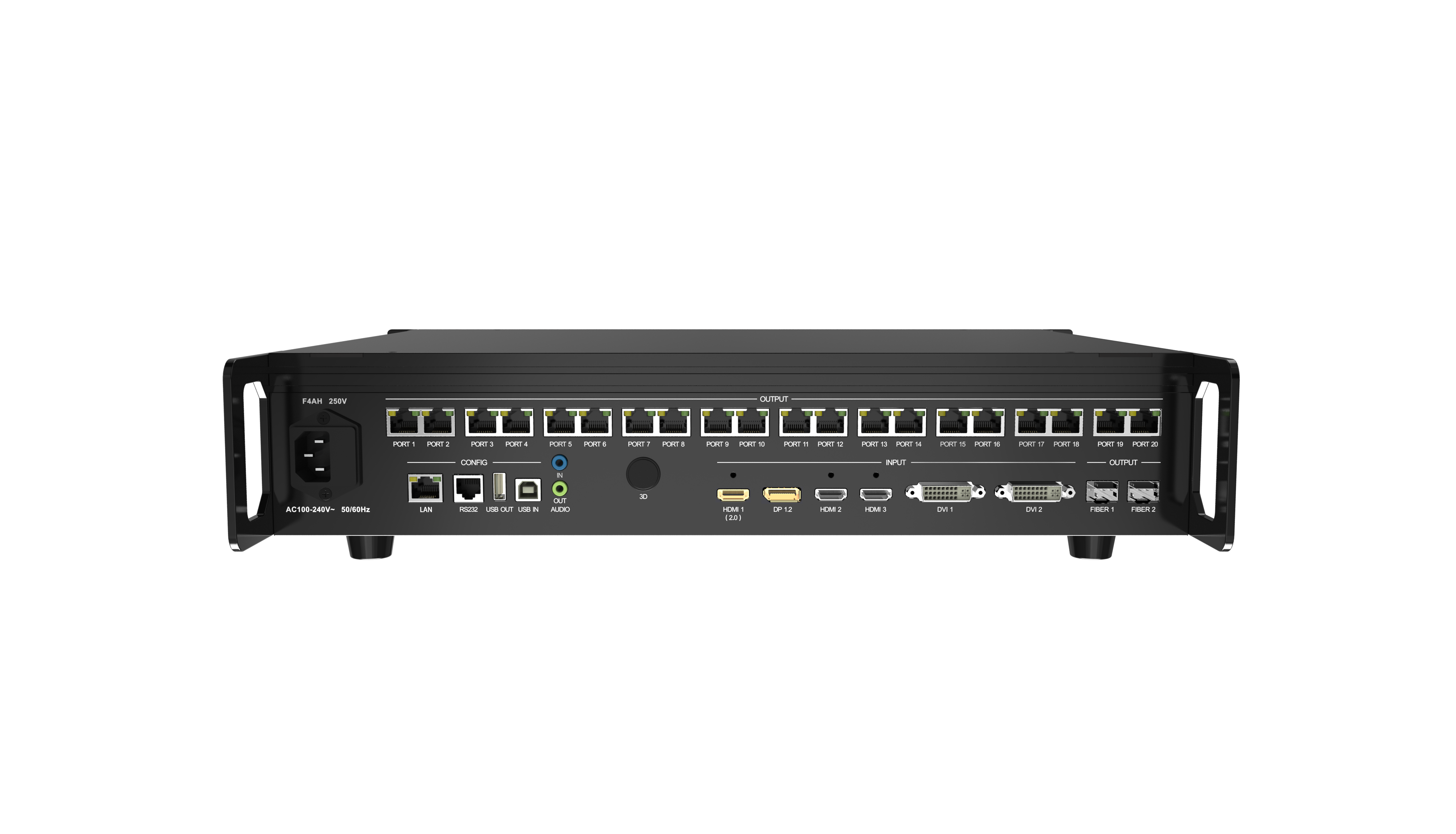

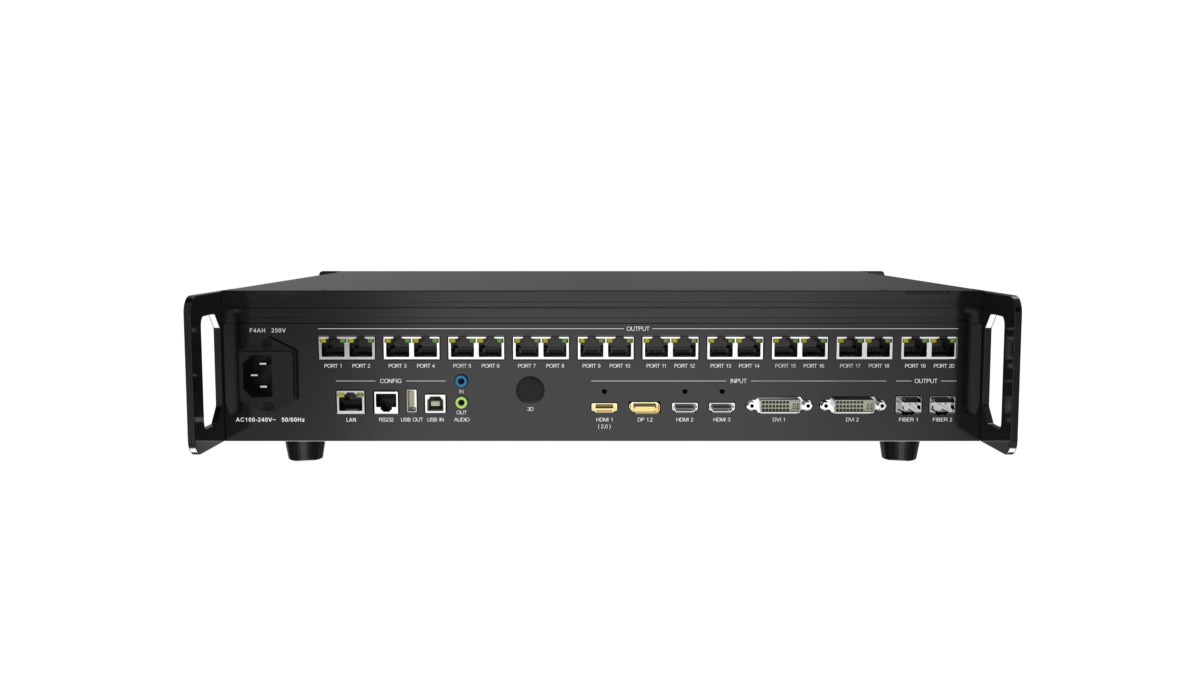

  •  Support 6 video inputs: 1 DP1.2, 1 HDMI2.0, 2 HDMI1.4, 2 DVI
  •  Support maximum video signal input: 4096×2160@60Hz
  •  20 Gigabit Ethernet outputs or 4 10 Gigabit optical fibers (2 main and 2 backup., support single or dual redundant backup
  • Maximum load of a single unit: 13 million pixels, maximum width 16384 pixels, or maximum 8192 pixels
  • Support dual USB 2.0 High-speed communication interface, used for computer direct connection debugging and multiple master control cascade debugging
  • Support brightness and color temperature adjustment
  •  Support picture adjustment: contrast, saturation, hue, brightness compensation
  •  Support 6-screen display, position and size can be adjusted freely
  •  Support 3.5mm audio independent input and output, HDMI/DP supports audio analysis
  •  Support arbitrary cropping, switching, and scaling of video signals
  • Support preset saving and calling of 16 scenes
  •  Support the function of limited conversion of signal source color dynamic range to full function (16~235)
  •  Support RS232 serial port protocol control
  •  Support APP control under LAN port
  • Support precise color management and adjust the color gamut of the display (with some receiving cards.)
  • Support video source synchronous phase lock technology, lock internal vsync, input signal source, automatic phase lock (phase lock according to layer）
  • Support optional processing of signal failure window output
  • Support low brightness and high gray, effectively ensuring complete grayscale display under low brightness
  •  Support high-bandwidth digital content protection technology of HDCP protocol
  •  Support real-time monitoring of the surrounding environment of the screen: automatic brightness, temperature and humidity, etc. (optional multi-function card, sensor）
  • Support 23.97/24/25/29.97/30/50/59.94/60/100/120Hz input frame rate adaptation
  •  Support a full range of conventional receiving cards and fiber optic transceivers
  • Support working voltage: AC100-240V, 50/60Hz
Parameter
Donwload
DS-VP-K20 Synchronous controller
