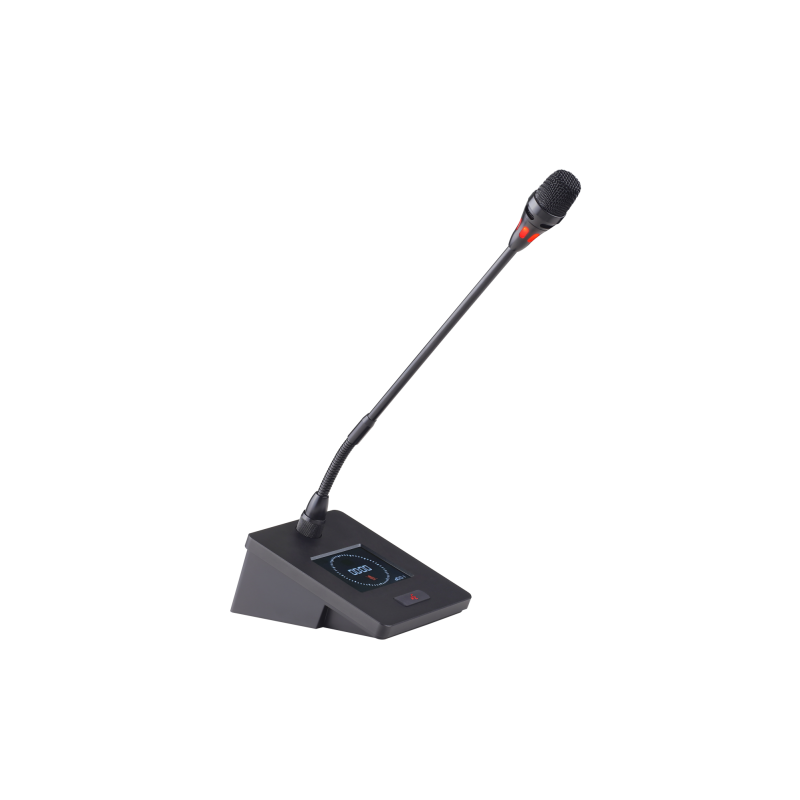

Wired Conference Delegate Unit KRP-F500D

1. High-end design with a 2.4-inch color LCD display for ID, time, and speaking status. 2. Professional microphone with anti-interference circuitry and LED indicators. 3. Powered by DC24V, suitable for passive device integration.
Categories:
Get Quote
Category Tags , , ,
Description
  • The overall high-end and solemn appearance, beautiful appearance design, in line with modern aesthetic standards
  • Professional high-fidelity capacitor 14mm microphone core, sensitive sound pickup, clear voice
  • Anti-interference circuit design, can prevent interference from mobile phones and other electronic products
  • The microphone has a speaking indicator light to display the unit speaking or off status
  • The unit is a passive device, powered by the system host, the voltage is DC24V, which is within the safe range
  • 2.4-inch TFT color LCD display can display ID addressing number, time, speaking timing and other information
  • Hand-in-hand connection mode, easy to install and maintain
    • Parameter
     Frequency response  20Hz-20KHz  Total harmonic distortion  <0.05%
     Sensitivity  -46 dBV/Pa  Signal-to-noise ratio  >80dB
     Equivalent noise  20 dBA (SPL)  Maximum sound pressure level  125 dB (THD<5%)
     Input impedance  2 kΩ  Directivity  cardioid
     Base size  100 width × 134 depth × 57 height mm (excluding shaft)
     Display  2.4-inch tft Color display; resolution 240x320
     Output wiring  comes with 1.1m eight-core female outlet
     Microphone rod size  220 length × 33 width × 25 height mm
    Donwload
    KRP-F500D
