| Feature | Details |

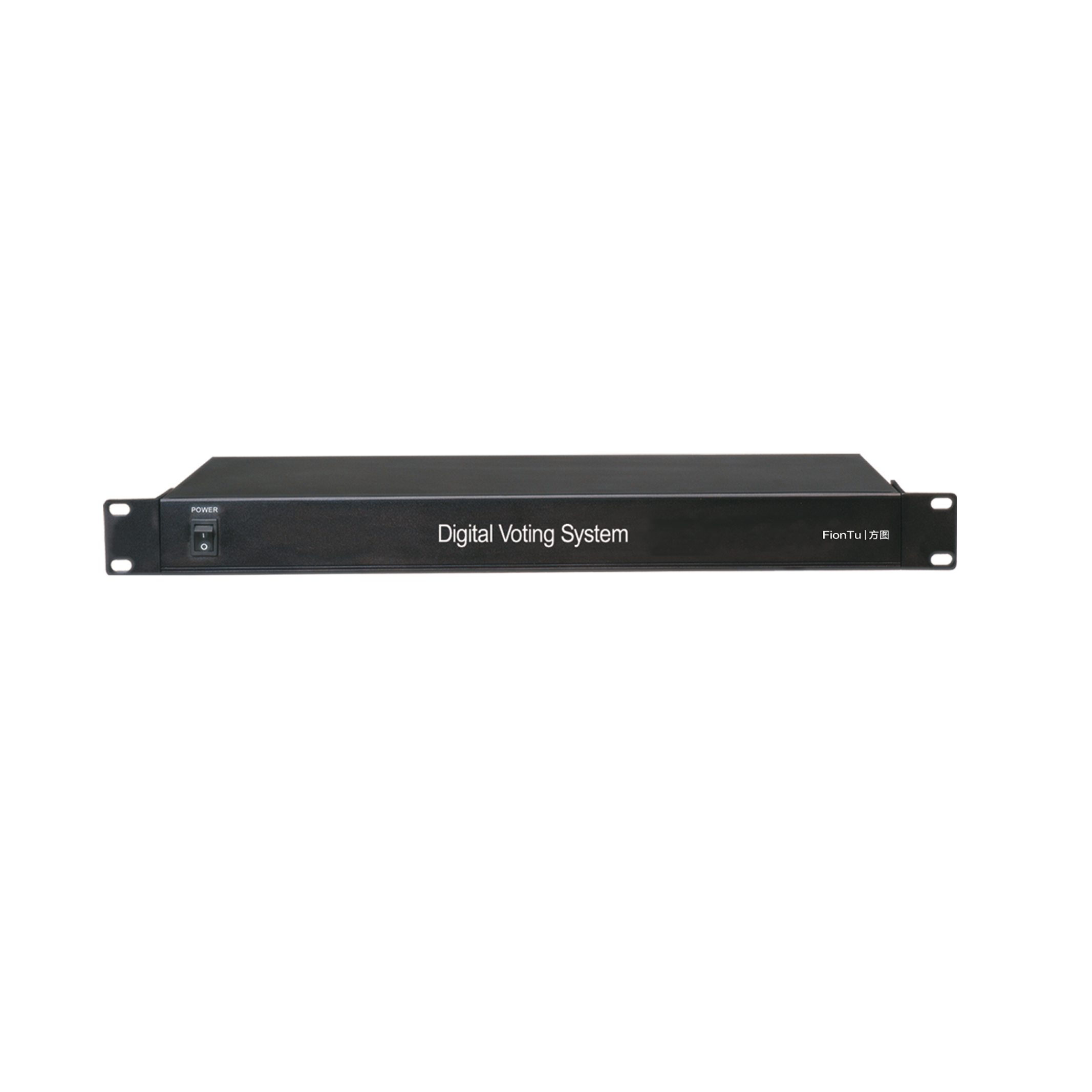

| Function | Used for collecting voting data and providing power to voting representative units. |
| Connectivity | Four sets of 8P-DIN connectors for multi-channel connections, with each host connecting up to 250 voting devices. |
| Cascading Capability | Multi-host cascading allows up to 10,000 voting devices in the system. |
| Application | Suitable for large, medium, and small conference settings. |
| Installation | Comes with a dedicated "T" type connection cable, easy to install and connect. |
| Specification | Details |
| Inputs/Outputs | 4 x 8P-DIN voting device connection ports (LINE I II), 1 x DB9 computer RS-232 interface, 2 x data interfaces (DATA I II), power input |
| Power Supply | AC 220V 50Hz |
| Power Consumption | 88W |
| External Dimensions | Length x Width x Height = 420 x 240 x 44 mm |
| Weight | 2.7 kg |
| Color | Black |
| Installation | 19-inch standard rack mountable |
