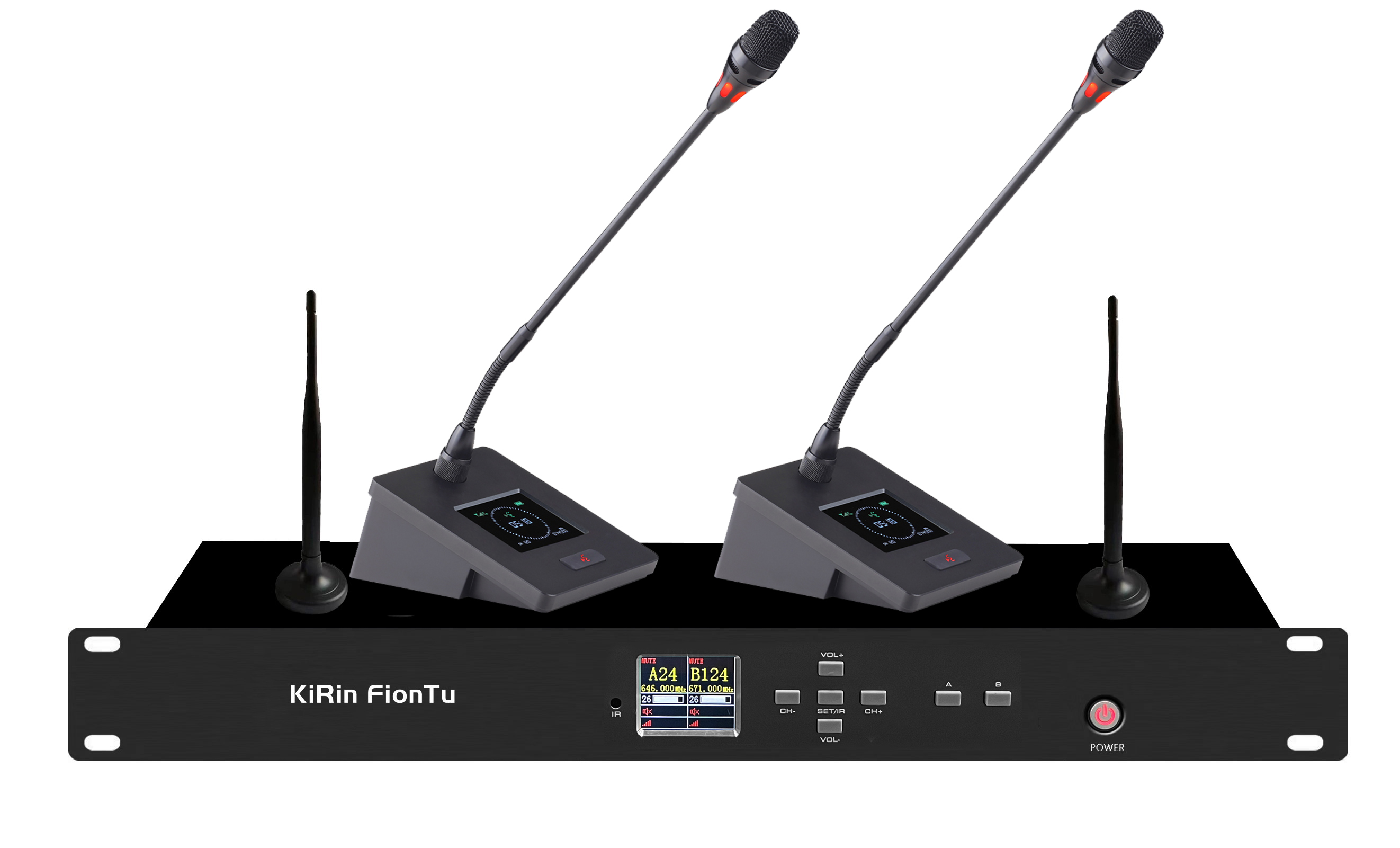

Wireless Conference Set 1-2 Gooseneck KRS-T302E

Key Features: 1. Receiver with a 1.8-inch TFT display, supporting 2 channels with real-time monitoring of signal, frequency, and battery. 2. Features diversity reception, dynamic random ID, and wireless frequency matching for stable, interference-free performance. 3. High-strength alloy microphone with supercardioid condenser core, offering 200 adjustable channels and up to 80m range.
Categories: , ,
Get Quote
Categories , , Tags , , , ,
Description
  1. The receiver uses a 1.8-inch TFT color display, which can display two channels, battery power, frequency, volume, audio level, signal strength, speaking status and other contents at a glance
  2. The receiver has a built-in button unlocking/locking function, and the howling suppression function can be turned on or off as needed
  3. The receiver has a built-in equalization function, which can choose direct, low-cut, high-cut, and user mode (13-band equalization. to adapt to more occasions
  4. The receiver uses diversity reception technology, and the CPU automatically selects the optimal signal to ensure that a stable signal is received to prevent frequency interruption
  5. Dynamic random ID is used to eliminate cross-frequency, and the receiver only receives the transmitter of the last frequency matching. Wireless frequency matching and frequency matching technology can easily achieve frequency matching without aligning the receiver
  6. The receiver has a built-in 50-group frequency grouping function, which effectively improves the installation efficiency of multiple sets used at the same time
  7. The microphone uses a high-strength alloy metal panel with a beautiful and atmospheric appearance
Parameter
Receiver technical parameters:
Working frequency  640-690MHz Channel  2*100 channels adjustable
Comprehensive signal-to-noise ratio  85dB Comprehensive distortion  0.5%
Frequency response  50Hz-18KHz (±3dB) Antenna  1.2m magnetic antenna*2; BNC
Usage distance  up to 50-80m Modulation mode  broadband FM
Frequency stability  ±0.001% Dynamic range  90dB
Sensitivity  -95dBm Peak frequency deviation  ±45KHz
Power supply  DC 12V 600mA
Output socket  1-way MIX OUT6.35 mixed output; 2-way BAL OUT independent output
Dimensions  480mm wide * 160mm deep * 45mm high (without antenna)
Technical parameters of transmitter
Channel 200 channels Channel spacing  125KHz
Bandwidth 50MHz Harmonic suppression 55dBc
Spurious suppression -60dB Harmonic radiation -65dBm
Frequency stability ±0.005% Maximum deviation ±45KHz
Microphone core 14mm capacitor microphone core, supercardioid directivity
Base size 110mm wide * 140mm deep * 60mm high
2.8-inch color display can display frequency, channel, battery level, speech timer
Battery used  3 AA batteries (compatible with AA rechargeable batteries)
Microphone rod size 360mm long, microphone head diameter 26mm
Donwload
KRS-T302E
