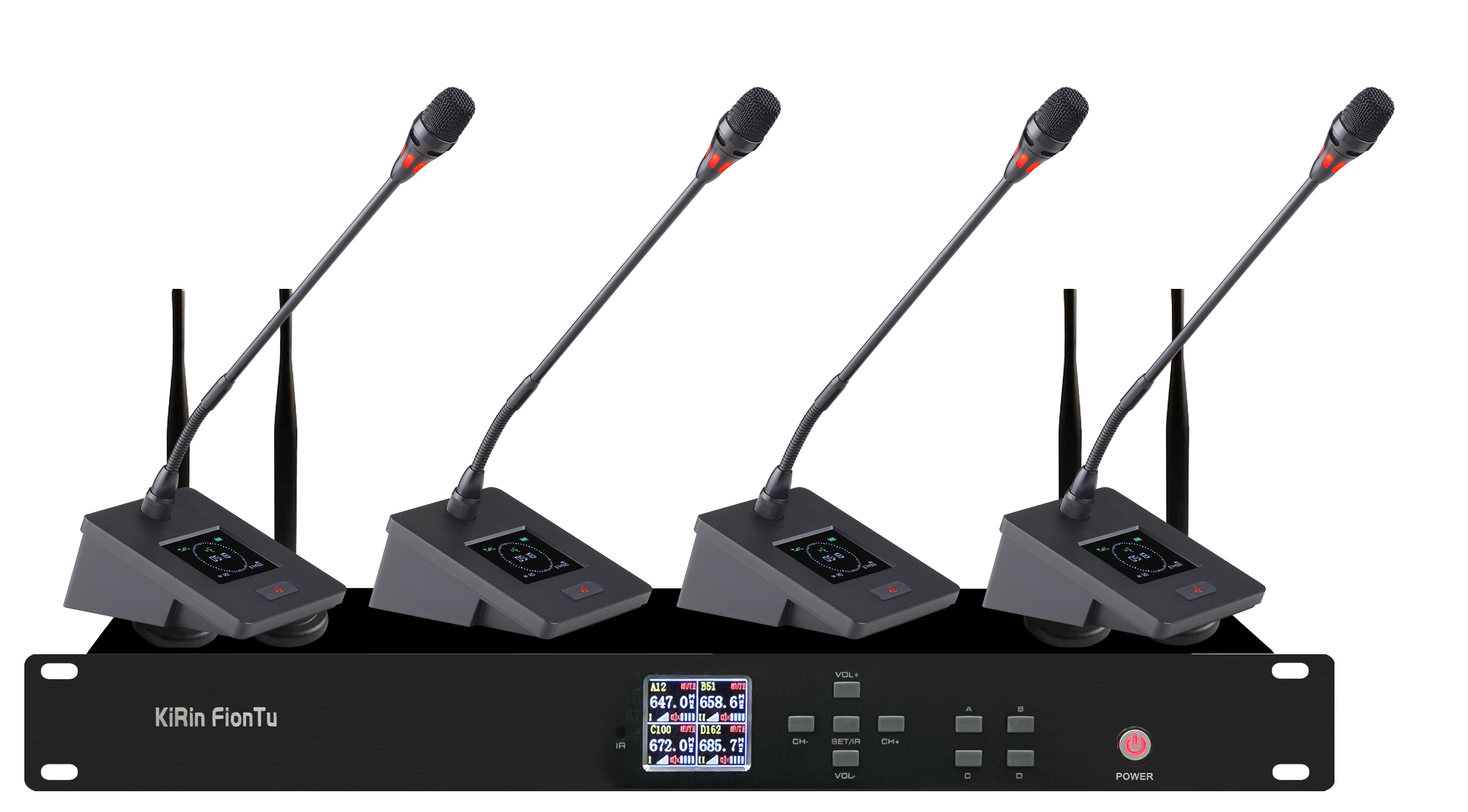

Wireless Conference Set 1-4 Gooseneck KRS-T304E

Key Features: 1. Receiver with a 1.8-inch TFT display supporting 4 channels and real-time monitoring of signal, frequency, and battery. 2. Features diversity reception, dynamic random ID, and wireless frequency matching for seamless operation and stable performance. 3. High-strength alloy microphone with supercardioid condenser core, offering 200 adjustable channels and up to 80m range.
Categories: , ,
Get Quote
Categories , , Tags , , , ,
Description
  1. The receiver uses a 1.8-inch TFT color display, which can display four channels, battery power, frequency, volume, audio level, signal strength, speaking status and other contents at a glance
  2. The receiver has a built-in button unlocking/locking function, and the howling suppression function can be turned on or off as needed
  3. The receiver has a built-in equalization function, and can choose direct, low-cut, high-cut, and user mode (13-band equalization. to adapt to more occasions
  4. The receiver uses diversity reception technology, and the CPU automatically selects the optimal signal to ensure that a stable signal is received to prevent frequency interruption
  5. Dynamic random ID is used to eliminate cross-frequency, and the receiver only receives the last transmitter to be matched. Wireless frequency matching and frequency matching technology can easily achieve frequency matching without aligning the receiver
  6. The receiver has a built-in 4-group frequency grouping function, which effectively improves the installation efficiency of multiple sets used at the same time
  7. The microphone uses a high-strength alloy metal panel with a beautiful and atmospheric appearance
Parameter
Receiver technical parameters:
Working frequency  640-690MHz Channel  4*50 channels adjustable
Comprehensive signal-to-noise ratio  85dB Comprehensive distortion  0.5%
Frequency response  50Hz-18KHz (±3dB) Antenna  1.2m magnetic antenna*4; BNC
Usage distance  up to 50-80 meters Modulation mode  broadband FM
Frequency stability  ±0.001% Dynamic range  90dB
Sensitivity  -95dBm Peak frequency deviation  ±45KHz
Power supply  DC 12V 1A
Output socket  1 MIX OUT6.35 mixed output, 4 BAL OUT independent output, 1 BAL OUT mixed output
Dimensions  480mm wide * 160mm deep * 45mm high (without antenna)
Technical parameters of transmitter
Channe 200 channels Spurious suppression -60dB
Bandwidth 50MHz Harmonic suppression 55dBc
Harmonic radiation -65dBm Frequency stability ±0.005%
Channel spacing 125KHz Maximum deviation ±45KHz
Battery used 360mm long, microphone head diameter 26mm
2.8-inch color display Can display frequency, channel, battery level, speech timer
Base size  110mm wide * 140mm deep * 60mm high
Microphone core 14mm capacitor microphone core, supercardioid directivity
Microphone rod size  3 AA batteries (compatible with AA rechargeable batteries)
Donwload
KRS-T304E
