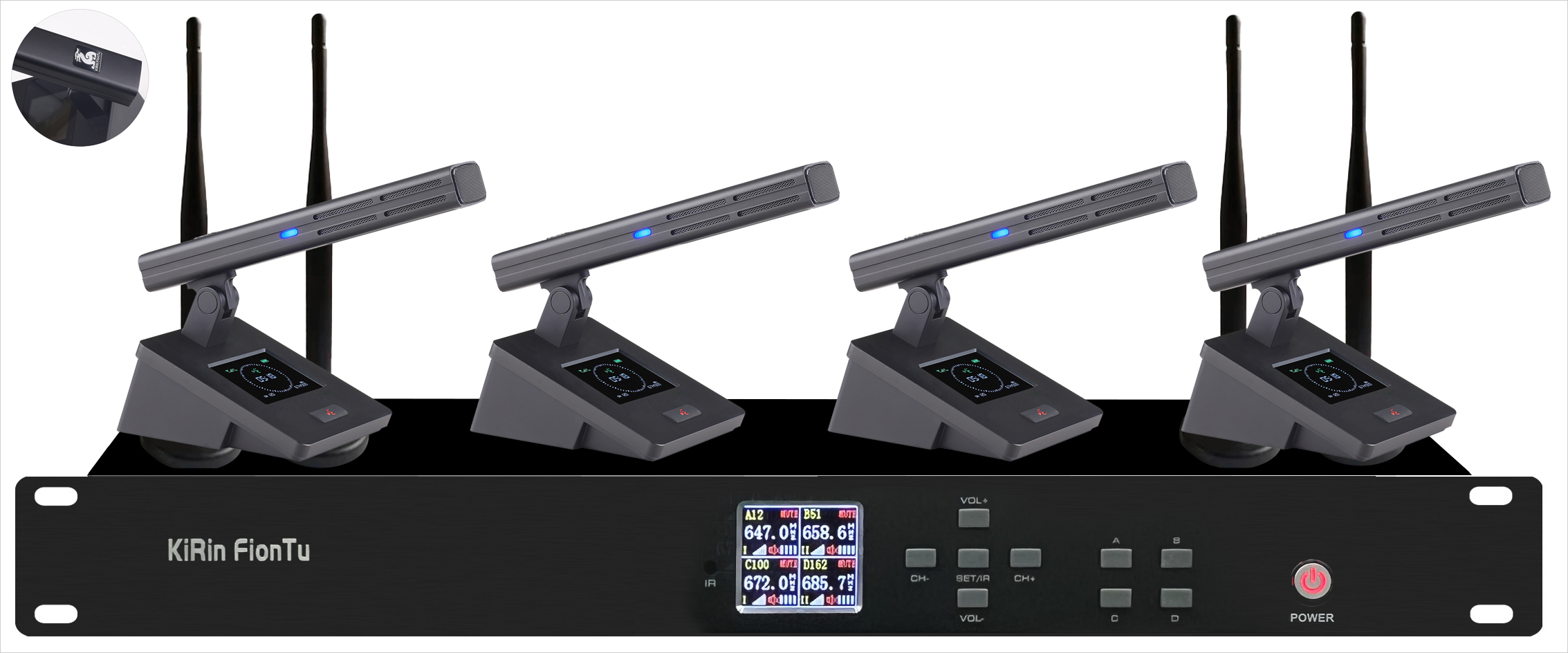

Wireless conference set 1-4 square poles KRS-T314F

Key Features: 1. Receiver with a 1.8-inch TFT display, supporting 4 channels, signal strength, frequency, and battery monitoring. 2. Features diversity reception, dynamic ID, and automatic signal selection for stable performance across multiple units. 3. High-quality microphone with a supercardioid condenser core, offering 200 adjustable channels and up to 80m range.
Categories: , ,
Get Quote
Categories , , Tags , , , ,
Description
  1. The receiver uses a 1.8-inch TFT color display, which can display four channels, battery power, frequency, volume, audio level, signal strength, speaking status and other contents at a glance
  2. The receiver has a built-in button unlocking/locking function, and the howling suppression function can be turned on or off as needed
  3. The receiver has a built-in equalization function, which can choose direct, low-cut, high-cut, and user mode (13-band equalization. to adapt to more occasions
  4. The receiver adopts diversity reception technology, and the CPU automatically selects the optimal signal to ensure that a stable signal is received to prevent frequency interruption
  5. Dynamic random ID is used to eliminate cross-frequency, and the receiver only receives the transmitter of the last frequency matching. Wireless frequency matching and frequency matching technology can easily achieve frequency matching without aligning the receiver
  6. The receiver has a built-in 4-group frequency grouping function, which effectively improves the installation efficiency of multiple sets used at the same time
  7. The microphone adopts a high-strength alloy metal panel, the microphone tube adopts a short square tube with a length of 230mm, and the tail adopts a delicate metal label, which has a stronger sense of luxury and a beautiful appearance
Parameter
Receiver technical parameters:
Working frequency  640-690MHz Channel  4*50 channels adjustable
Comprehensive signal-to-noise ratio  85dB Comprehensive distortion  0.5%
Frequency response  50Hz-18KHz (±3dB) Antenna  1.2m magnetic antenna*4; BNC
Usage distance  up to 50-80 meters Modulation mode  broadband FM
Frequency stability  ±0.001% Dynamic range  90dB
Sensitivity  -95dBm Peak frequency deviation  ±45KHz
Power supply  DC 12V 1A
Dimensions  480mm wide * 160mm deep * 45mm high (without antenna)
Output socket  1 MIX OUT6.35 mixed output, 4 BAL OUT independent output, 1 BAL OUT mixed output
Technical parameters of transmitter
Channel 200 channels Channel spacing 125KHz
Maximum deviation ±45KHz Spurious suppression -60dB
Bandwidth 50MHz Harmonic suppression 55dBc
Frequency stability ±0.005% Harmonic radiation -65dBm
2.8-inch color display can display frequency, channel, battery power, speech timer
Battery used 3 AA batteries (compatible with AA rechargeable batteries)
base widt 110*depth 140*height 60mm (without shaft)
Microphone core 14mm condenser microphone core, supercardioid directivity
Dimensions Microphone rod length 230*width 37*height 26mm; base width
Donwload
KRS-T314F
Get Quote
