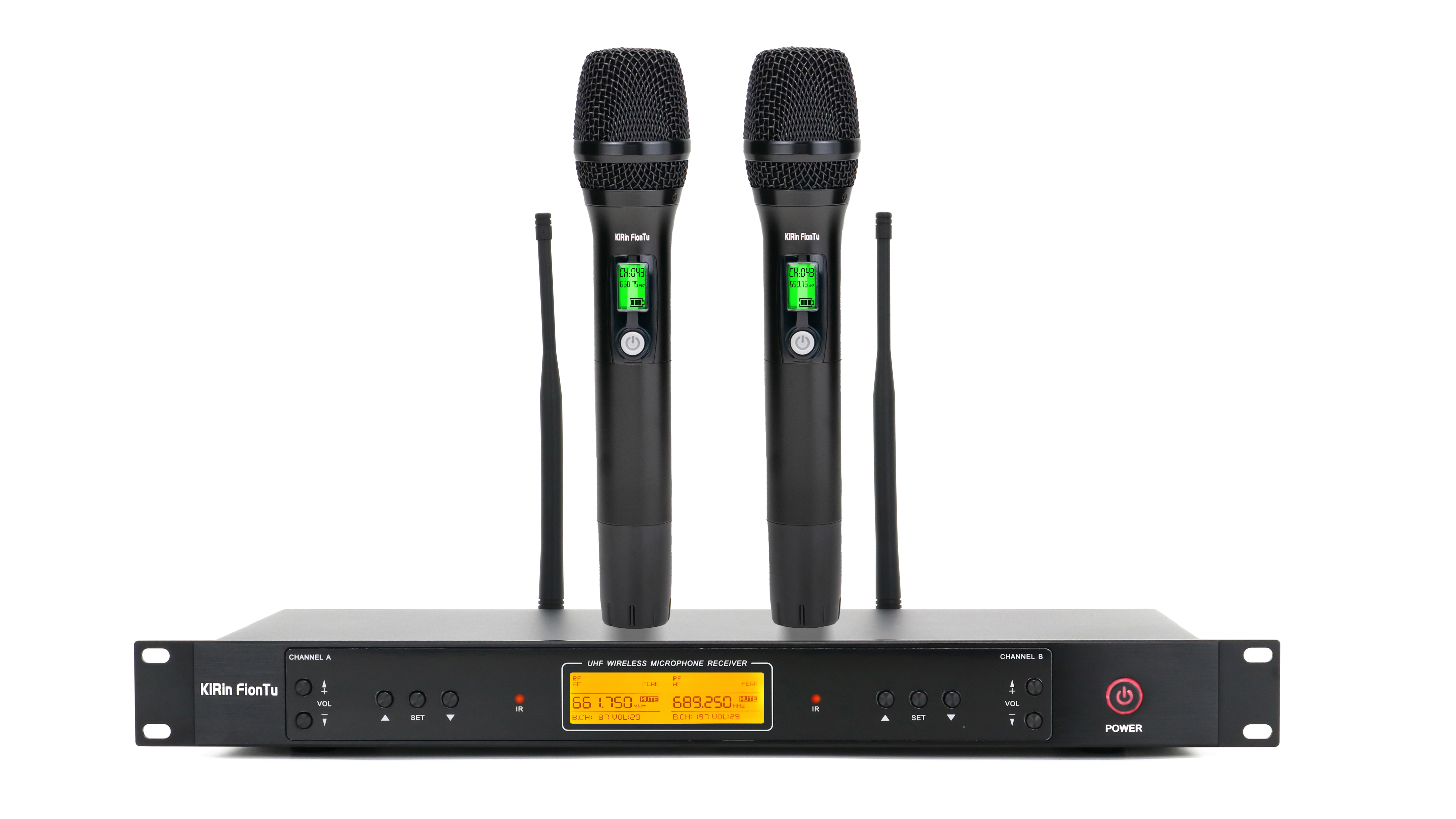

Wireless Handheld Microphone 1-2 G3-WH201

Key Features: 1. Adjustable U-band frequency for flexible use, with 200 channels and infrared frequency matching. 2. High-definition display shows frequency, channel, signal status, and battery life. 3. Handheld transmitter with ergonomic design, PLL phase-locked loop oscillation, and up to 60m range.
Categories: , ,
Get Quote
Categories , , Tags , , , ,
Description
  1. Adopt U-band adjustable frequency solution to improve the flexibility of use
  2. Adopt UHF high-performance integrated circuit design, stable and reliable
  3. Visual high-definition screen display, which can display working frequency, channel, battery power, RF/AF signal and other contents
  4. Metal hand-held texture, ergonomic design, streamlined appearance processing, better fit the hand curve, comfortable grip
  5. Each channel has the function of independent manual selection of spectrum frequency points
  6. One-key infrared frequency setting, multiple transmitters can be selected and interchanged, simple operation
  7. Digital frequency locking technology, super anti-interference ability
Parameter
Receiver Parameter indicators:
 RF range  640.00-690.00MHZ  Bandwidth  30MHz per channel
 Modulation mode  FM frequency modulation  Frequency matching mode Infrared  automatic frequency matching
 Number of channels  200 channels  Noise suppression mode  automatic noise detection and digital ID Code noise
 Deviation  45KHz  Dynamic range  110dB
 Frequency response  60Hz-18KHz  Antenna interface  BNC/50Ω*2
 Output interface  1 unbalanced φ6.35mm interface; 2 independent balanced XLR interfaces  Power supply  DC 12V 600mA
Dimensions (length*depth*height) 420*180*45mm (excluding ear hooks and antennas)
Transmitter Parameter indicators:
 Head  dynamic handheld  LCD display  channel, frequency, power
 Oscillation mode  PLL Phase-locked loop  Output power  3dBm-10dBm (LO/H conversion)
 Battery current  <100mA (HF), <80mA (LF)  Working voltage  3V (AA alkaline battery × 2)
 Operating distance  about 60 meters
Donwload
G3-WH201
