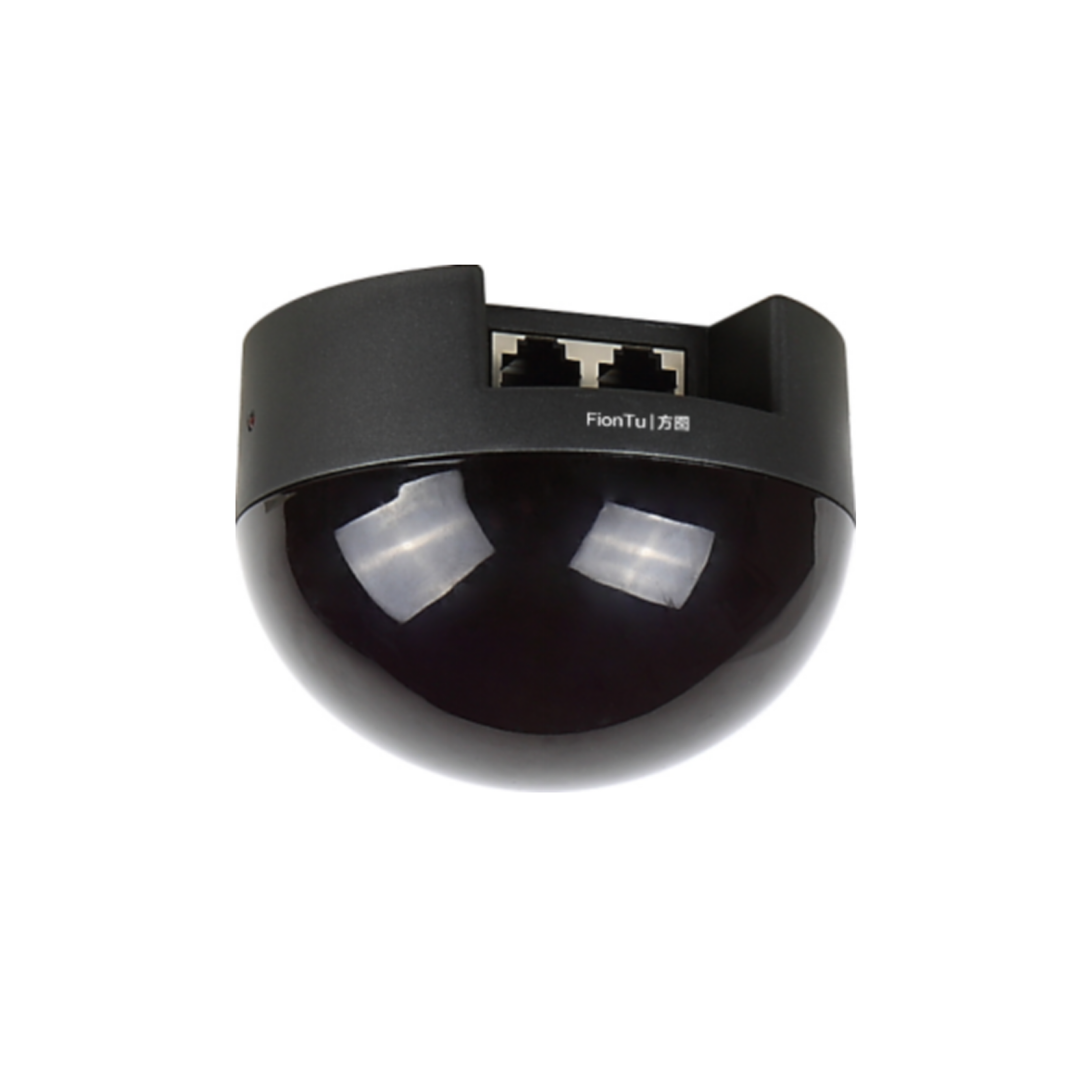

Wireless transmission base station FT-V8800J

The wireless transmitting base station enables data communication between the wireless voting machines and the main control system, supporting up to 1500 voting machines. It has a communication radius of 100 meters and can be connected in a cascade of up to 8 base stations. It operates with a 9-24V DC power supply and features a communication rate of 1M bps with the host and 100K bps with the voting machines.
Categories:
Get Quote
Category Tags , , , ,
Description
Parameter
Specification Details
Function Responsible for data communication between wireless voting devices and the wireless digital voting main controller.
Signal Transmission Transmits voting start or end signals to wireless voting devices.
Connection Connected to the wireless digital voting main controller via Ethernet cable.
Installation Installed on the ceiling of the venue.
Transmitting Radius 100 meters per transceiver unit.
Cascading Can cascade up to 8 base stations via daisy-chain connection.
Maximum Number of Voting Devices 1500 devices
Communication Speed with Main Controller 1 Mbps
Communication Speed with Voting Devices 100 Kbps
Wireless Transmitting Power 10dBm ± 1dBm
Wireless Receiving Sensitivity -90 dBm
Interface Two RJ45 interfaces
Power Supply 9-24V DC
Power Consumption 0.8W
Dimensions (mm) φ98mm
Weight 170g
